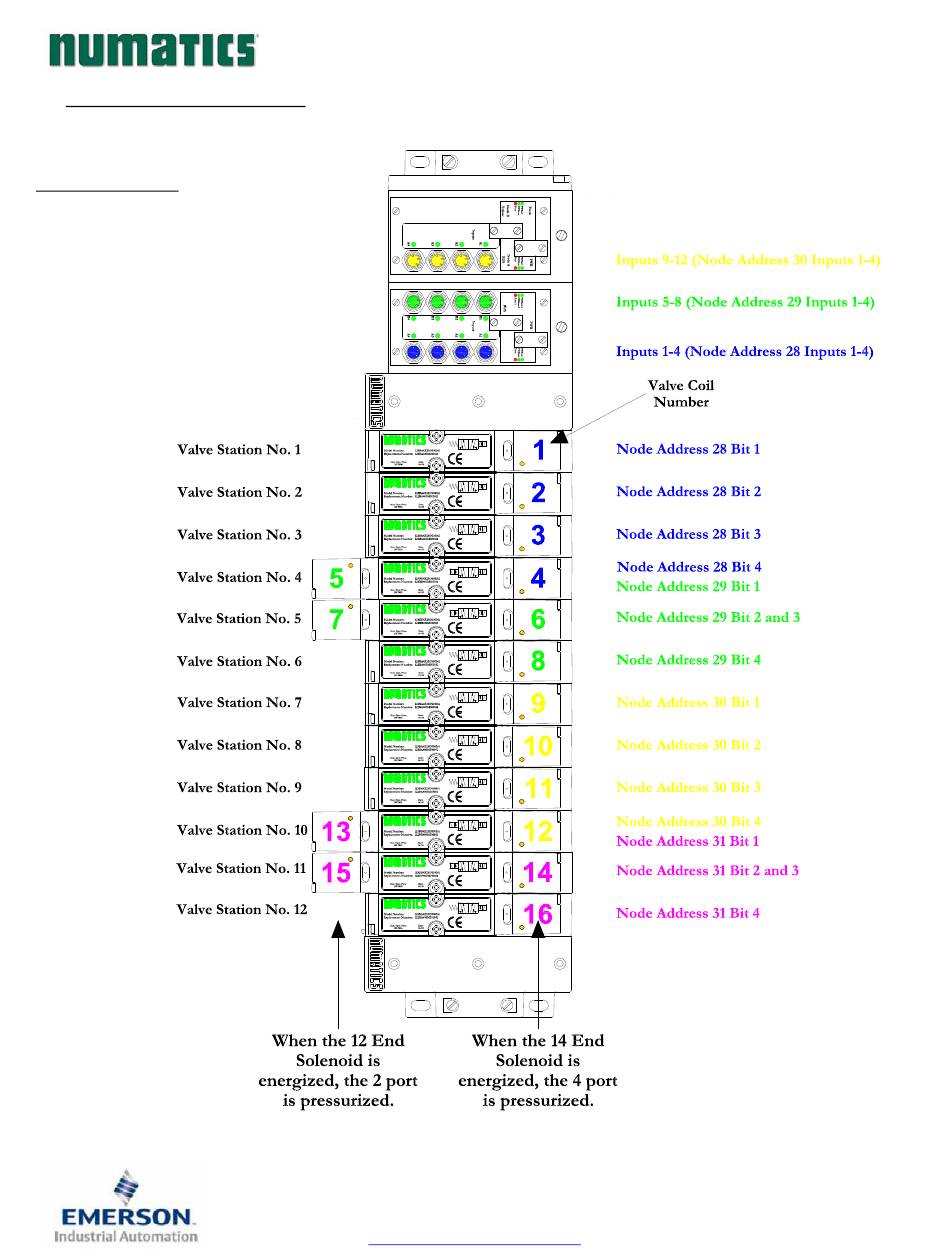

4) I/O Mapping Example
Example:
Assumed Settings
- Single Z-Boards™ are used with single
solenoid valves
- Double Z-Boards™ are used with double
solenoid valves
- Node is configured to use addresses
28, 29, 30 and 31 on an AS-i network
(16 Outputs and 12 Inputs total).
- Node uses standard addressing.
G2-2 Series AS-i Quick Start Manual
3835051 TDG22ASQS1-4
Subject to change without notice
www.numatics.com/fieldbus
9/06
Page 5
