Escea DF Series Quick Start Manual

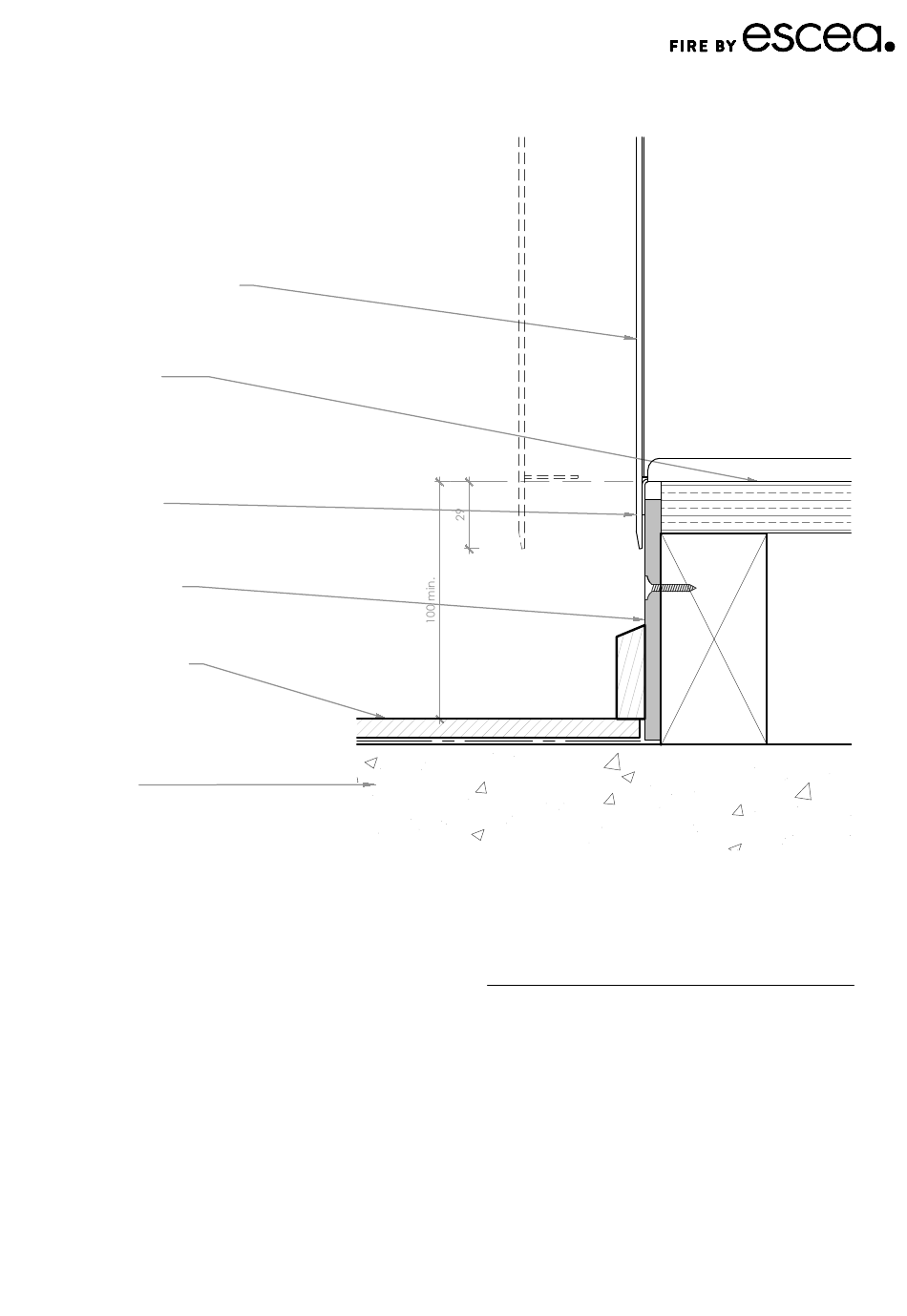

DF Series Combustible Floor Detail

Some design scenarios may expose materials to 80° C or above. Unprotected exposure to heat may be detrimental to the appearance or
long term performance of a material. Specifier's and installers must ensure that materials used are suitable for the intended project.

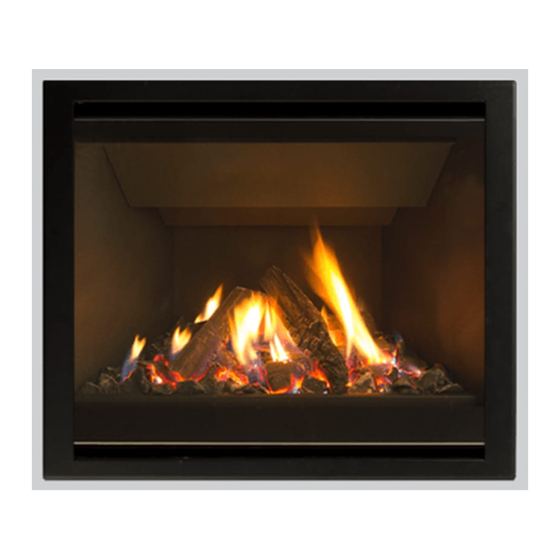

Escea DF Series Gas Fire with
Slim Fascia shown
solid continuous
base - can be a
combustible material
fascia overhang
standard wall lining
combustible flooring
existing floor

Notes:

All dimensions are in mm.
·
· This detail is to assist in the installation of a DF700, DF960 or DF990 Gas Fireplace with a combustible or heat sensitive floor
or finish in front of the fireplace.
· Powdercoated fascia's can be easily damaged - handle with care.
· Give consideration to the overhang of the fascia when setting up the fire - base of the appliance must be at least 30mm
above the any adjacent horizontal non-combustible and heat resistant surface.
This technical sheet must be read in conjunction with the Escea DF Series Installation Manual, the latest version can be
·
found on our website at www.escea.com .
Contact the ESCEA Architectural Advisory Team for assistance with the specification of this fire - aa@escea.com
Escea_DF_Finish_Hearth.dwg
GENERAL CONSTRUCTION AND FINISHES SHOWN INDICATIVE ONLY
Combustible Floor Detail
scale 1:2
16.11.2022
