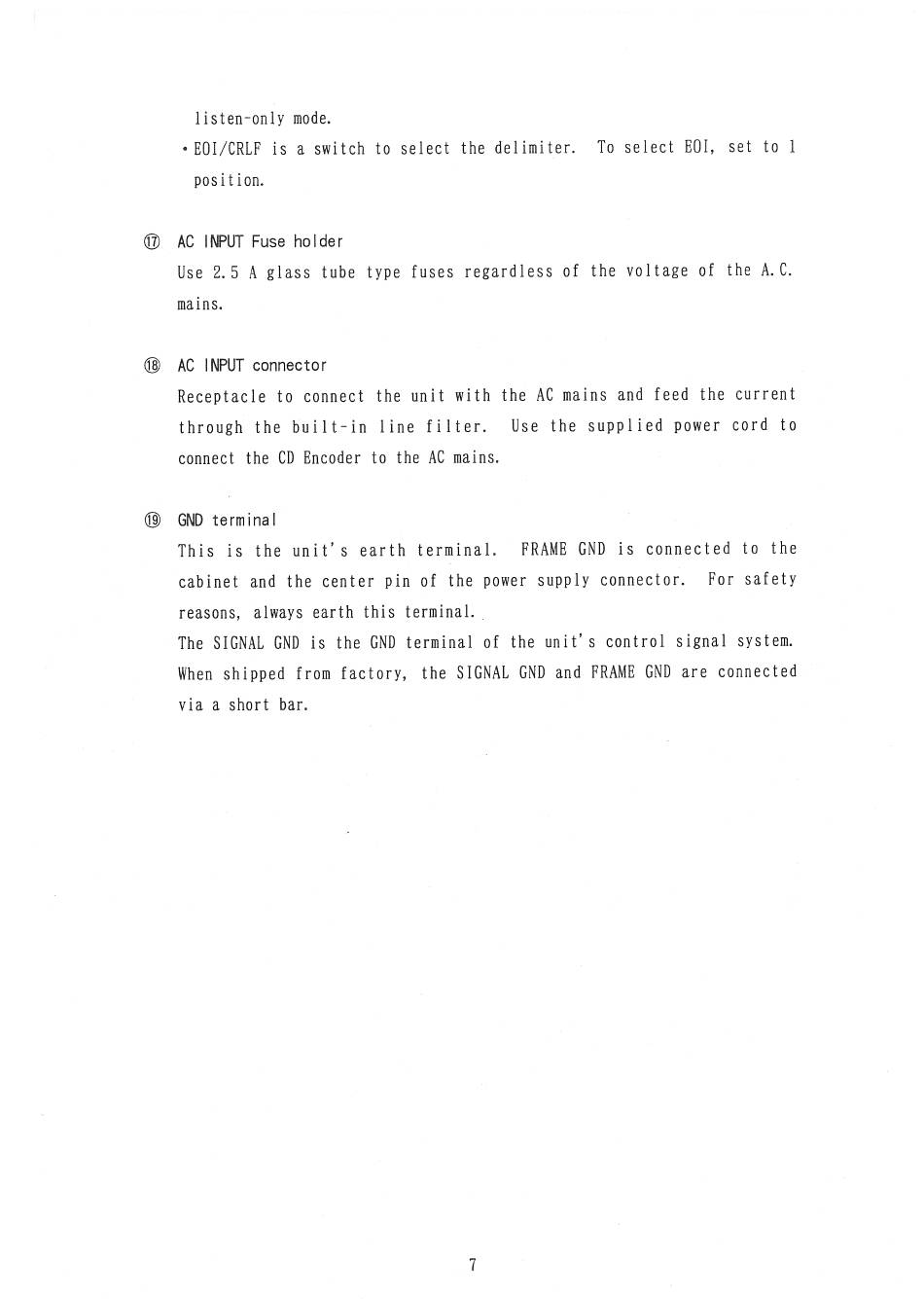

Kenwood DA-7000A Instruction Manual page 9

listen-only mode.
• EOI/CRLF i s a switch to select the d e l i m i t e r .
position.
© AC INPUT Fuse holder
Use 2. 5 A g l a s s tube type fuses r e g a r d l e s s of the voltage of the A. C.
mains.
@ AC INPUT connector
Receptacle to connect the unit w i t h the AC mains and feed the current
through the bui 1 t - i n
connect the CD Encoder to the AC mains.
® GND terminal
T h i s i s the u n i t ' s e a r t h t e r m i n a l .
cabinet and the center p i n of the power supply connector.
reasons, always earth t h i s terminal. .
The SIGNAL GND i s the GND terminal of the u n i t ' s control s i g n a l system.
When shipped from f a c t o r y , the SIGNAL GND and FRAME GND are connected
v i a a short bar.
1 ine f i l t e r . Use the suppl ied power cord to
FRAME GND i s connected to the
7
To s e l e c t EOI, set to 1
For s a f e t y
