Mounting and operating instruction
Z-PA.SDL.1 WLAN adapter
Programming device
for HMG10P/PMG10P series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HUBNER BERLIN Z-PA.SDL.1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Baumer HUBNER BERLIN Z-PA.SDL.1

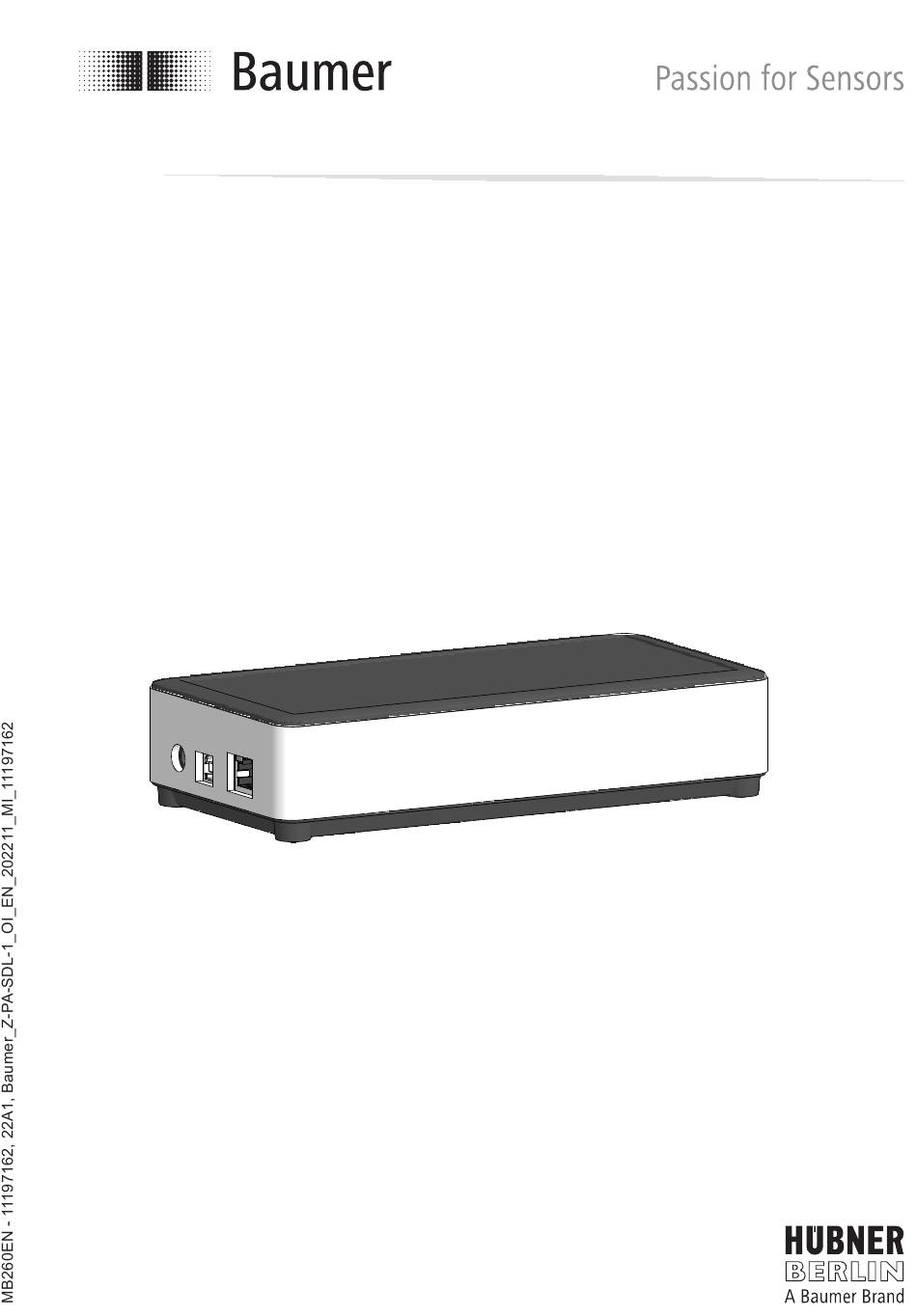

  • Page 1 Mounting and operating instruction Z-PA.SDL.1 WLAN adapter Programming device for HMG10P/PMG10P series...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS 1. IMPORTANT NOTES �����������������������������������������������������������������������������������������������������������1 1�1 Symbol guide ������������������������������������������������������������������������������������������������������������������1 1�2 Intended use �������������������������������������������������������������������������������������������������������������������1 1�3 Exclusion from liability ����������������������������������������������������������������������������������������������������1 1�4 Maintenance and service life ������������������������������������������������������������������������������������������2 1�5 Approvals and warranty ��������������������������������������������������������������������������������������������������2 1�6 Storage temperature �������������������������������������������������������������������������������������������������������2 1�7 Disposal (environmental protection) �������������������������������������������������������������������������������2 2.
  • Page 3 TABLE OF CONTENTS 5. SYSTEM SETTINGS ����������������������������������������������������������������������������������������������������������15 5�1 Settings: Language and units ���������������������������������������������������������������������������������������15 5�2 Service Access �������������������������������������������������������������������������������������������������������������15 5�3 System ��������������������������������������������������������������������������������������������������������������������������16 5.3.1 Network settings (LAN) �����������������������������������������������������������������������������������17 5�3�2 Wireless LAN settings �������������������������������������������������������������������������������������18 5�3�3 System control ������������������������������������������������������������������������������������������������19 5�4 Firmware update �����������������������������������������������������������������������������������������������������������19 6. CONFIGURATION ��������������������������������������������������������������������������������������������������������������20 6�1 Changing the encoder parameters �������������������������������������������������������������������������������20 6�2 Parameter download ����������������������������������������������������������������������������������������������������21 6�3 Monitoring the encoder �������������������������������������������������������������������������������������������������21 7.
  • Page 4: Important Notes

    IMPORTANT NOTES IMPORTANT NOTES Symbol guide Warning Disregarding could result in serious injury, death or damage to property Atttention Disregarding could result in damage to property or damage/malfunction of the pro- gramming device Information Additional information and recommendations Intended use The Z-PA�SDL�1 WLAN adapter is a programming device for programming HMG10P/ PMG10P series encoders�...
  • Page 5: 1�4 Maintenance And Service Life

    If necessary, Baumer gives customers the opportunity to dispose of Baumer products professionally� For further information see www�baumer�com� This instruction is also stored in the device and available at baumer�sensor/manual�pdf� MB260EN - 11197162, 22A1, Baumer_Z-PA-SDL-1_OI_EN_202211_MI_11197162 2/25...
  • Page 6: Safety And Attention Instructions

    SAFETy AND ATTENTION INSTRUCTIONS SAFETY AND ATTENTION INSTRUCTIONS Safety instructions Risk of serious injuries due to rotating shafts Hair and clothes may become tangled in rotating shafts� Touching the rotating parts can cause extremely serious injuries� » For all connections to HMG10P/PMG10P series encoders, switch off all voltage supplies and shut down machines and ensure that they cannot be switched on again by third parties�...
  • Page 7: Functionality

    FUNCTIONALITy FUNCTIONALITY The Z-PA�SDL�1 WLAN adapter is a programming device for programming HMG10P/ PMG10P series encoders� The following encoder parameters can be parameterized (depending on the version of the encoder)� To do this, you need to register as „ADMIN“, see section 5.2: •...
  • Page 8: Preparation

    PREPARATION / REqUIRED ACCESSORy FOR CONNECTION (NOT INCLUDED IN SCOPE OF DELIVER PREPARATION Scope of delivery Z-PA�SDL�1 WLAN adapter Power supply with adapter plug for different countries Required accessory for connection (not included in scope of delivery) Adapter cable with D-SUB connector (male) for connection to encoders of HMG10/ PMG10 series to the programming device, different versions: 4.2.1 For HMG10P/PMG10P with flange connector/s...
  • Page 9: For Hmg10P/Pmg10P With Ssi Terminal Box

    PREPARATION / REqUIRED ACCESSORy FOR CONNECTION (NOT INCLUDED IN SCOPE OF DELIVERy) 4.2.2 For HMG10P/PMG10P with SSI terminal box For the ONLINE mode, see 4.6.2, the connecting terminal can be removed section and the cable ends SA and SB can be connected directly to the connecting terminals of the encoder or connected to the existing cable ends (customer installation) in the machine/plant control cabinet�...
  • Page 10: For Hmg10P/Pmg10P With Bus Connecting Box

    PREPARATION / REqUIRED ACCESSORy FOR CONNECTION (NOT INCLUDED IN SCOPE OF DELIVER 4.2.3 For HMG10P/PMG10P with bus connecting box For the ONLINE mode, see 4.6.2, the connecting terminal can be removed section and the cable ends SA and SB can be connected directly to the connecting terminals of the encoder or connected to the existing cable ends (customer installation) in the machine/plant control cabinet�...
  • Page 11: 4�3 Connection To The Encoder

    PREPARATION / CONNECTION TO THE ENCODER Connection to the encoder Risk of serious injuries When connecting the programming device to the encoder, make sure that all machi- nes connected to the encoder are stopped and cannot be switched on again by third parties. Always keep a sufficient distance from rotating shafts while programming the encoder� Use only the supplied power supply unit to power the programming device� »...
  • Page 12: 4�4 Assignment D-Sub Connector (Female) Of The Programming Device

    PREPARATION / RESET BUTTON Assignment D-SUB connector (female) of the programming device Assignment SSI CLOCK+ SSI CLOCK- SSI DATA+ SSI DATA- Analog Do not use Do not use Encoder supply SA (RS485+) SB (RS485-) Do not use CAN HIGH CAN LOW RESET button The RESET button can be used to shut down, restart or reset the programming device to the factory settings�...
  • Page 13: 4�6 Operating Modes

    PREPARATION / OPERATING MODES Operating modes The programming device can be used between encoder and machine control (ONLINE) or can be connected autonomously only with one encoder (OFFLINE)� When used autonomously, an external power supply is provided via the programming device�...
  • Page 14: Online Mode

    PREPARATION / OPERATING MODES 4.6.2 ONLINE mode Use cases for the ONLINE mode are monitoring, diagnosis and parameterization of an encoder in its machine or plant application� The encoder is built into a machine or system, see Fig.2� The voltage supply of the encoder is provided by the machine/plant control�...
  • Page 15: Establishing The First Network Connection To The Programming Device

    PREPARATION / ESTABLISHING THE FIRST NETWORK CONNECTION TO THE PROGRAMMING DEVICE Establishing the first network connection to the programming device To be able to program the connected encoder via web browser, a network connection with the programming device must be established� All devices with a web browser (PC, smartphone, tablet���) that are wireless LAN-capable (Wi-Fi) or have an Ethernet interface can be connected�...
  • Page 16: Wireless Lan Connection

    The programming device serves as an access point� » Open wireless (Wi-Fi) connection manager� » Select and connect the wireless LAN-SSID „Baumer� Sensor� xxxx“� » Enter the password� The wireless LAN-SSID and password are printed on the type label of the pro-...
  • Page 17: 4�8 Connection Via Web Browser To The Programming Device

    If a network connection to the programming device has been established, see section 4.7, it can be accessed directly via a web browser� » Open web browser » Visit the „http://baumer�sensor“ website (alternatively, the IP address „10.0.0.1“ can also be entered in the address field) The „Connection“ window for connecting the connected encoder opens, see Fig.5� » With the „connect automatically“ function the programming device identifies the connected encoder and establishes a connection, see Fig.6�...
  • Page 18: System Settings

    SySTEM SETTINGS / SERVICE ACCESS SYSTEM SETTINGS Settings: Language and units By default, the language and the unit system is the same as the browser settings and can be changed to „German/English“ or „Metric/Imperial“� Fig.7: Window „Settings“ Service Access By default, the user „CUSTOMER“ is always logged in� To parameterize the encoder, the user „ADMIN“...
  • Page 19: 5�3 System

    SySTEM SETTINGS / SySTEM System Various system settings such as network settings, wireless settings and system status settings can be made in the „System“ window� Fig.9: Window „System“ MB260EN - 11197162, 22A1, Baumer_Z-PA-SDL-1_OI_EN_202211_MI_11197162 16/25...
  • Page 20: Network Settings (Lan)

    SySTEM SETTINGS / SySTEM 5.3.1 Network settings (LAN) Adjustment of a wired network connection. Possible connections are: • Network cable connected directly to a PC (P2P) Here the programming device serves as DHCP server� • Network cable connected to a network with DHCP server (infrastructure or ma- nual). For the infrastructure connection, the network provides a DHCP server and transfers the IP address and settings to the programming device� The manual connection can be used to make the settings yourself. If the programming device is connected to a network with DHCP server, the de- vice must be logged on to the same network for configuration (PC, smartphone, tablet)� The switch for the wired network mode, see Fig.11, switches between direct connection to a PC (P2P) and connection via a network with DHCP (Infrastruc- ture/Manual) server�...
  • Page 21: Wireless Lan Settings

    SySTEM SETTINGS / SySTEM 5.3.2 Wireless LAN settings To adjust the wireless LAN settings such as: mode, SSID, password and security level� Possible connections are: • Programming device serves as an access point, see section 4.7� • Programming device is logged on to a network. The wireless LAN router serves as a DHCP server and transfers the IP address and settings to the programming device�...
  • Page 22: System Control

    SySTEM SETTINGS / FIRMWARE UPDATE 5.3.3 System control The programming device can be restarted or shut down here� you can also reset the instrument to factory settings� If the programming device is reset to factory settings, all previously stored data will be lost�...
  • Page 23: Configuration

    CONFIGURATION CONFIGURATION Changing the encoder parameters The parameters of the encoder can be changed in the „Parameterization“ window� Pos- sible settings are: Incremental parameter: Additional output 1 and 2 (number of pulses per revolution) SSI absolute parameter: Resolution singleturn (SSI), resolution multiturn (SSI), binary or gray code (SSI) Speed switch: Deactivation and activation switching speed The parameterization of the encoder is protected by a password and requires an...
  • Page 24: 6�2 Parameter Download

    CONFIGURATION Parameter download In the „Diagnostics“ window, the encoder parameters for further processing and docu- mentation can be downloaded� Fig.16: Window „Diagnostics“ Monitoring the encoder The monitoring function visualizes actual encoder signals such as position, speed and temperature� Monitoring is non-interfering with the communication between the encoder and the cont- roller�...
  • Page 25: Dimension

    DIMENSION DIMENSION View A View B Status LED RESET a → D-SUB connector (female) 15-pin, encoder connection b → Switch network mode c → Connection power supply d → USB B interface (currently without function) e → Ethernet interface RJ45 MB260EN - 11197162, 22A1, Baumer_Z-PA-SDL-1_OI_EN_202211_MI_11197162 22/25...
  • Page 26: Technical Data

    360 g LICENCES Baumer uses open source software which is licensed by the copyright holders, among others, the free licenses GNU General Public Licence (GLP Version2, GPL Version3) and GNU Lesser General Public Licence (LGPL), MIT License, zLib License, and licenses deri- ved from the BSD License�...
  • Page 27: Table Of Figures

    TABLE OF FIGURES TABLE OF FIGURES Fig�1 Connection programming device in OFFLINE mode ���������������������������10 Fig�2 Connection programming device in ONLINE mode �����������������������������11 Fig.3 „Switch network mode“ ������������������������������������������������������������������������12 Fig�4 Establishment of a wireless LAN connection with Windows operating system 13 Fig�5 Window „Connection“ ���������������������������������������������������������������������������14 Fig�6 Window „Connection“, Programming device is connected ������������������14 Fig�7 Window „Settings“...
  • Page 28 Baumer Germany GmbH & Co. KG Bodenseeallee 7 DE-78333 Stockach www.baumer.com MB260EN - 11197162, 22A1 (01�11�2022), Baumer_Z-PA-SDL-1_OI_EN_202211_MI_11197162...
