SP8serial programmer

manual

Shenzhen Shuofei Technology Co., Ltd.

SOFI TECHNOLOGY CO.,LTD.

TEL: 0755 - 8486 7757

FAX: 0755 - 8486 7941

WEB:http://www.sofi-tech.com/

Publication Release Date: 2018-07

Revision B4

Description: This manual applies toFlyPROsoftwareV4.40or above

Before using the programmer, please read this manual carefully, and operate the programmer correctly as required. Failure to operate the programmer as required will result in damage to the

programmer and no warranty service!

Table of Contents

Need help?

Do you have a question about the SP8 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Sofi SP8 Series

Page 1 Translated from Chinese (Simplified) to English - www.onlinedoctranslator.com Sofei Technology SP8serial programmer manual Shenzhen Shuofei Technology Co., Ltd. SOFI TECHNOLOGY CO.,LTD. TEL: 0755 - 8486 7757 FAX: 0755 - 8486 7941 WEB:http://www.sofi-tech.com/ Publication Release Date: 2018-07 Revision B4 Description: This manual applies toFlyPROsoftwareV4.40or above Before using the programmer, please read this manual carefully, and operate the programmer correctly as required.
Page 2: Table Of Contents
Sofei Technology SP8 series programmer target record product description-------------------------------------------------- -------------------------------------------------- --------------------- Chapter One Features------------------------------------------------ -------------------------------------------------- ----------------------- SP8Series function comparison table --------------------------------------------- -------------------------------------------------- -------- programmer hardware-------------------------------------------------- -------------------------------------------------- ------------------5 Chapter two quick to use-------------------------------------------------- -------------------------------------------------- ---------------------7 Offline third chapter burning-------------------------------------------------- -------------------------------------------------- ---------------------11 Download...
Page 3: Features
Sofei Technology SP8 series programmer Chapter 1 Product Introduction Features ⚫ USBPower supply and communication without external power supply. Small size, easy to carry. ⚫ Specifically designed for serial memory, it is faster and more stable than general-purpose programmers.
Page 4: Function Comparison Table
Sofei Technology SP8 series programmer SP8Series function comparison table SP8-FX SP8-F SP8-B SP8-A Product number: 512Mb 512Mb(online)/128Mb(offline) Support chip maximum capacity(Note1) 3.3V/5V Support chip voltage Offline burning 128Mb Built-in memory (save offline data) Y(Automatic detection of chip placement/removal) Online mass production...

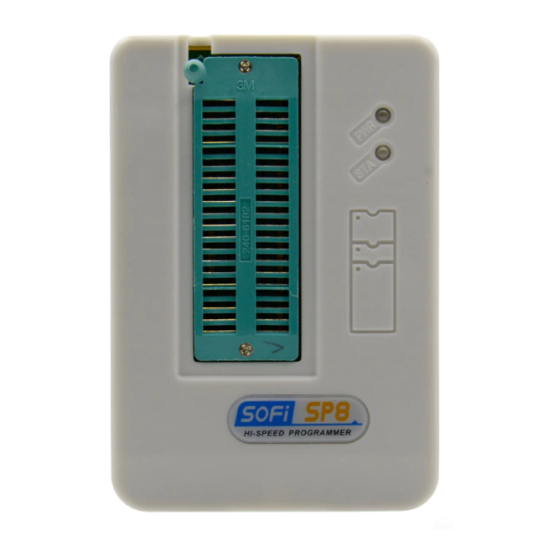

Page 5 Sofei Technology SP8 series programmer Chapter 2 Programmer Hardware Lock seat Power Indicator (PWR) Status Indicator (STA) USB interface ISP/ATE interface ⚫ Lock seat Used to place chips (including chip adapters/adapters). Please do not operate the chip that has been soldered on the circuit board through the connection method on the locking seat. The peripheral circuit on the board will cause the operation to fail, and the programmer will be damaged in severe cases.
Page 6 Sofei Technology SP8 series programmer Power Indicator(PWR) ⚫ Indicates the power supply status, and the red light indicates that the power supply is normal (SP8The programmer directly usesUSBinterface power supply); red flashing indicates that the programmer has detected a short circuit of the chip or excessive current.
Page 7 Sofei Technology SP8 series programmer Chapter 3 Quick Use This chapter explains ShuofeiSP8series programmerFlyPROThe basic operation steps are suitable for users who use this programmer for the first time. Corresponding product model:SP8-A, SP8-B, SP8-F, SP8-FX. 1.useUSBConnect the programmer to the computer. turn onFlyPROsoftware. After the software is started, the programmer hardware will be automatically connected.
Page 8 Sofei Technology SP8 series programmer 4.Load the burn file , or the menu【File】-【Load File】to carry out the data file to be burned. Click the toolbar button 5.Set Action Options Click the toolbar button , or the menu【Operation】-【Operation Options】to set the chip programming.
Page 9 Sofei Technology SP8 series programmer ⚫ automatic mode In the command bar on the left side of the main window of the software, select the "automatic operation" page, the automatic operation page has2There are two types, namely simple setting and advanced setting, which are determined according to different product types.
Page 10 Sofei Technology SP8 series programmer Wait for the chip to be removed illustrate ⚫ Production mode is only available forSP8-B / SP8-F / SP8-FX.SP8-AThe mass production burning function is not supported. ⚫ The above operations are just to demonstrate the conventional programming method of general chips, for reference only. The specific operation needs to be determined according to the user's needs.
Page 11: Offline Data
Sofei Technology SP8 series programmer Chapter 4 Offline Programming SP8-F,SP8-FXSupport offline programming, in the offline mode, the programmer does not need to connect to the computer. Programmer built-in128MbitData storage, no additional storage device required. The offline function has the characteristics of simple use and high burning efficiency. When the programmer works in the offline mode, it will automatically detect the chip placement, start the programming work, and prompt the programming result through the status indicator and built-in buzzer.
Page 12: Offline Working Mode Status Indicator
Sofei Technology SP8 series programmer run offline Manual way ‒ The offline operation steps of the programmer are as follows: 1.Power the programmer with the power adapter that came with the product. 2.After the programmer is powered on, the internal offline data will be checked first to verify the integrity and accuracy of the data.
Page 13: Offline Data View
Sofei Technology SP8 series programmer Offline data viewing Offline data that has been downloaded to the programmer can beFlyPROsoftware to view. Click the menu [Chip] - [Offline Data Management] - [View Offline Data] to open the offline data viewing dialog box, as shown in the following figure:...
Page 14 Sofei Technology SP8 series programmer chapter FiveISPMode burning ISPfull nameIn System Program, that is, online programming.ISPThe programming mode only needs to connect a few signal lines to the relevant pins of the on-board chip to realize the read and write operations of the chip, which can avoid the trouble of desoldering the chip.
Page 15: Chip Connection
Sofei Technology SP8 series programmer target chip connection Common25series and93seriesFLASH/EEPROMThe connection diagram is as follows typical25seriesFLASHConnection Diagram typical93seriesEEPROMConnection Diagram The connection method will be different for different chips. For the detailed connection information of the chip, please refer toFlyPROOpen the chip information in the software for viewing.
Page 16: Power Mode
Sofei Technology SP8 series programmer ISPPower Mode ISPDuring programming, the target chip has two power supply modes to choose from. power supply mode can beFlyPROset in the operating options of the software. ⚫ powered by programmer That is, the programmer provides voltage to the target board, and the power supply voltage is3.3Vor5V(existFlyPROset in the operating options of the software). In this mode, if the programmer detects that the target board power supply already exists, it will give a power supply conflict error message.
Page 17 Sofei Technology SP8 series programmer Appendix I Frequently Asked Questions ☺ whytwenty fourSerial chip does not have erase function The chip is based onEEPROMtechnology, chip data can be directly rewritten without pre-erasing, so no erase operation is available. ◼...
Page 18 Sofei Technology SP8 series programmer ☺ The programmed chip is soldered to the upper part of the product and cannot run, but it can be re-programmed after soldering it down. Is it because the programmer did not program the chip correctly? During the final test of the product, it is found that the data in some chips is wrong/or lost/or empty chips.
Page 19 Sofei Technology SP8 series programmer Appendix II Disclaimer Shenzhen Shuofei Technology Co., Ltd. will do its best to ensure the correctness of the product and its related software and data. For possible product (including software and related data) defects and errors, the company will try its best to solve the problem with commercial and technical capabilities. The company is not responsible for all kinds of incidental, consequential, direct, indirect, special, extended or punitive damages arising from the use or sale of this product, including but not limited to profits, goodwill, loss of availability, Business interruption, data loss, etc., do not bear any direct, indirect, incidental, special, derivative, punitive damages and third-party claims.
Page 20 Sofei Technology SP8 series programmer Appendix IV Document Revision Record illustrate release date Revised by Version 2011-08 Freeman the first1Version 2011-12 Freeman Modify file load/save content Increase25seriesSPI FLASHModel detection function update software /USBDriver installation content 2013-04 Freeman corresponds toV2.61and aboveFlyPROThe software increases the data buffer search...
