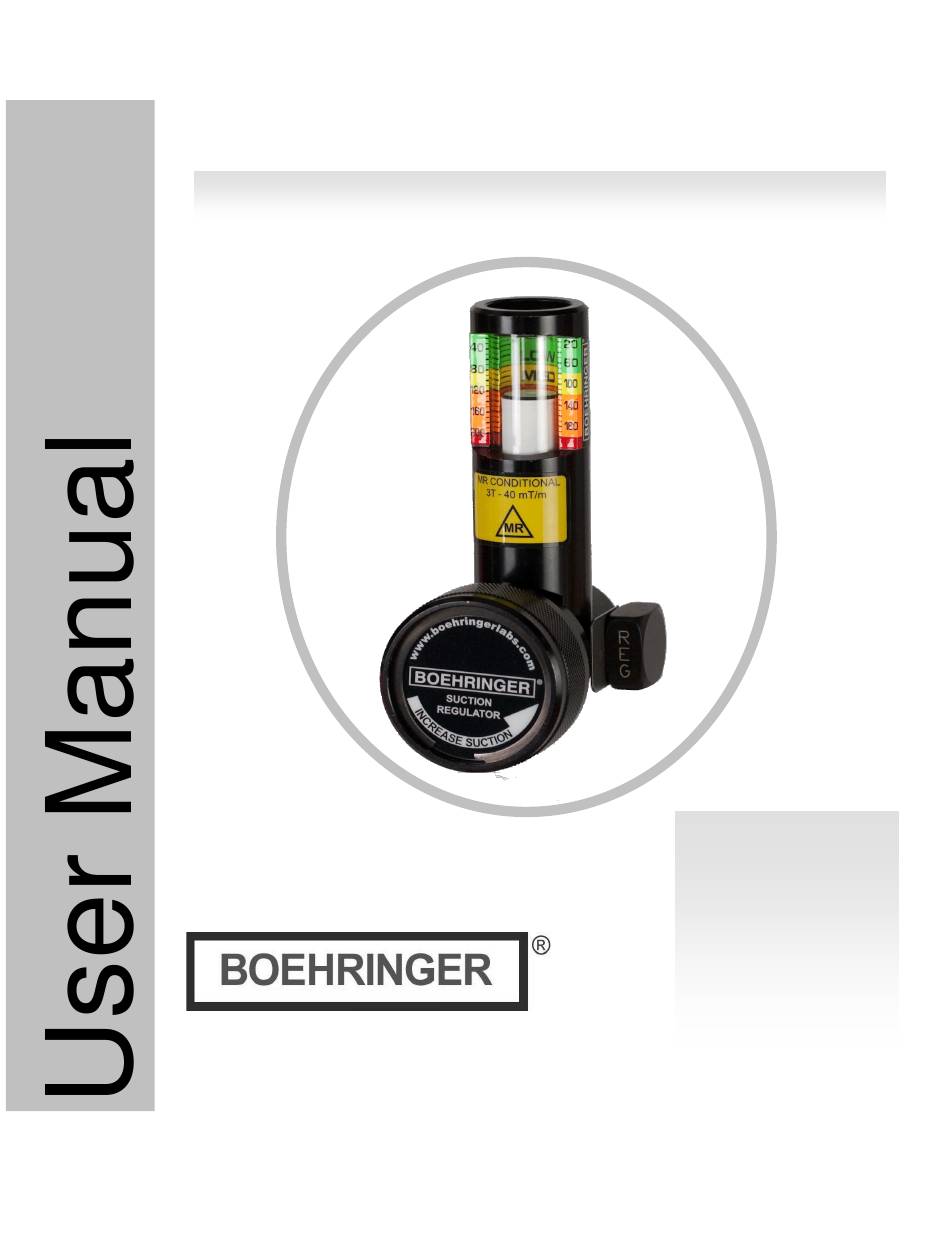

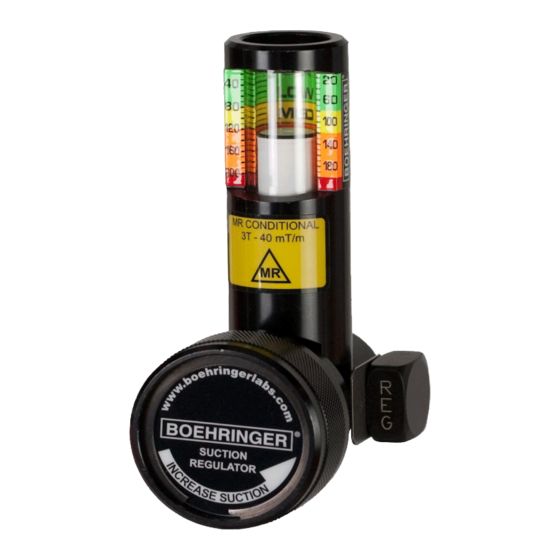

- Page 1 MRI S UCTION EGULATOR 3800 3804 3840 MRI Suction Regulator Model: 3708 Boehringer Laboratories, LLC 300 Thoms Dr. Phoenixville, PA 19460 800-642-4945 3708.003 Rev G P/N 33397 1 of 13 Released September 2022 User Manual Model 3708 MRI Regulator...
-
Page 2: Table Of Contents
Congratulations on your purchase of a Boehringer Suction Regulator. We consider our Suction Regulators to be the best in the world. We are confident it will provide you with reliable, trouble-free, safe patient care and low cost of operation. This product is intended for use by individuals properly trained in suctioning procedures by or on the order of a physician. - Page 3 Involuntary pneumatic biopsy, or tissue damage, can occur when high levels of vacuum are applied to delicate tissue. With a Boehringer regulator, you can depend on very low “spike” compared to our competitor’s models.
-
Page 4: Clinical Use
The fact that the intermitter is cycling is not an indication that effective drainage is occurring. ▪ The Model 3708 Boehringer MRI Suction Regulator is the only MR conditional regulator with FDA 510K approval. ▪... -
Page 5: Installation
Operation – Model 3708 MRI Regulator incorporates a 3-way control valve with OFF, REG, and LINE. OFF: With control valve in the OFF position, suction is off and the collection circuit is returned to atmospheric pressure by an internal vent port, a special feature of the Boehringer design. -
Page 6: Cleaning And Disinfection
Assembly and Lubrication – After disassembling and cleaning the instrument, assemble and lubricate as follows. Parts are available from Boehringer Labs and may be ordered by part number (P/N). Part numbers are found in figure 1 at the end of this manual. -
Page 7: Test
4. The gauge should be accurate to 5% of FS for any measurement within the range of the scale. If this is not the case, please return the gauge to the manufacturer for repair/replacement. 3708.003 Rev G P/N 33397 7 of 13 Released September 2022 User Manual Model 3708 MRI Regulator... - Page 8 3.0 Tesla, passively shielded. The regulator was placed in the bore of the magnet, and no effect on the operation of the regulator was detected. A full test report is contained available by request (Boehringer Document Number 3708.019). 3708.003 Rev G P/N 33397...
-
Page 9: Troubleshooting
Troubleshooting- All Models Boehringer Suction Regulators have been designed for years of trouble-free service. Should you experience difficulty that is not the result of damage to the instrument, the most likely cause is aspiration of dirt and/or fluids into the Regulator. -
Page 10: Warranty And Repair
All regulators returned for repair shall be clean and free from contamination prior to shipment to Boehringer Laboratories. This requirement is for the safety of our employees as well as to comply with Federal Law prohibiting the shipment of unmarked biohazard materials. -
Page 11: Exploded Views With Replacement Parts List
FIGURE 1 – Models 3708, 3718, 3748 Description Description 33408 Lens Cap Retaining Ring, MRI 1458HC Reg Body , Models 3708 33916 Lens Cap Disc, Model 3708 1462 Thumb Spring 33909 Lens Cap Backing, Model 3708 1480 Thumb Spring Retaining Screw... -
Page 12: Suction Fittings
5¾ x 2½ x 4 *Regulator weights are without fittings. Operating and Storage Limits – All Models We recommend that Boehringer Suction regulators be operated and stored at controlled conditions that typically reflect the medical facility environment. 3708.003 Rev G... - Page 13 SETTING THE STANDARD FOR RELIABILITY Boehringer Laboratories, LLC • 300 Thoms Dr. • Phoenixville, PA 19460 800-642-4945 or 610-278-0900 fax: 610-278-0907 www.boehringerlabs.com www.autovac.com email: info@boehringerlabs.com Copyright 2001 Boehringer Laboratories, Inc.
