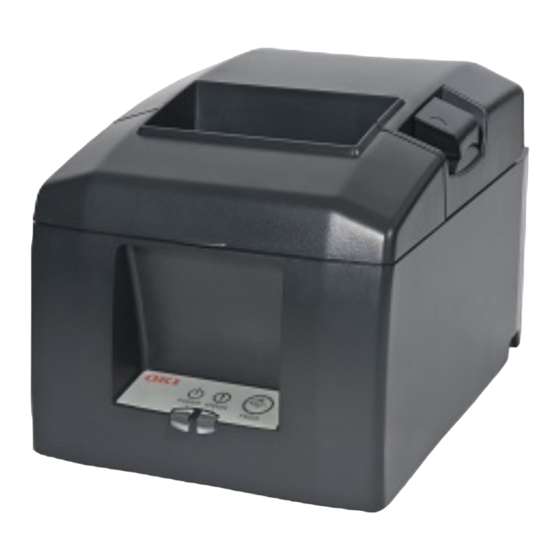

Attaching the RT322 Stand
1. Unpacking :
M3 x 6 screws
2. Attachment Procedures :
2-1. Assembling the Stand
Position the stand rail with the three openings in the
1
bottom cover. Fit the two projections on the stand
until you hear a clicking sound.
Gently pull on the bottom cover to ensure that it is
2
securely attached.
2-2. Connecting the Cables
Pass the cables through the holes in the stand to connect
to the connector on the printer.
2-3. Mounting the Printer
Position the corners of the printer with the L portion on
it with the two screws.
2-4. Setting Roll Paper
Press the cover open lever to open the printer cover.
1
Set the roll paper inside the printer as shown in the
2
drawing.
58398901
Stand
Bottom Cover
Hole
Projection

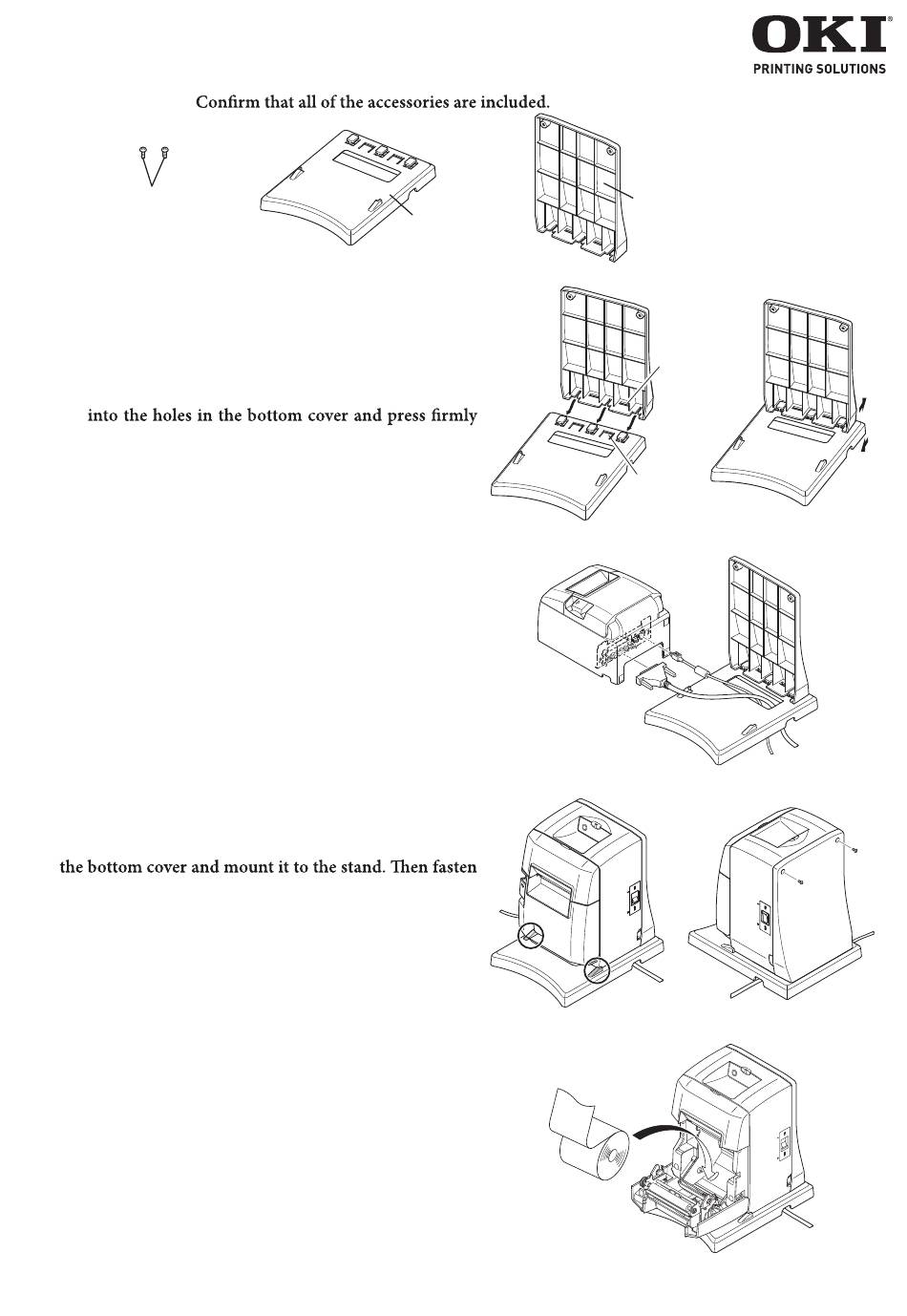

Fig.1
Assembling the Stand
Fig. 2 Connecting the Cables
Fig. 3 Mounting the Printer
Fig. 4 Setting Roll Paper
