PPA Pull Push Installation Manual

ATTENTION
Do not use the equipment
without first reading its
User's manual.
Installation guide
PULL PUSH PULL PUSH PULL PUSH PULL PUSH PULL PUSH PULL PUSH
P30761 - 05/2022
Rev. 0
INTRODUCTION
INTRODUCTION
Congratulations. You have just purchased a product fea-
turing PPA quality, comfort and security. PPA Pull Push is
an automatic door opening visual indicator when elec-
tromagnet locks are used.
Frequently when electromagnet locks are used in au-
tomatic doors, it is difficult to know when the door is
released, and using a visual indication for the person to
open the door is necessary. Pull Push Indicator serves this
purpose.
PRODUCT
Pull Push consists of a pair of indicators each one with its
plastic casing and power cable outlet with the following
luminous signs PULL and PUSH. Once installed on the au-
tomatic door, when the door is opened, the electromag-
net lock control system will cut off its power, and send it
to the Pull Push which will light up and indicate to the
user the door is released.
TECHNICAL SPECIFICATIONS
Supply voltage: 12-17Vdc
Consumption of the two parts: 28mA
INSTALLATION PRECAUTIONS
• Install the product with the correct description towards
the direction of the door. Pull in the direction of the
pull; push in the direction of the push.
• Install the product at a height that allows easy viewing
of the indicators.
• Respect the correct polarity of the power cables.

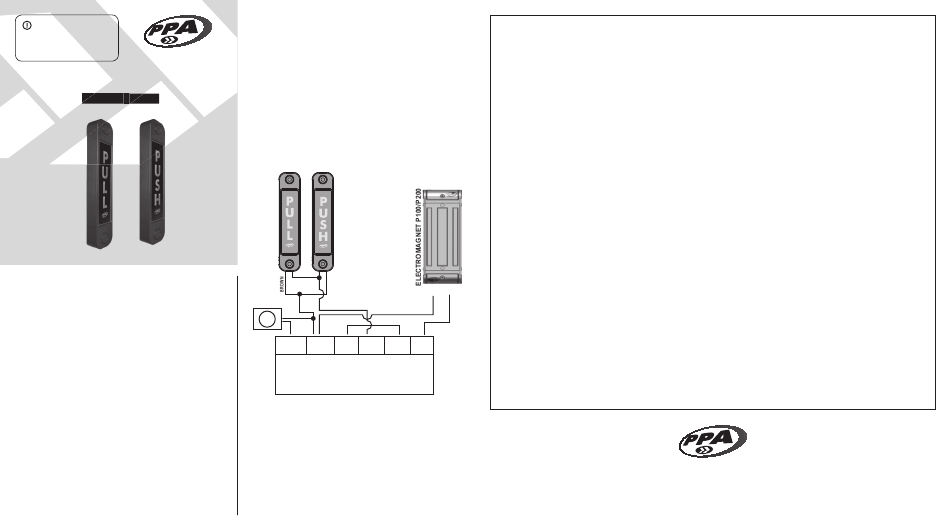

SUGGESTED CONNECTIONS
RED
PUSH BUTTON
BOT GND 12V NA CM NF
DRIVE
GENERAL TERMS AND CONDITIONS OF WARRANTY
MOTOPPAR, Industry and Commerce of Automatic Gate Operators Ltd., registered with the CNPJ (National Registry of Legal
Entities) under Number 52.605.821/0001-55, located at 3526 Dr. Labieno da Costa Machado Avenue, Industrial District, Garça –
SP – Brazil, Zip Code 17400-000, manufacturer of PPA Products, hereby guarantees this product against design, manufacturing
or assembly defects and/or supportively as a result of material quality flaws that could make its intended use improper or
inadequate, within a legal period of ninety days from time of acquisition, provided that the installation instructions described
in the instruction manual are observed.
Due to the credibility and trust placed on PPA products, we will add 275 more days to the period mentioned above, reaching
a warranty period of one year, likewise counted from the time of acquisition proven by consumer through proof of purchase
(Customer Receipt).
In case of defect, within the warranty period, PPA responsibilities are restricted to the repair or substitution of the product
manufactured by the company, under the following conditions:
1. Repair and readjustment of equipment may only be carried out by PPA Technical Assistance, which is qualified to open,
remove, and substitute parts or components, as well as repair defects covered by this warranty; thus, failure on observing
this guideline and the verified use of any non-original parts will cause the resignation of this warranty on the part of the user;
2. The warranty will not extend to accessories such as cables, screw kit, fixing brackets, power supplies etc.;
3. Expenses for packaging, transportation and product reinstallation will be sole responsibility of the consumer;
4. The equipment must be sent directly to the Company responsible for the sale (manufacturer's representative), through the
address contained in the purchase invoice, properly packed, thus avoiding loss of the warranty;
5. Within the additional period of 275 days, visits and transportation in places where authorized technical assistance is not
available will be charged. The cost of transportation of the product and/or technician will be sole responsibility of the
consumer and
6. The substitution or repair of the product does not prolong the warranty time.
This warranty will be terminated if the product:
1. Is damaged by natural agents, such as atmospheric discharges, floods, wildfires, landslides etc.;
(-) (+)
2. Is installed in an improper electric power supply or if it is not according to any of the installation instructions displayed on
the manual;
3. Shows defects caused by droppings, collisions or any other physical accident;
4. Shows signs of product violation or attempted repair by unauthorized personnel;
5. Is not used for its intended purpose;
6. Is not used under normal conditions;
7. Is damaged by accessories or equipment connected to it.
Recommendation:
We recommend that both the installation and the maintenance of the operator to be performed by an authorized PPA
technical service. If the product fails or has an improper operation, seek an Authorized Technical Service to fix it.
Made by: Motoppar Indústria e Comércio de Automatizadores Ltda
Av. Dr. Labieno da Costa Machado, 3526 - Distrito Industrial
Garça - SP - CEP 17406-200 - Brasil
CNPJ: 52.605.821/0001-55
www.ppa.com.br | +55 14 3407 1000
