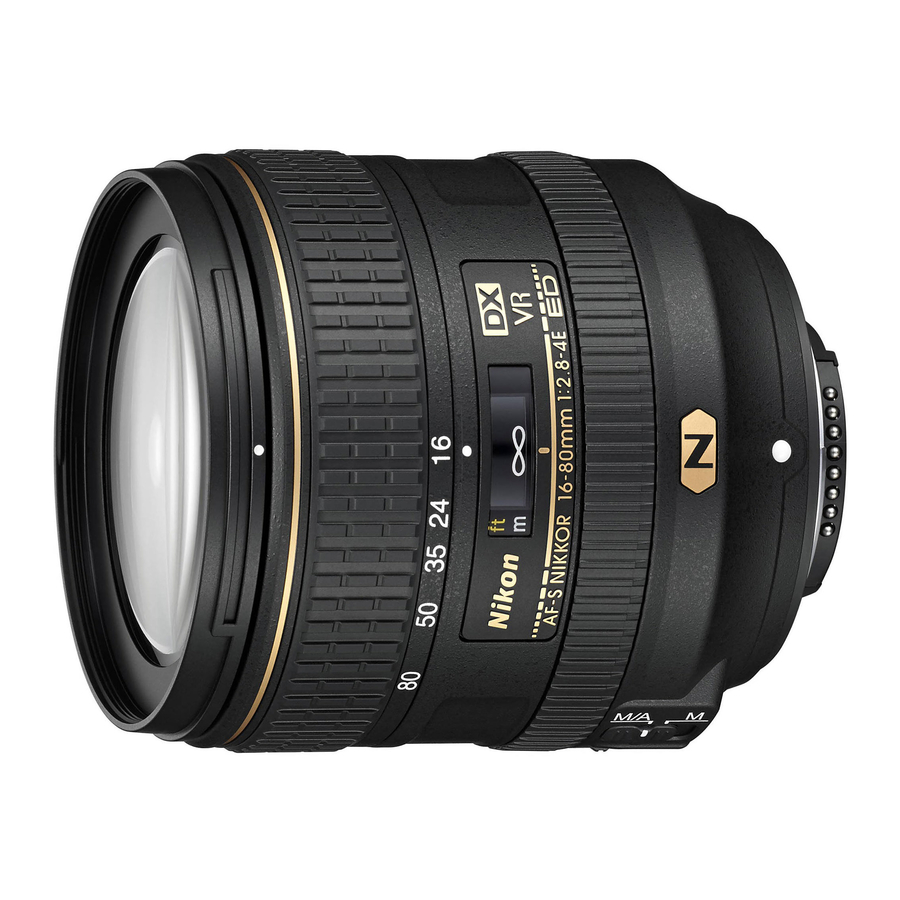

Nikon NIKKOR AF-S DX NIKKOR 16-80mm f/2.8-4E ED VR Manual

Before using this product, please carefully read both these instructions and the camera manual.

Note:
DX lenses are for use with DX-format digital single-lens refl ex cameras such as the D7200 or D5500. The angle of view of a lens on a DX-format camera is equivalent to that of a lens with a focal length about 1.5 × longer mounted on a 35 mm format camera.

This lens does not support D2- or D1-series, D200, D100, D90, D80, D70-series, D60, D50, D40-series, or D3000 digital SLR cameras or fi lm SLR cameras.

For Your Safety

• Do not disassemble or modify. In the event of malfunction, the product should be repaired only by a qualifi ed technician. Should the product break open as the result of a fall or other accident, avoid touching exposed parts. Failure to observe these precautions could result in electric shock or other injury.
• Turn the camera off immediately in the event of malfunction. Should you notice smoke or an unusual smell coming from the equipment, immediately unplug the AC adapter and remove the camera battery, taking care to avoid burns. Continued operation could result in fi re or injury. After removing the battery, take the equipment to a Nikon-authorized service center for inspection.
• Keep dry. Do not expose the product to water or handle with wet hands. Failure to observe this precaution could result in fi re or electric shock.
• Do not use in the presence of fl ammable gas. Operating the equipment at fi lling stations or in the presence of propane or other fl ammable gas or dust could result in explosion or fi re.
• Do not look at the sun through the lens or the camera viewfi nder. Viewing the sun or other bright light source through the lens or viewfi nder could cause permanent visual impairment.

• Keep out of reach of children. Failure to observe this precaution could result in injury or product malfunction.
• Do not focus sunlight through the lens. Sunlight focused through the lens could cause fi re. When shooting backlit subjects keep the sun well out of the frame; if the lens will not be used for an extended period, replace the lens caps and store out of direct sunlight.
• Do not overheat. Do not leave the product in locations exposed to extremely high temperatures, such as in an enclosed vehicle in direct sunlight, or wrap the product in a towel or handkerchief or otherwise cover the product while it is in use. Failure to observe these precautions could result in fi re or product malfunction.

Notice for Customers in Europe

This symbol indicates that electrical and electronic equipment is to be collected separately.
The following apply only to users in European countries:

• This product is designated for separate collection at an appropri-ate collection point. Do not dispose of as household waste.
• Separate collection and recycling helps conserve natural resources and prevent negative consequences for human health and the environment that might result from incorrect disposal.
• For more information, contact the retailer or the local authorities in charge of waste management.

Parts of the Lens

1. Lens hood
2. Lens hood lock mark
3. Lens hood alignment mark
4. Lens hood lock release button
5. Lens hood mounting mark
6. Zoom ring
7. Focal length mark
8. Focus distance indicator
9. Focus distance mark
10. Focus ring
11. Lens mounting mark
12. Rubber lens-mount gasket
13. CPU contacts
14. Focal length scale
15. Focus-mode switch
16. Vibration reduction switch
17. Vibration reduction mode switch

Focus

Supported focus modes are shown in the following table (for information on camera focus modes, see the camera manual).

M/A (Autofocus with Manual Override)

To focus using autofocus with manual override (M/A):

1. Slide the lens focus-mode switch to M/A.
2. Focus.
   If desired, autofocus can be over-ridden by rotating the lens focus ring while the shutter-release button is pressed halfway (or, if the camera is equipped with an AF-ON button, while the AF-ON button is pressed). To refocus using autofocus, press the shutter-release button halfway or press the AF-ON button again.

Zoom and Depth of Field

Before focusing, rotate the zoom ring to adjust the focal length and frame the photograph. If the camera off ers depth-of-fi eld preview (stop down), depth of fi eld can be previewed in the viewfi nder.

Note:
Focal length decreases as the focus distance shortens.
Note that the focus distance indicator is intended only as a guide and may not accurately show the distance to the subject and may, due to depth of fi eld or other factors, not show ∞ when the camera is focused on a distant object.

Aperture

Aperture is adjusted using camera controls. The frame rate may drop at some apertures.

Zoom and Maximum Aperture
Changes to zoom can alter the maximum aperture by up to 1 EV.

Built-in Flash Units

The minimum focus distances at which the lens can be used with built-in camera fl ash units without vignetting are given below.

^* Lens hood not attached.

"Vignetting" refers to shadows created where the end of the lens obscures the built-in fl ash. For the latest information on vignetting with this lens, see the camera manual.

Vibration Reduction (VR)

Vibration reduction (VR) reduces blur caused by camera shake, allowing shutter speeds up to 4.0 stops slower than would otherwise be the case, increasing the range of shutter speeds available. The eff ects of VR on shutter speed are measured in NORMAL mode according to Camera and Imaging Products Association (CIPA) standards; FX-format lenses are measured using FX-format digital cameras, DX-format lenses using DX-format cameras. Zoom lenses are measured at maximum zoom.

Using the Vibration Reduction Switch

• Select ON to enable vibration reduction. Vibration reduction is activated when the shutter-release button is pressed halfway, reducing the eff ects of camera shake for improved framing and focus.
• Select OFF to turn vibration reduction off.

Using the Vibration Reduction Mode Switch

The vibration reduction mode switch is used to select the vibration reduction mode when vibration reduction is on.

• Select NORMAL for enhanced vibration reduction when photographing stationary subjects.
• Select ACTIVE to reduce the eff ects of vibration when shooting from a moving vehicle, and in other situations with active camera motion.

Using Vibration Reduction: Notes

• When using vibration reduction, press the shutter-release button halfway and wait for the image in the viewfi nder to stabilize before pressing the shutter-release button the rest of the way down.
• When vibration reduction is active, the image in the viewfi nder may be blurred after the shutter is released. This does not indicate a malfunction.
• Slide the vibration reduction mode switch to NORMAL for panning shots. When the camera is panned, vibration reduction applies only to motion that is not part of the pan (if the camera is panned horizontally, for example, vibration reduction will be applied only to vertical shake), making it much easier to pan the camera smoothly in a wide arc.
• Do not turn the camera off or remove the lens while vibration reduction is in eff ect. If power to the lens is cut while vibration reduction is on, the lens may rattle when shaken. This is not a malfunction, and can be corrected by reattaching the lens and turning the camera on.
• If the camera is equipped with a built-in fl ash, vibration reduction will be disabled while the fl ash charges.
• ON is generally recommended when the camera is mounted on a monopod or a tripod with an unsecured head, although OFF may be preferred depending shooting conditions and the type of tripod.

The Lens Hood

The lens hoods protect the lens and block stray light that would otherwise cause fl are or ghosting.

Attaching the Hood

Align the lens hood mounting mark with the lens hood alignment mark and then rotate the hood (w) until the mark is aligned with the lens hood lock mark .
When attaching or removing the hood, hold it near the symbol on its base and avoid gripping it too tightly. Vignetting may occur if the hood is not correctly attached.
The hood can be reversed and mounted on the lens when not in use.

Detaching the Hood

Press the lens hood lock release button , rotate the hood in the direction shown by the arrow , and remove it as shown .

Lens Care

• The lens returns to maximum aperture when removed from the camera. To protect the interior of the lens, store it out of direct sunlight or replace the lens caps.
• Do not pick up or hold the lens or camera using only the lens hood.
• Keep the CPU contacts clean.
• Should the rubber lens-mount gasket be damaged, cease use immedi-ately and take the lens to a Nikon-authorized service center for repair.
• Use a blower to remove dust and lint from the lens surfaces.
• The fluorine-coated front and rear elements of the teleconverter can be cleaned simply by wiping them with a dry cloth. Smudges and fi ngerprints can be removed using a soft, clean cotton cloth or lens cleaning tissue; clean from the center outwards using a circular motion, taking care not to leave smears or touch the glass surface with your fi ngers. To remove stubborn stains, wipe gently using a soft cloth dampened with a small amount of distilled water, ethanol, or lens cleaner. Drop-shaped stains on the water- and oil-repellent fl uorine-coated elements can be removed with a dry cloth.
• Never use organic solvents such as paint thinner or benzene to clean the lens.
• The lens hood or NC fi lters can be used to protect the front lens element.
• Attach the front and rear caps before placing the lens in its fl exible pouch.
• If the lens will not be used for an extended period, store it in a cool, dry location to prevent mold and rust. Do not store in direct sunlight or with naphtha or camphor moth balls.
• Keep the lens dry. Rusting of the internal mechanism can cause irrepa-rable damage.
• Leaving the lens in extremely hot locations could damage or warp parts made from reinforced plastic.

Supplied Accessories

• 72 mm snap-on Front Lens Cap LC-72
• Rear Lens Cap LF-4
• Bayonet Hood HB-75

Compatible Accessories

• 72 mm screw-on fi lters
• Lens Case CL-1218

Specifications

Nikon reserves the right to change the fi cations of the hardware described in this manual at any time and without prior notice.
