Artusi CAGH1 Installation And User Instructions Manual
Hide thumbs
Also See for CAGH1:
- Installation and user instructions (2 pages) ,
- Operation manual (8 pages) ,
- Operation manual (8 pages)
Table of Contents
Advertisement
Quick Links
INSTALLATION AND USER INSTRUCTIONS
Note: Do not use the hob until you have read the instruction manual.
Semirapid
gas burner
6.3 MJ/h
Triple flame
gas burner
13.7 MJ/h
CAGH600CIX
CAGH600X
CBH460SS
Triple flame gas burner 13.7 MJ/h
Semirapid
gas burner
6.3 MJ/h
Semirapid
gas burner
6.3 MJ/h
1
BUILT-IN GAS HOB
CAGH95X
CAGH75X
CAGH600CIX
CAGH600X
CBH460SS
CAGH31B
CAGH90ETX
1. INTRODUCTION
Semirapid
gas burner
6.3 MJ/h
Auxiliary
gas burner
3.6 MJ/h
CAGH1
Rapid
gas burner
10.8 MJ/h
Auxiliary
gas burner
3.6 MJ/h
CAGH75X
CAGH1
Reference to AS/NZS 5601
Rapid
gas burner
10.8 MJ/h
Triple flame
gas burner
13.7 MJ/h
Auxiliary
gas burner
3.6 MJ/h
V20210707
Semirapid
gas burner
6.3 MJ/h
Semirapid
gas burner
6.3 MJ/h
CAGH95X
CAGH90ETX
Triple flame
gas burner
13.7 MJ/h
CAGH31B
Cod:0070302047-L
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Artusi CAGH1
Summary of Contents for Artusi CAGH1

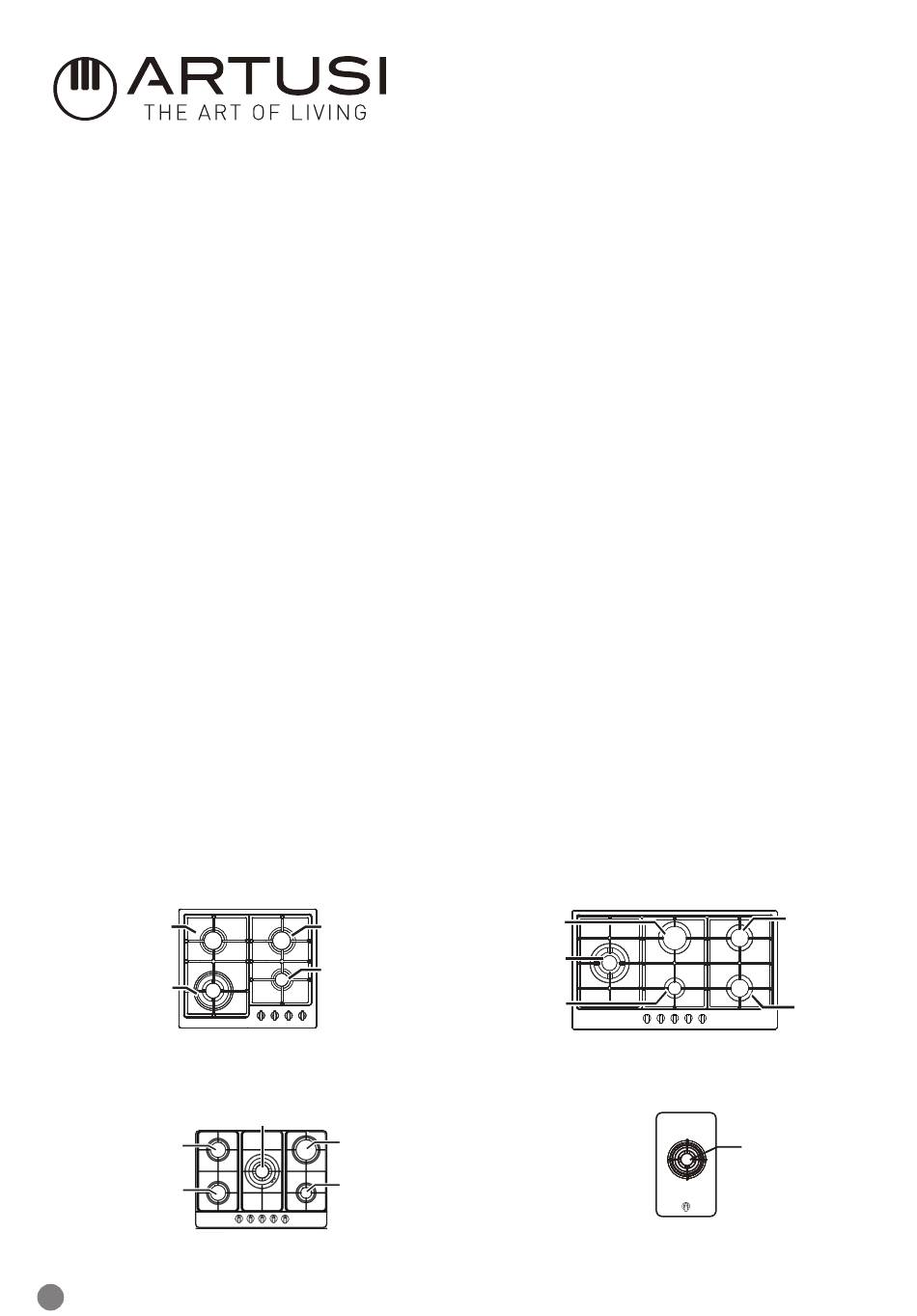

- Page 1 BUILT-IN GAS HOB INSTALLATION AND USER INSTRUCTIONS CAGH1 CAGH95X CAGH75X CAGH600CIX CAGH600X CBH460SS CAGH31B CAGH90ETX Reference to AS/NZS 5601 Note: Do not use the hob until you have read the instruction manual. 1. INTRODUCTION Rapid Semirapid Semirapid gas burner Semirapid...
-
