LevelOne CamCon FCS-3000 Specifications

Day/Night IP Dome Camera
(Indoor/Outdoor Operation)
H/W Version: 2

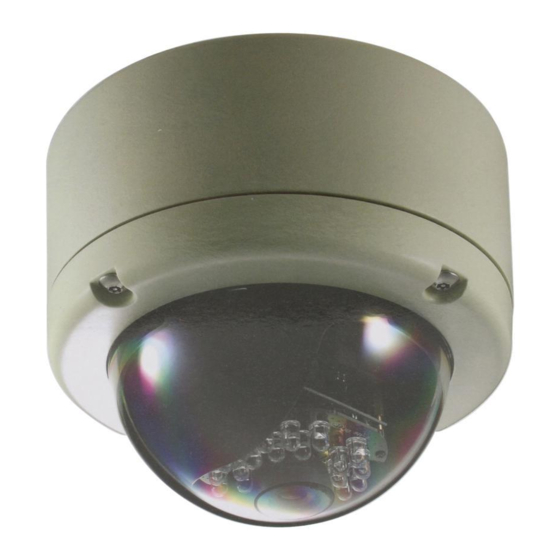

LevelOne's FCS-3000 is a powerful IP network
camera that features IP66 rated waterproof
metal housing, making it ideal for outdoor and
indoor surveillance installations. It delivers
outstanding color images at low or no light
conditions through LAN/WAN connections.
Vandal-proof Protection
The water-resistant design of the dome allows
this camera to be installed at indoor/outdoor
locations. The metal housing also provides
protection to withstand impact and tampering
in tough operating condition.
24 Hours Surveillance Application
The FCS-3000 contains an excellent high-
resolution 1/3" CCD sensor which can record
color images up to 704 x 480 pixels in low or
no light conditions. It has built-in IR LEDs that
capture crisp monochrome images. It employs
selectable MJPEG and MPEG-4 (Simple Profile)
Key Features
- Includes infrared LEDs for 10m effective night
vision
- High-Resolution 1/3" CCD sensor
- Vandal-proof and IP66 waterproof
- Supports selectable MJPEG/ MPEG4 (Simple
Profile) compression for bandwidth-efficiency
- Supports 2-way (full-duplex) audio
- Intelligent Motion Detection
- Extended I/O for event trigger sensor & alarm
- Provides BNC video output for CCTV system
- Free software included (Industry-leading
32-channel IP CamSecure Lite™ software)

compression to transfer high quality streaming
video and sound.
Advanced Monitoring Features
The motion detection feature allows recording
only when motion is detected thus saving
storage. The I/O interface allows connections
to optional modules, including motion sensors,
alarms smoke detectors, etc, sends emails to
designated addresses when an alert is triggered.
Software Induded
The bundled software that comes with the
FCS-3000 allows monitoring of up to 32 channels
simultaneously. Recording of video & audio
can be done easily in manual, event-driven or
schedule recording modes. These features make
LevelOne's FCS-3000 the cost efficient device for
building a 24-hour digital surveillance network
for daylnight and indoor/outdoor use.
1 2 3 4 5
Works Well With
1. Audio In
2. Audio Out
3. BNC Connector
4. LAN Cable
5. Power Cord Socket
6. Alarm
6
FCS-9464
IP CamSecure Pro64 Mega
FCS-7011
1-port PoE Video Server
FCS-3000
