Oriole series camera

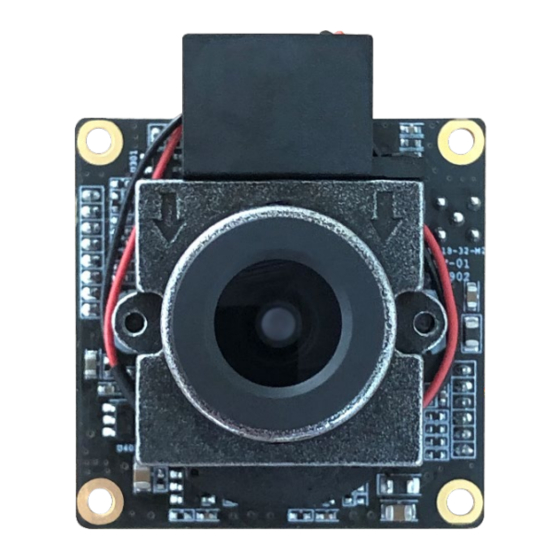

Oriole HD-SDI Board Camera
(HD-SDI/EX-SDI/CVBS)
AS-BCAM-S32-00-A / -B
Technical
Reference Manual
Edition: v1.02
Issued Date: 26 July 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS-BCAM-S32-00-A and is the answer not in the manual?

Questions and answers

Related Manuals for Active Silicon AS-BCAM-S32-00-A

Summary of Contents for Active Silicon AS-BCAM-S32-00-A

  • Page 1              Oriole series camera Oriole HD-SDI Board Camera (HD-SDI/EX-SDI/CVBS) AS-BCAM-S32-00-A / -B Technical Reference Manual Edition: v1.02 Issued Date: 26 July 2022...

  • Page 2: Table Of Contents

                 Oriole series camera Contents FEATURES ....................3 CAUTIONS ....................4 SPECIFICATION ................... 5 CONNECTORS ..................... 7 BLOCK DIAGRAM ..................9 PROTOCOL ....................10 VISCA COMMAND LIST ................14 VISCA INQUIRY COMMAND LIST .............

  • Page 3: Features

                 Oriole series camera Features ◆ 1/3“ CMOS sensor 2.5M Pixels(Total) / 2.3M Pixels(Active) ◆ Full HD Resolution 1920x1080p / 30fps(25fps) 1280x720p / 30fps(25fps) 1280x720p / 60fps(50fps) ◆ DAY & NIGHT (optional function) AS-BCAM-S32-00-B uses a DC Motor controller to drive a switchable IR-cut filter for day and night mode functionality.

  • Page 4: Cautions

                 Oriole series camera Cautions ◆ Power Supply This camera must always be operated at 12V DC ◆ Handling of the unit Be careful not to spill water or other liquids on the unit. ◆...

  • Page 5: Specification

                 Oriole series camera Specification Model AS-BCAM-S32-00-A / -B Image Sensor 1/3" CMOS Sensor Total Pixels 1,981(H) x 1,288(V) = 2.55M Pixels Effective pixels 1,944(H) x 1,212(V), 2.35M Pixels...
  • Page 6              Oriole series camera Model AS-BCAM-S32-00-A / -B Intelligence Privacy / Motion / DIS Privacy Mask Off / On (24 masks) Motion Detection Off / On (3 positions)

  • Page 7: Connectors

                 Oriole series camera Connectors J203 J301 J202 J201 Top View (AS-BCAM-S32-00-B) Bottom View J201 (I/O Connector) Pin No. Name Level Pin No. Name Level DC+12V In ADKEY See ADKEY section Day&Night Control i/p D&N-IN...
  • Page 8              Oriole series camera 1. D&N IN (J201-5) Port for input of external signal in Day&Night “Ext-In” Mode (active high polarity) • Day Mode: High (+3.3V) • Night Mode: Low (Ground) The polarity of this signal can be reversed using the OSD menu Polarity option (Exposure ->...

  • Page 9: Block Diagram

                 Oriole series camera Block Diagram HD-SDI OUTPUT MEMORY LENS CMOS VIDEO +3.3V +1.8V +1.2V POWER +12V July 2022 www.activesilicon.com Page 9 of 34...

  • Page 10: Protocol

                 Oriole series camera Protocol 1. Timing As Command processing can only be carried out one time in a Vertical cycle, it takes the maximum 1V cycle time for an ACK/Completion to be returned. If the Command ACK/Completion communication time can be cut shorter than the 1V cycle time, then every 1V cycle can receive a Command.
  • Page 11              Oriole series camera 3. Pelco-D Protocol Command List Message Format (Hex) Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Zoom Tele Zoom Wide Stop Don’t care Menu (Set) 03 or 07 03 or 07 Down...
  • Page 12              Oriole series camera 5. Visca Protocol • Command packet (Variable packet length) X: 1 ~ 7 (Camera address) QQ: 01 (Command), 09 (Inquiry) • Ack message packet (Variable packet length) Y: 9 ~ F (Camera address + 8) Q: 4 (Receive Ack), 5 (Completion message), 6 (Error message) R: Socket Number (1 ~ 3)
  • Page 13              Oriole series camera • Example of communication Camera ID: 1 Socket number: 1 ※ Command ※ Inquiry command • Network change message Sent from the peripheral device to the controller when a device is removed from or added to the network.

  • Page 14: Visca Command List

                 Oriole series camera VISCA Command List Command Set Command Command Packet Comments AddressSet Broadcast 88 30 01 FF Address setting Broadcast 88 01 00 01 FF IF_Clear I/F Clear 8x 01 00 01 FF CommandCancel...
  • Page 15              Oriole series camera Command Set Command Command Packet Comments 8x 01 04 7A 02 FF CAM_Flickerless Flickerless ON/OFF 8x 01 04 7A 03 FF 8x 01 04 33 02 FF CAM_BLC Back Light Compensation 8x 01 04 33 03 FF...
  • Page 16              Oriole series camera Command Command Setting Command Packet Comments Night 8x 01 04 01 02 FF ICR Mode ON/OFF 8x 01 04 01 03 FF Auto 8x 01 04 51 02 FF ICR is changed automaticaly by AGC Gain (D&N mode only) Ext-In...
  • Page 17              Oriole series camera Command Command Setting Command Packet Comments 8x 01 04 16 01 FF Down 8x 01 04 16 02 FF Operates OSD menu cursor Left 8x 01 04 16 04 FF CAM_MENUKey Right...

  • Page 18: Visca Inquiry Command List

                 Oriole series camera VISCA Inquiry Command List Inquiry Command Command Packet Inquiry Packet Comments y0 50 02 FF D-Zoom On CAM_DZoomModeInq 8x 09 04 06 FF y0 50 03 FF D-Zoom Off CAM_DZoomPosInq 8x 09 04 46 FF...
  • Page 19              Oriole series camera Inquiry Command Command Packet Inquiry Packet Comments y0 50 02 FF 8x 01 04 1A FF CAM_ACEInq y0 50 03 FF 8x 09 04 1A 10 FF y0 50 0p FF p : ACE Level (0 ~ 2) CAM_ACELevelInq y0 50 02 FF...
  • Page 20              Oriole series camera Inquiry Command Command Packet Inquiry Packet Comments t : 0 ~ 7 (Address) CAM_MemSaveInq 8x 09 04 23 0t FF y0 50 0p 0q 0r 0s FF pqrs : 0000 ~ FFFFh (Data) y0 50 02 FF 8x 09 04 15 FF...
  • Page 21              Oriole series camera Exposure control values D-Zoom control values Shutter Speed (Hex) D-Zoom: Separate Mode Step 60Hz/30Hz 50Hz/25Hz Magnification Zoom Position (Hex) /NTSC /PAL 1/30000 1/30000 1/10000 1/10000 1/7000 1/7000...
  • Page 22              Oriole series camera OSD character values V position 00 ~ 0Eh 15 Rows H position 00 ~ 27h 40 Columns Character code: Code Character Code Character Code Character Code Character...
  • Page 23              Oriole series camera Register Settings Register Register Function Setting Value 2400 bps 4800 bps 9600 bps BaudRate 19200 bps 38400 bps 57600 bps 115200 bps Max. DZoom Ratio Digital ZOOM Max 00 ~ F8 = 256 / (256 - Value)

  • Page 24: Osd Menu

                 Oriole series camera OSD Menu ◆ Main Menu M ENU ↲ I R- CDS M ODEL ↲ EXPOSURE ↲ W HI TE BAL ↲ I M AGE ↲...
  • Page 25              Oriole series camera ◆ EXPOSURE MENU EXPOSURE ↲ M ODEL D&N ↲ NORMAL LENS MODE EXPOSURE ↲ BRIGHTNESS W HI TE BAL I NTELLI GENCE ↲ SHUT SPEED AUTO I M AGE SPECI AL FUNC ↲...
  • Page 26              Oriole series camera ◈ FLICKERLESS: Select Flickerless mode ► OFF / ON (remove screen flicker) ◈ AGC: Select Auto Gain Control ► OFF / ON ◈ WDR/BLC: Select WDR (Wide Dynamic Range) or BLC (Back Light compensation) ►...
  • Page 27              Oriole series camera ◆ WHITE BALANCE M ENU W HI TE BAL ↲ M ODEL D&N M ODE AUTO ↲ EXPOSURE RED GAI N - - - ↲...
  • Page 28              Oriole series camera ◆ IMAGE M ENU I M AGE ↲ ↲ M ODEL D&N ↲ EXPOSURE M I DDLE ↲ M I RROR W HI TE BAL ↲...
  • Page 29              Oriole series camera ◈ DEFOG: Carry out defog function ► OFF / ON↲ ▷ MODE: AUTO / MANUAL ▷ LEVEL: LOW / MIDDLE / HIGH ※ Can’t use DEFOG and ACE at the same time (When ACE On, DEFOG is Off, and when DEFOG is On, ACE is Off) ◈...
  • Page 30              Oriole series camera ◆ INTELLIGENCE I NTELLI GENCE M ENU ↲ M ODEL D&N PRI VACY ↲ EXPOSURE M OTI ON ↲ W HI TE BAL DI S ↲...
  • Page 31              Oriole series camera ◆ SPECIAL FUNC M ENU SPECI AL FUNC ↲ ↲ M ODEL D&N DEFECT ↲ EXPOSURE I M AGE RANGE FULL ↲ W HI TE BAL SYSTEM NTSC ↲...
  • Page 32              Oriole series camera ◆ DISPLAY DI SPLAY M ENU ↲ ↲ DI SP SEL ON↲ M ODEL D&N ↲ EXPOSURE SET TI TLE ↲ ↲ W HI TE BAL I NI T SEL O N↲...

  • Page 33: Camera Dimensions

                 Oriole series camera Camera Dimensions July 2022 www.activesilicon.com Page 33 of 34...

  • Page 34: Ordering Information

    Oriole HD-SDI Board Camera (also EX-SDI, CVBS output), with switchable IR-cut filter fitted. CONTACT DETAILS Headquarters: North America: Active Silicon Ltd Active Silicon, Inc. Pinewood Mews, Bond Close, Iver, 479 Jumpers Hole Road, Suite 301, Bucks, SL0 0NA, UK. Severna Park, MD 21146, USA.
