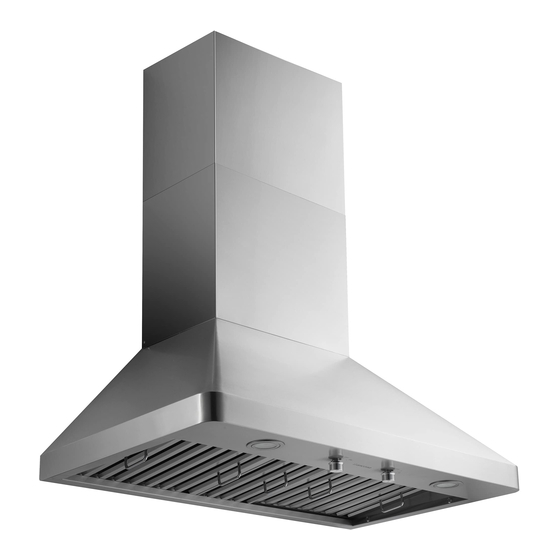

Wall Range Hood User Manual Installation Instructions IMPORTANT SAFETY INSTRUCTIONS Carefully read the important information regarding installation, safety and maintenance. Keep these instructions for future reference. MAAN1572-02 2020-11-24...
Before You Begin INSTALLERS - Start Here Safety Instructions are on pages 4 and 5 and Installation Instructions are on pages 9 to 15. Please perform these steps: 1. Read the safety instructions. 2. Read all instructions in the Installation section of this manual BEFORE installing the range hood.
Table of Contents Before You Begin ..........................2 Table of Contents ..........................3 Important Safety Information ......................4 Included Parts ........................... 6 Range Hood Dimensions ........................7 Specifications ............................ 7 Mounting Brackets ..........................8 Installation ............................9 Step 1 - Read the Safety Instructions .................... 9 Step 2 - Unpack Range Hood and Prepare Tools ................
Important Safety Information READ ALL INSTRUCTIONS BEFORE USE Read and follow all instructions before using the range hood to prevent the risk of fire, electric shock, personal injury, or damage when using the range hood or appliances with the range hood. This guide does not cover all possible conditions that may occur.
Page 5
Important Safety Information WARNING: TO REDUCE RISK OF A RANGE To reduce the risk of injury to persons in the TOP GREASE FIRE: event of a gas leaks: a) Never leave surface units unattended at high • Extinguish any open flame. settings. Boilovers cause smoking and greasy • DO NOT turn on the lights or any type of appliance.
Included Parts Hardware Note: For safety reasons, range hood mounting screws and anchors will not be included due to the variation of cabinetry constructions and wall material. Please consult your installation specialist regarding the optimal type of mounting screws and wall anchors to suit your home’s construction. Upper chimney Chimney mounting bracket Lower chimney...
Range Hood Dimensions 35 - 70 cm (13.75 - 27.5 in.) 33.1 cm 40 cm (13 in.) 25.5 cm (15.75 in.) (10 in.) 5.2 cm (2 in.) 75.6 cm (29.75 in.) / 89.5 cm (35.2 in.) 52.2 cm (20.5 in.) Specifications Body Design Stainless Steel...
Mounting Brackets Hood-mounting bracket 0.7 in. (1.8 cm) 0.2 in. (0.6 cm) 0.31 in. (0.8 cm) 0.39 in. (1 cm) 2.2 in. (5.6 cm) 4.7 in. (12 cm) Ø 0.2 in. (0.6 cm) 1.3 in. (3.5 cm) 0.39 in. (1 cm) 8.9 in.
Installation STEP 1 Read the Safety Instructions • It is very important to read the safety instructions on pages 4 and 5. IMPORTANT: It is the installer’s responsibility to comply with installation clearances. STEP 2 Unpack Range Hood and Prepare Tools • Carefully unpack the range hood and parts.
Installation STEP 5 Venting Installation Guidelines • The following steps are for exterior ventilation. For the most efficient and quiet operation: IMPORTANT: • It is recommended that the range hood be vented • Vent system must terminate to the outside (roof or side wall). vertically through the roof through 8 in. (20.3 cm) or • DO NOT terminate the vent system in an attic or other bigger round metal/aluminum vent work.
Page 11
Installation electric cook tops and minimum of 30-inch (76.2 cm) IMPORTANT: for gas stove tops and no higher than 30-inch (76.2 cm) • A minimum of 8 in. (20.3 cm) round or 3-1/4 × 10 in. (8.3 cm for electric cook tops. ×...
Installation STEP 6 Preparations NOTE: To avoid damage to your hood, prevent debris from entering the vent opening. • Determine and mark the center line on the ceiling or wall where the range hood will be installed. • Make sure there is proper clearance within the ceiling or wall for exhaust vent. • Due to the weight and size of this unit, please make sure that the support system or framework being used is stable and secure in the ceiling or wall.
Installation STEP 8 Connect Ductwork • Use 6 in. round steel pipe (follow building codes in your area) to connect the exhaust on the hood to the ductwork above. • Attach ductwork to damper. Secure the ductwork with duct tape to make sure joints are secure and air- tight.
Installation GROUNDING INSTRUCTIONS: • This appliance must be grounded. In the event of an electrical short-circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. • This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. WARNING: Improper grounding can result in a risk of electric shock. • Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded. DO NOT use an extension cord. If the power supply cord is too short, have a qualified electrician install an outlet near the appliance.
Installation STEP 12 Install Filters Assemble the metal handles to the filters using provided screws, before installing them in range hood. • Angle and insert one end of the filter into the upper channel of the range hood (Figure #9). • Raise the other end towards the inside of range hood, rotate and insert in the bottom end of opening (Figure #10 and #11).
Operation Speed Control Light Control Power Settings Lights Rotate the knob clockwise to turn the blower ON. Rotate the knob clockwise to turn the lights ON, and rotate the knob counterclockwise to turn light OFF. To increase the speed continue to rotate the switch clockwise from speed 1 to speed 4.
Maintenance Replacing the Light Pucks IMPORTANT: ALWAYS SWITCH OFF THE ELECTRICITY SUPPLY AT THE MAIN PANEL BEFORE CARRYING OUT ANY OPERATION ON THE APPLIANCE. Make sure the range hood is unplugged or turn OFF CAUTION: PUCK MAY BE HOT, PLEASE TAKE breaker.
Range Hood Assembly Number Part Hood casing Hood-mounting bracket Transition Power cable Top panel Blowers Rotary switch LED light Light panel Oil tunnel Baffle filter PCB box Chimney set W X at — 18 —...
Assembly Circuit Diagram Blower Assembly Number Part Motor Air chamber Squirrel cage Locknut Safety screen Electrical Assembly Number Part Screws (3/16 in. × 3/8 in.) Electrical box cover Processor board Screws (3/16 in. × 3/8 in.) Electrical box base Electrical panel Capacitor Screws (3/16 in.
Use and Care Information Operations • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating fans could catch on to hair, fingers and loose clothing.
