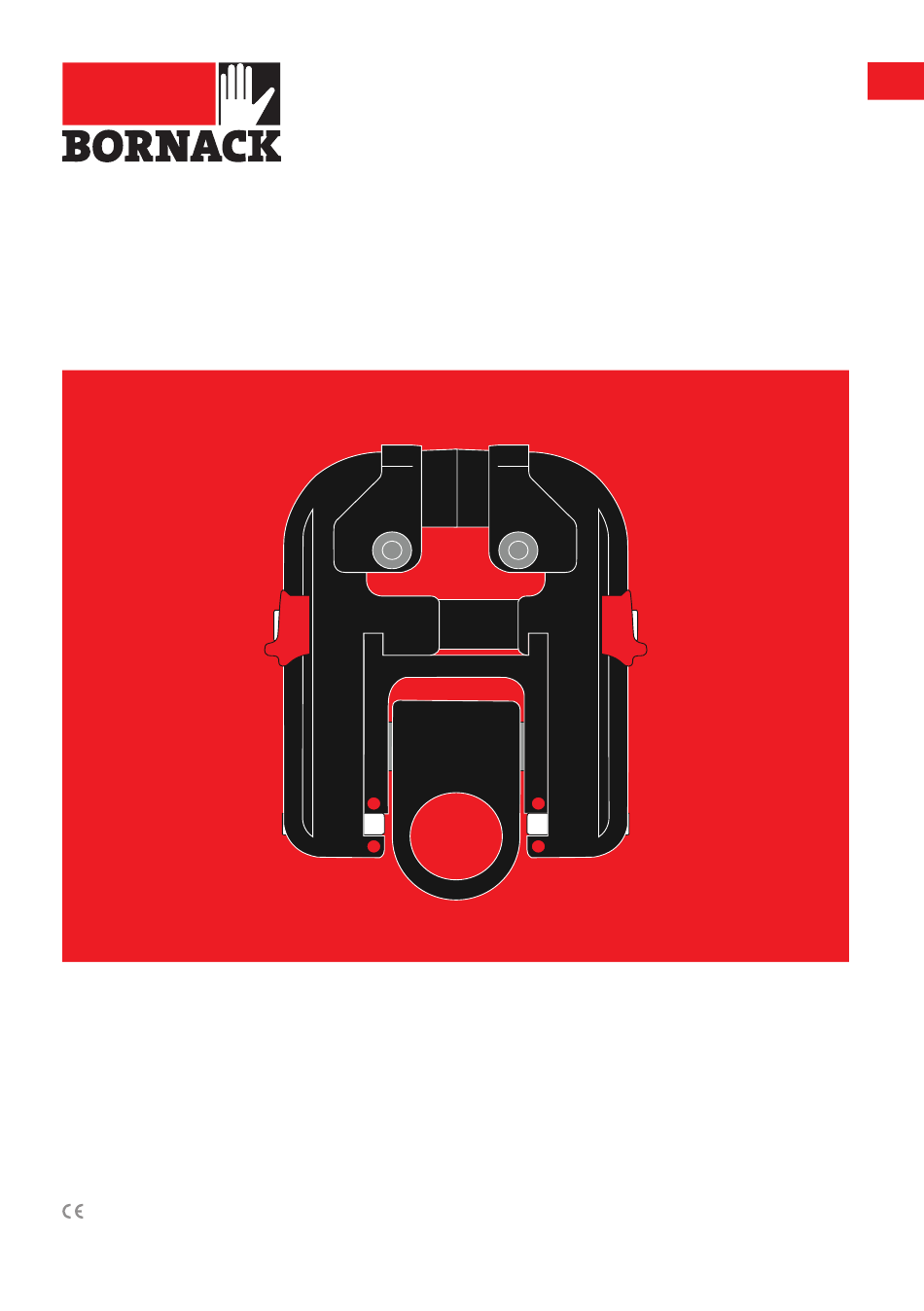

- Page 1 TQR02 User Manual 0123 EN 362:2004/T...
-
Page 2: Brief Description
Subject to technical changes BRIEF DESCRIPTION INTENDED USE INFORMATION The fast separation unit TQR02 is part of BORNACK recommends the use of personal protective equipment (PPE) of connectors that can be secured to category III to prevent falls from heights. - Page 3 Karabiner centring Unlocking bolt Lock slider Marking points on the Quickout Quickout D-ring for Marking points on the connection to the harness basic element Basic element Quickout...
-
Page 4: Information Before Use
4 | 5 INFORMATION BEFORE USE SIDE VIEW WEAR LEVEL The wear level on the hollow fillets of the TQR02 must be checked at regular intervals. The device must be withdrawn from use if heavily worn. -
Page 5: Visual Inspection
INFORMATION BEFORE USE Always check every time FUNCTION TEST before use! • Before and after it is used, the TQR02 • The personal protective equipment must be checked for damage; also, (PPE) may no longer be used in the steps must be taken to ensure that it is case of even very minor faults. - Page 6 B Pressing both unlocking bolts at the same time releases the fastener mechanism of the Quickout. The Quickout can now be removed from the TQR02 basic element. When unlocking the Quickout when under load, ensure that there is enough space because the Quickout swings to the side or downwards.
- Page 7 TQR02 IN USE D After pressing the unlocking bolts at the same time, the Quickout can be inserted into the TQR02 basic element. LOCKING AND SECURING THE QUICKOUT E Once inserted, the two unlocking bolts need to return to their initial position...
- Page 8 F Attach the connector acc. to EN 362 to the karabiner centring of the TQR02. G Attach the TQR02 basic element to the D-ring of the abseiling system using the connector acc. to EN 362. H Attach the connector acc. to EN 362 to the Quickout of the TQR02.
- Page 9 This is based on the respective flight feel free to contact BORNACK. operation manuals, operational proce- dures and the specifications of the heli- copter manufacturer.
-
Page 10: Safety Regulations
(free fall is possible), only full body (German Social Accident Insurance) harnesses that comply with EN 361 principle 312-906, by BORNACK or by a may be used. workshop authorised in writing by • Calculation of the possible fall path if BORNACK. - Page 11 The rescue should be carried out as quickly as possible, longer suspension times (>20 min) can lead to medical prob- lems. BORNACK can help you draw up tailor-made rescue concepts and includes these in the necessary training courses.
-
Page 12: Regular Inspections
TÜV SÜD Product Service GmbH SERVICE Ridlerstr. 65, D-80339 München CE 0123 If you have any further questions about this PPE or other BORNACK services, Quality management system certified to such as: ISO 9001:2015. • Risk analyses Production monitoring by notified office •... -
Page 13: Maintenance
CLEANING The red lock sliders of the TQR02 may • Dry damp personal protective equip- lose their colour over time as a result of ment in the air, not on artificial heat weathering, e.g. - Page 14 • For reasons of liability, repairs may can have a negative effect on the only be carried out by BORNACK or in a strength of the PPE. workshop authorised in writing by • Protected storage in the device case or BORNACK.
-
Page 15: Product Identification
OTHER PRODUCT IDENTIFICATION The following identification is on the product: Useful load Data matrix CE symbol and number Manufacturer of the test office address Item number Observe/read the User Manual Production date Serial number Logo Product name Product category EN norms Charge... - Page 16 16 | 17 TEST CARD FOR ANNUAL MONITORING The test list must be Type product name: ______________________ completed in full by the expert during the annual Production date: _________________________ inspection. Charge: Serial no.: ________________ _______ This test list does not claim to cover all test Purchase date: __________________________...
- Page 17 Lock slider functional? No chemical soiling? Unlocking bolt functional? No deformation of metal parts? Condition of the springs/rivets/axles No corrosion damage? Red marking points on the TQR02 basic element and on the Quickout in place? Continued on the next page...
- Page 18 18 | 19 TEST CARD FOR ANNUAL MONITORING Please complete: Year 1st 2nd 3rd 4th 5th 6th 7th 8th 9th 10th No mechanical damage? Identification legible? User Manual available? Blocked...
-
Page 19: Eu Declaration Of Conformity
EU DECLARATION OF CONFORMITY... - Page 20 Tel + 49 (0) 70 62 / 26 90 0-0 Fax + 49 (0) 70 62 / 26 90 0-550 info@bornack.de www.bornack.de © BORNACK – Subject to technical changes Reprinting or duplication, even of excerpts, is only permitted with written consent Status: 07/2021 GAL Art.-No. 8000184_EN jba...
