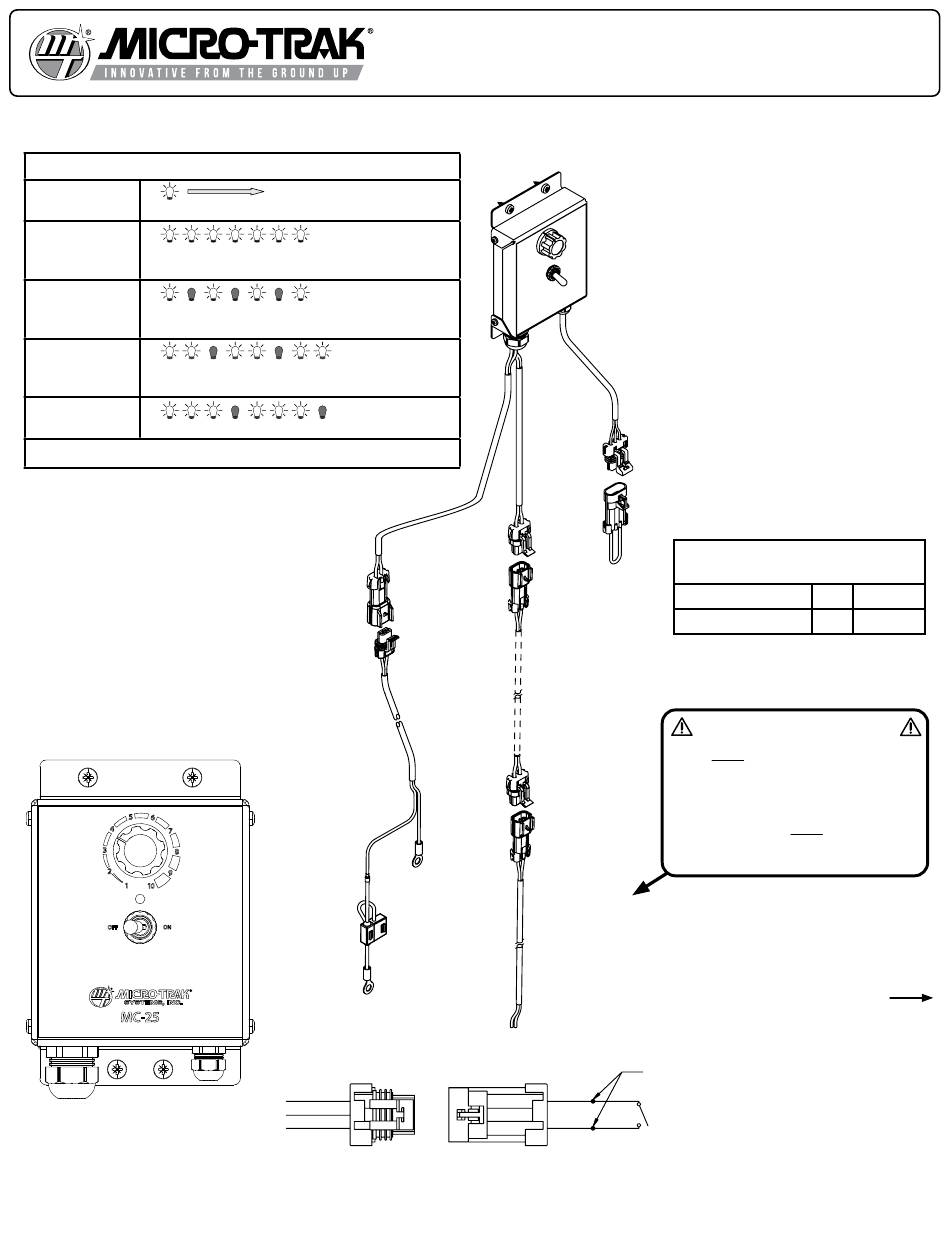

micro-trak 17445 Installation Instructions

LED STATUS INDICATOR CODES
Light on steady
Unit is turned on and operating normally
Steady Flashing
Unit in HOLD. Check Run/Hold jumper or remote
switch for correct operation.
1 Flash/pause
Open circuit detected. Check motor connections for
open circuit.
2 Flashes/pause
Output short circuit detected. Check motor wir-
ing.
3 Flashes/pause
Over-current condition. Check total load.
NOTE: Cycle power with the ON/OFF switch to clear a fault code
Front View
1305 Stadium Rd.
Mankato, MN 56001-5355
Web: www.micro-trak.com
WHITE
BLACK
(+12 VDC)
(GROUND)
TO FUSE TO
POSITIVE BATTERY
BATTERY
POWER CABLE
P/N 17444
10 FT.
BLACK
(GROUND)
TO NEGATIVE
BATTERY
ORANGE
(+12 VDC)
BLACK - TO NEGATIVE
OPTIONAL RUN/HOLD CONNECTION
CUT JUMPER AND WIRE TO
SWITCH AS SHOWN
ORANGE +
BLUE –
MOTOR
MOTOR CABLE
P/N 17448
20 FT.
WHITE - TO POSITIVE
PUMP LEAD PUMP LEAD
© 2019 Micro-Trak Systems, Inc. • P/N 50236 •
Phone: (507)257-3600
Toll-Free: (800)328-9613
Email: trakmail@micro-trak.com
25A Manual Controller
Installation Instructions
RUN/HOLD
DUST COVER W/JUMPER
P/N 13100
3-PIN M/P 150 SHROUD
OPTIONAL 2-PIN M/P 280 MOTOR
EXTENSION CABLES
P/N 17445
P/N 17446
Optional Pressure Gauge Bracket
also available - P/N 14799
IMPORTANT!
Do not connect the motor
leads to the battery or power
supply. Resulting damage to
controller will not be covered
under warranty.
Cabling Details
Other Side
SPLICE
SWITCH SUPPLIED BY USER
(SWITCH CLOSED = RUN)
10' CABLE
20' CABLE
113021
