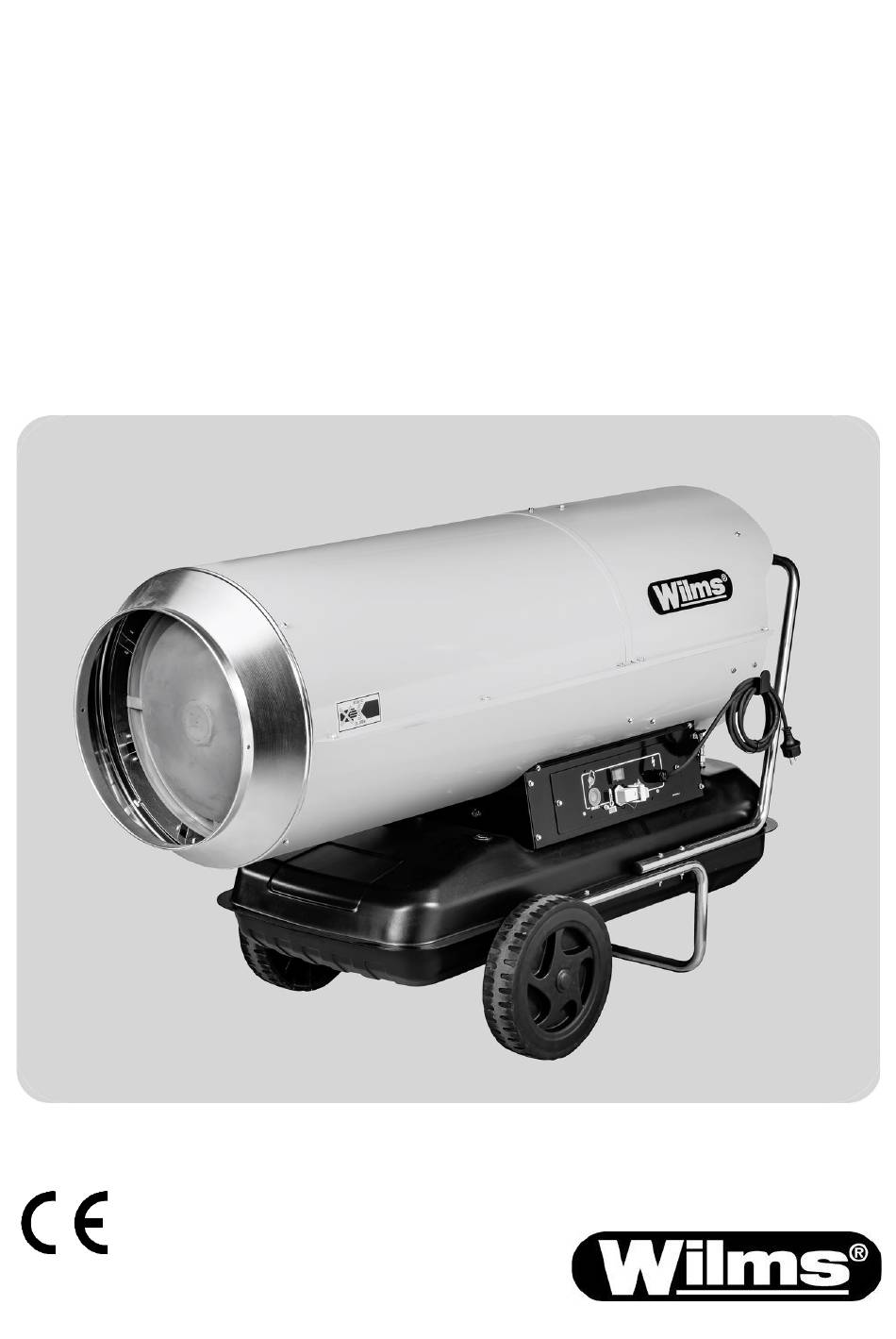

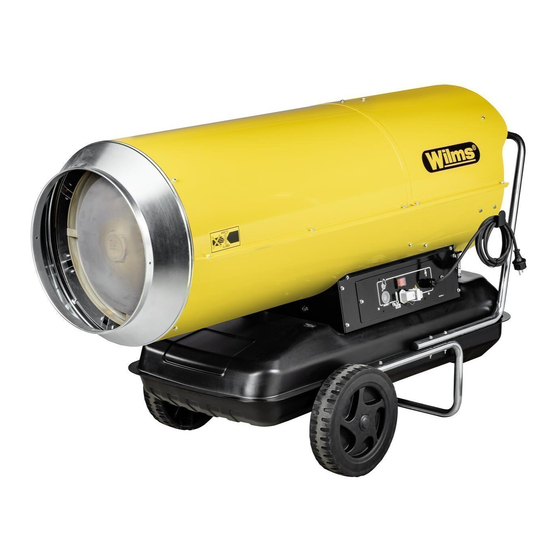

- Page 1 Operating Manual Oil Fired Heater B 380 Perfection on principle...
- Page 2 We herewith declare that the below described machine is designed, constructed and manufactured in accordance with the above mentioned EC directive. In case of an none authorized change of the machine this declaration loses its validity. Distributor Hans Wilms GmbH & Co. KG Erftstr. 34 D - 41238 Mönchengladbach Structure of the machine...
-
Page 3: Table Of Contents
O p e r a t i n g - a n d I n s t a l l a t i o n M a n u a l B 3 8 0 - H a n s Wi l m s G m b H & C o . K G Contents Operating Manual B 380 1. -
Page 4: Important Notice
O p e r a t i n g - a n d I n s t a l l a t i o n M a n u a l B 3 8 0 - H a n s Wi l m s G m b H & C o . K G 1. -
Page 5: Information In This Operating Manual
This manual contains information and procedures for the safe operation and maintenance of Hans Wilms GmbH & Co. KG hot air turbines series B 380. For your own safety and to protect yourself from injury, you must read the safety instructions in this manual carefully to familiarize yourself with them and to observe them at all times. -
Page 6: Important Notice - Read Carefully Before Operating
4. Important Notice – Read carefully before operating The B 380 warm air heater (WLE) is an oil-fired hot air turbine without heat exchanger in a mobile version. The hot air turbine must not be placed near explosive or highly flammable materials and must not be used in explosive and fire-hazardous rooms. - Page 7 O p e r a t i n g - a n d I n s t a l l a t i o n M a n u a l B 3 8 0 - H a n s Wi l m s G m b H & C o . K G When operating the hot air turbine, the accident prevention regulation "Heating, flaming and melting equipment for construction and assembly work"...
-
Page 8: Functional Description
O p e r a t i n g - a n d I n s t a l l a t i o n M a n u a l B 3 8 0 - H a n s Wi l m s G m b H & C o . K G 5. -
Page 9: Fuel System
- The storage of the fuel must be carried out in accordance with the applicable legal regulations. 8. Set Up The B 380 heater is installed at the place of use. Fill the fuel tank with clean, light heating oil EL or comparable fuel. Do not overfill, maximum 95 liters. -
Page 10: Operation
O p e r a t i n g - a n d I n s t a l l a t i o n M a n u a l B 3 8 0 - H a n s Wi l m s G m b H & C o . K G 9. -
Page 11: Storage And Transport
O p e r a t i n g - a n d I n s t a l l a t i o n M a n u a l B 3 8 0 - H a n s Wi l m s G m b H & C o . K G Fig.3 Fig. -
Page 12: Environmental Protection And Recycling
O p e r a t i n g - a n d I n s t a l l a t i o n M a n u a l B 3 8 0 - H a n s Wi l m s G m b H & C o . K G 12. -
Page 13: Technical Data
If in doubt, contact your dealer, your customer service center or the manufacturer! Technical specifications are subject to changes without prior notice! 14. Technical Data Type: B 380 Order number: 1081380 Capacity: 111,0 kW / 95460 kcal/h / 379.000 BTU/h Air volume: 3300 m³/h... -
Page 14: Spare-Parts List B 380
O p e r a t i n g - a n d I n s t a l l a t i o n M a n u a l B 3 8 0 - H a n s Wi l m s G m b H & C o . K G 15. Spare Parts List B 380 Pos. - Page 15 O p e r a t i n g - a n d I n s t a l l a t i o n M a n u a l B 3 8 0 - H a n s Wi l m s G m b H & C o . K G Exploded View B 380...
- Page 16 O p e r a t i n g - a n d I n s t a l l a t i o n M a n u a l B 3 8 0 - H a n s Wi l m s G m b H & C o . K G 15. Spare Parts List B 380 Page 2 Pos.
- Page 17 O p e r a t i n g - a n d I n s t a l l a t i o n M a n u a l B 3 8 0 - H a n s Wi l m s G m b H & C o . K G Exploded View B 380...
-
Page 18: Wiring Diagram
O p e r a t i n g - a n d I n s t a l l a t i o n M a n u a l B 3 8 0 - H a n s Wi l m s G m b H & C o . K G 17.
