Summary of Contents for WILMS BV 135

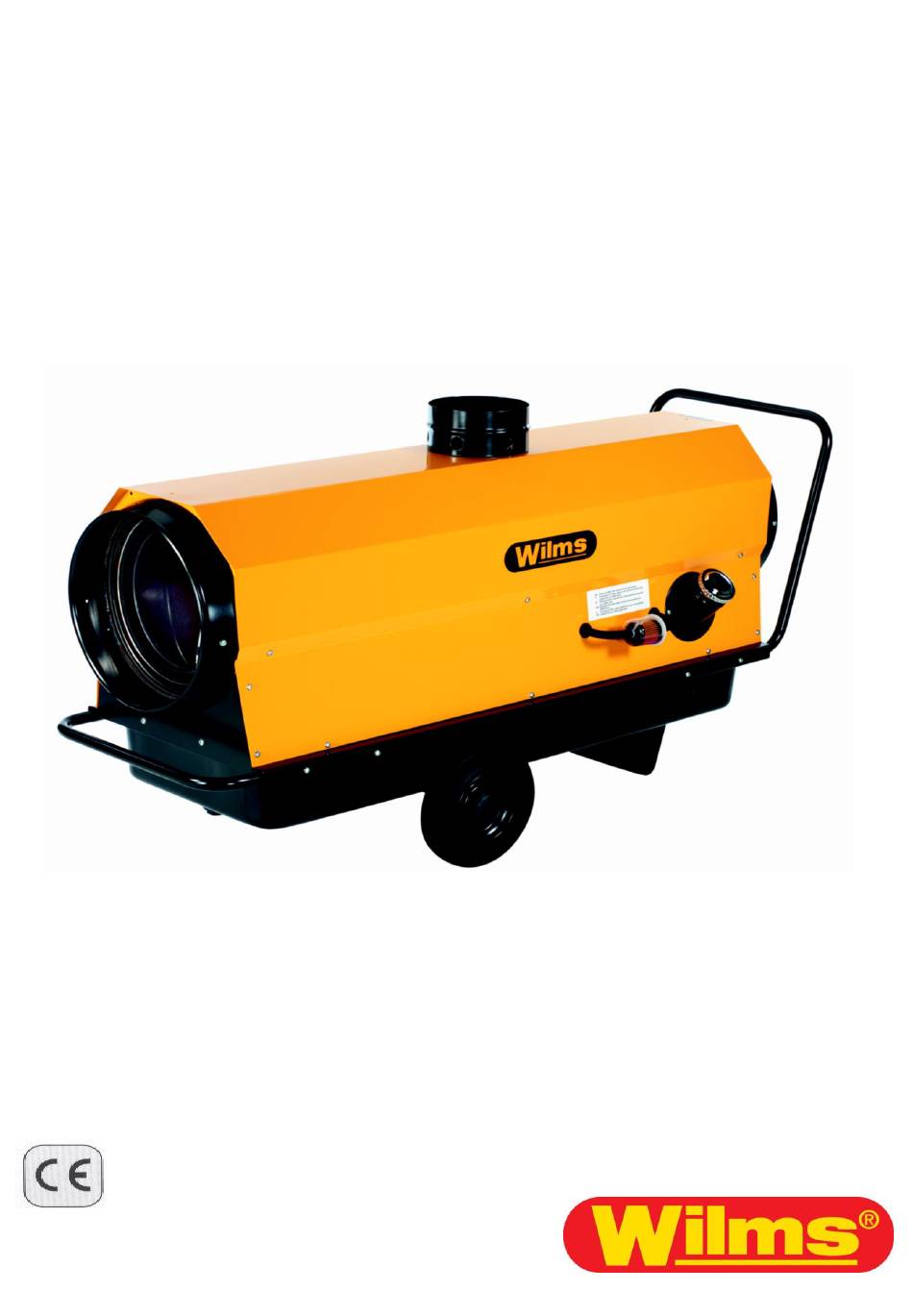

- Page 1 Operating Manual Oil Fired Heaters BV 135 Perfection is our aim.
- Page 2 Mobile oil-fired heaters ( with and without heat exchanger ) Description: BV 135 is designed, constructed and manufactured in accordance with the above-mentioned directive and the low voltage directive 2014 / 35 / EEC and also EMV 2014 / 30 EEC.
-
Page 3: Table Of Contents
Index Type BV 135 Page Important Notice Functional Characteristics Read carefully before operating Technical Data Starting Attention Operation „Heating without room-thermostat“ Operation „Heating with room-thermostat“ Operation with warm air hose Stopping Important Safety and control devices Room-thermostat Cleaning Cleaning of the fuel tank... -
Page 4: Important Notice
- 1 of 14 - Important Notice! Use only clean (if possible filtered) Heizöl EL (Diesel). Clean fuel filter regularly. A T T E N T I O N : Notice: Heizöl EL changes viscosity in low temperature. This heater is standard equipped with a fuel preheating device. This requires also during the heating interruptions (during the night, on weekends) tension, so it remains effective. -
Page 5: Functional Characteristics
- 2 of 14 - FUNCTIONAL CHARACTERISTICS The heater is equipped with mounted fuel tank, low-maintenance axial fan, high pressure spraying burner with automatic flame control, cable with plug, socket for room thermostat and quintuple filtersystem. Operating System: The fan runs after starting the heater or in case of heat demand. Fuel is drawn from the tank and pumped into the solenoid valve. -
Page 6: Read Carefully Before Operating
- 3 of 14 - READ CAREFULLY BEFORE STARTING YOUR HEATER! Important Notice! This unit is a space heater with indirect heating, heat exchanger and exhaust. The heater may not be set up near explosive or flamable materials and may not be used in explosion or fire endangered rooms. -
Page 7: Technical Data
- 4 of 14 - T E C H N I C A L D A T A Type: BV 135 Voltage V/Hz 230/50 Rated current 2,43 Nominal capacity 0,56 Protection IP 44 Capacity 24,8 kcal/h 21.300 Air volume m³ /h 1.500... -
Page 8: Starting
- 5 of 14 - Starting Only well instructed persons should start and work with the heater. Before starting the heater check for obvious defaults, proper setting up and as well the electr. supply. Ensure a stable set up of the heater. Fill the tank with clean Heizöl EL (Diesel). -
Page 9: Stopping
- 6 of 14 - Stopping of the heater Set main switch to pos. "O", or reverse the thermostat below the present state. If the heater has been running on position "Heating" (Heizen) it has an automatic cooling of the heater until it completely shuts off. Important! Pull the main plug only after the heater has cooled down and stopped. -
Page 10: Cleaning
- 7 of 14 - Cleaning The heater should be cleaned minimum once a year including combustion chamber and burner head. Also the fuel filter should be cleaned minimum once a year or even be changed depending on contamination level. Cleaning of the fuel tank If the heater has not been used for a longer period of time and also after each heating period clean the fuel tank by removing the drain plug on the bottom of the tank. -
Page 11: Trouble Shooting
- 8 of 14 - Trouble Shooting Repairs or service of electrical components may only be made by authorized specialists! Fault Cause Remedy Main switch on position 1, No electricity. Check if there is power. heater does not start Setting of room Reset thermostat. -
Page 12: Important Notice For Set-Up
- 9 of 14 - Important Notice These units are oil fired space heaters, equipped with a chimney connection. If connected to a chimney the installation should be made only according to the below drawing. The connection should be made only with a fixed chimney according to the regulations or an installed exhaust pipe as shown in the drawing. -
Page 13: Adjustment Of The Burner Head
- 10 of 14 - Adjustment of the burner head Measure A 4 mm Measure B 2 mm Measure C 0 mm Measure D 9 mm Measure E Between 2 and 3 (for approx. 12 % CO²) Burner Nozzle Danfoss 0,50 usgal/h 80° S Pump Pressure 12 bar Adjustment of the ignition electrode... -
Page 14: Wiring Diagram
- 11 of 14 - Wiring Diagram BV 135 Legend = Thermostat - Fan THZ = Tank Heating = Photocell = Socket for thermostat STB = Safety Thermostat = Controler - lower part = Solenoid Valve = Relays = Ingnition Transformer... -
Page 15: Spare Parts List / Exploded View
- 12 of 14 - Spare Parts List From machine no. 46-0001 Pos. Order-No. D E S C R I P T I O N Qty. 6162340 Cover 6162341 Fan Guard 6162318 Fan Housing 6162319 6162405 Engine 3308072 Coupling Motor-Pump 3309764 Pump 3300064... - Page 16 - 13 of 14 - Spare Parts List From machine no. 46-0001 Pos. Order-No. D E S C R I P T I O N Qty. 6162346 Fuel Tank 6162440 Gasket 6162441 Screw 6162347 Handle 6162444 Wheel 6162445 Ring 6162446 6162447 Fuel Line 6162483...
- Page 17 - 14 of 14 - BV 135 Exploded view...
