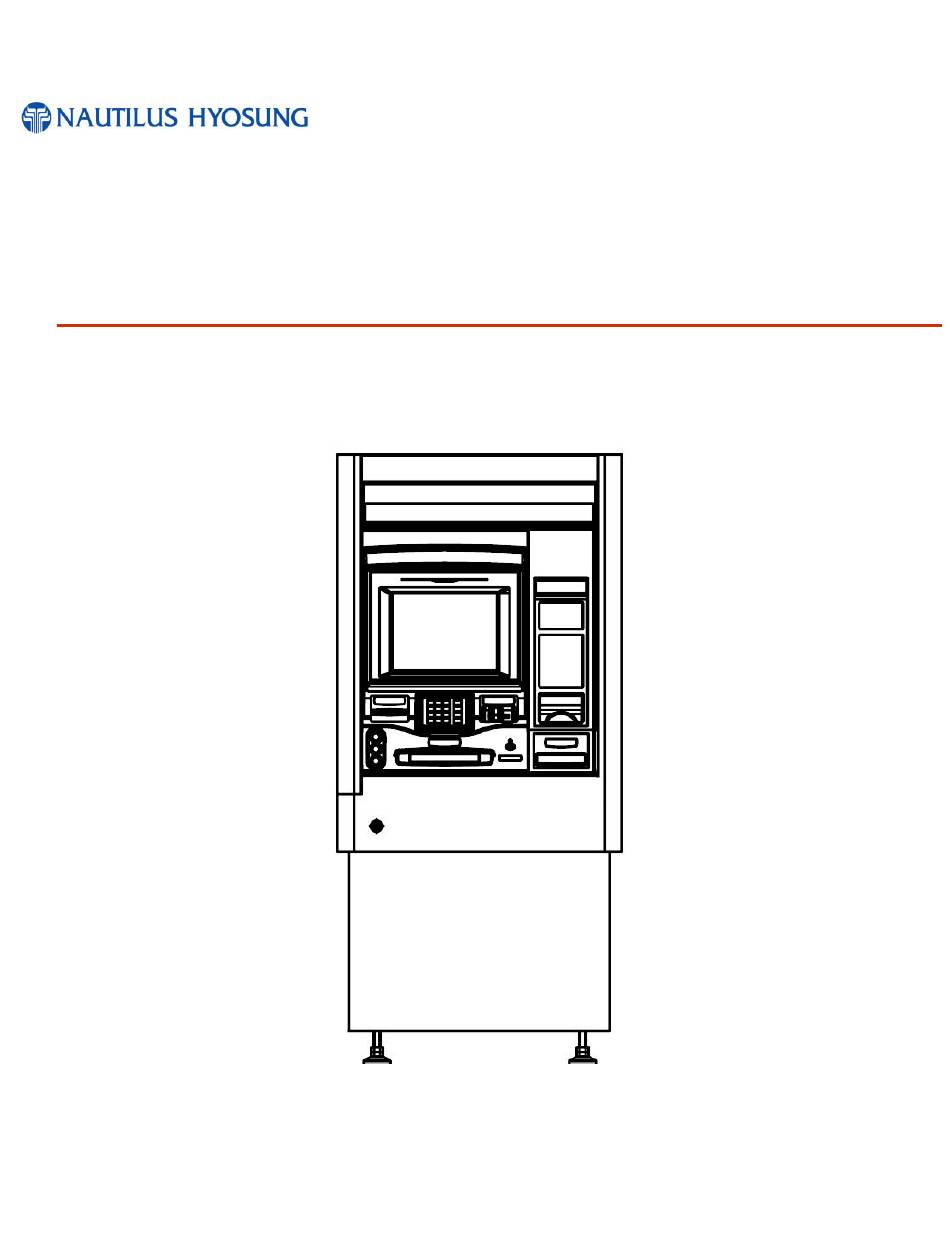

- Page 1 Installation Manual MX7600DR System V01.01.00 (2014.01) 2011 © Nautilus Hyosung Inc. All Rights Reserved.
- Page 2 New Publication V01.01.00 2014/02 Update to standard format and replace EDU-P to CCIM © Nautilus Hyosung Inc. All Rights Reserved. The content of this specification is protected by copyright laws. 2014. 02. 2nd Release © Nautilus Hyosung, Inc. All Rights Reserved.
-
Page 3: Table Of Contents
Hole Location for AC Cord & LAN Cable ....................4-7 Power Requirements ..........................4-7 Terminal Block Interface ........................... 4-8 Precaution ............................... 4-8 This is basic requirements before turn on the system ................4-9 Index ............................Index-1 Memo ............................Memo-1 © Nautilus Hyosung, Inc. All Rights Reserved. -
Page 4: Chapter1. Preface
Purpose ► This manual is produced to provide the guidelines for installers to comply with while installing it. ► This manual describes how to prepare for and to proceed the installation of MX7600DR in advance. Audience ► This manual is for persons related to installing MX7600DR in branches of banks, such as designers and construction workers of the branches and ATM installers, to work efficiently and conveniently. -
Page 5: Conventions
Camera Unit CASSETTE Cash & Check Cassette CCIM Cash & Check In Module Contactless Card Reader Cash Dispenser Unit Control Electronics Earphone Jack Voice Converter for Visually Disabled Persons (ADA) Europay, Mastercard, Visa © Nautilus Hyosung, Inc. All Rights Reserved. - Page 6 Recognition Module REJECT Reject Module RT/A6 Retract & A6 Cassette Switch Separator Control Module Sensor and Indications Unit Service Provider Slip Printer (Receipt Printer) Text Terminal Unit (OPL or SPL) Vacuum Fluorescent Display © Nautilus Hyosung, Inc. All Rights Reserved.
-
Page 7: Safety Precautions (English)
▪ Do not remove cover. Only a maintenance engineer is allowed to open the cover. ▪ Do not touch. You may receive electric shock. ▪ Make sure to turn off the power when servicing the equipment. © Nautilus Hyosung, Inc. All Rights Reserved. - Page 8 TYPE. DISPOSED OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS 3. FOR PLUGGABLE EQUIPMENT, THE SOCKET-OUTLET SHALL BE INSTALLED NEAR THE EQUIPMENT AN SHALL BE EASILY ACCESSIBLE 4. THE EQUIPMENT IS TO BE SECURED TO THE BUILDING STRUCTURE BEFORE OPERATION © Nautilus Hyosung, Inc. All Rights Reserved.
-
Page 9: Précautions Pour La Sécurité (French)
• Ne pas retirer le couvercle. Seul le technicien d'entretien est autorisé à ouvrir le couvercle. • Ne pas toucher. Vous pouvez avoir un choc électrique. • Assurez-vous d'éteindre l'appareil lors de l'entretien de l'équipement. © Nautilus Hyosung, Inc. All Rights Reserved. - Page 10 INCORRECT. DISPOSER POUR UTILISATION DES BATTRIES SELON LES INSTRUCTIONS 3. POUR LES APPAREILS RACCORDES, LA PRISE DOIT ETRE INSTALLEE PRES D’EQUIPEMENT POUR ÊTRE FACILEMENT ACCESSIBLE 4. L’EQUIPEMENT DOIT ETRE SECURISE A LA STRUCTURE DU BATIMENT AVANT D'UTILISER © Nautilus Hyosung, Inc. All Rights Reserved.
-
Page 11: Related Document
▪ Operator Manual ▪ Service Manual ▪ Error Code Manual ► For the contact of maintenance staffs of Nautilus Hyosung Inc., see the E-mail addresses and telephone numbers provided separately. © Nautilus Hyosung, Inc. All Rights Reserved. -
Page 12: Chapter2. Introduction
Chapter2. Introduction About the MX7600DR ▶ The MX7600DR ATM gives a new look for your customer as a drive-up-rear-access wall type ATM solution. This compact, convenient ATM can still be easily installed and operated with an economic cost. As well as offering traditional cash dispense functionality, both cash and checks can be deposited directly into the ATM. -
Page 13: System Identification Label
Installation Manual Chapter3. Installation Information System Identification Label ▶ The System Label below shows the layout of the product identification label which is fixed inside the side box of the ATM © Nautilus Hyosung, Inc. All Rights Reserved. -
Page 14: Chapter3. Installation Information
Chapter3. Installation Information Installation Condition and Space ► Installation Condition and Space When you determine the location of your MX7600DR ATM, ensure that the physical environment, including the temperature and humidity, meets the requirements. Following conditions should be met before installing equipment. -
Page 15: Packing Dimensions
The design of packing used on below picture is structured for shipping of MX-7600DR by load or air/sea freight. <Note !> Approximate weight of a boxed MX7600DR ATM is 700.0Kg [1543.23Ib]. Actual weight will vary depending on ATM component configuration. ATM Dimensions ▶... - Page 16 Installation Manual Chapter3. Installation Information © Nautilus Hyosung, Inc. All Rights Reserved.
- Page 17 Installation Manual Chapter3. Installation Information < Dimension of Outline > © Nautilus Hyosung, Inc. All Rights Reserved.
-
Page 18: Dimension For Tilt Angle
Installation Manual Chapter3. Installation Information Dimension for tilt angle ► Dimension for tilt angle The following diagrams show the dimensions for tilt angle of MX-7600DR ATM. < Default :10˚ > © Nautilus Hyosung, Inc. All Rights Reserved. - Page 19 Installation Manual Chapter3. Installation Information < 1Step 22° > < 2Step 35° > © Nautilus Hyosung, Inc. All Rights Reserved.
-
Page 20: Fascia Item Locations For Voice Guidance
Chapter3. Installation Information Fascia Item Locations for Voice Guidance ► Fascia Item Locations for Voice Guidance. Unit CCIM Symbol Distance 167.5mm 347.3mm 134.0mm 145.6mm From [6.59inch] [13.67inch] [5.28inch] [5.73inch] No.5 Key Clock Face Postion © Nautilus Hyosung, Inc. All Rights Reserved. -
Page 21: Recommended Installation And Service Clearance
MX-7600DR Hyousng recommends it is more convenient for your service personnel to have enough maintenance space as described below to service this ATM machine < Plane cross - Sectional View (RECOMMEND) > © Nautilus Hyosung, Inc. All Rights Reserved. -
Page 22: Minimum Installation And Service Clearance
To service Cash dispensing Module, we recommend secure enough space to open security door. ▪ The minimum angle of door open is 112˚ and the minimum distance from body for CDU reflection is 863.0mm [33.98 inch] 3-10 © Nautilus Hyosung, Inc. All Rights Reserved. -
Page 23: Wall Cut Plan
Installation Manual Chapter3. Installation Information Wall Cut Plan ▶ Wall Cut Plan < General View > < Wall Construction Plan “A” > 3-11 © Nautilus Hyosung, Inc. All Rights Reserved. - Page 24 2. The installation of a TTW is based on the floor from customer’s foot of outside building. 3. “The minimum maintenance space” should be secured in the rear of the TTW. 4. All the measurements shown on the plan, ± 5.0mm [0.2 inch] tolerance should be kept. 3-12 © Nautilus Hyosung, Inc. All Rights Reserved.
-
Page 25: Sensor Installation
Installation Manual Chapter3. Installation Information Sensor Installation ▶ Sensor Installation < Sensor of Installation > < Dimension of Sensor > 3-13 © Nautilus Hyosung, Inc. All Rights Reserved. - Page 26 Installation Manual Chapter3. Installation Information < Sensing Range > 3-14 © Nautilus Hyosung, Inc. All Rights Reserved.
-
Page 27: Chapter4. System Installation
5. If only the palette needs to be removed, lift the whole machine from the bottom and set it aside. < Straps that are fastened around the box > <Removing the nails from palette> © Nautilus Hyosung, Inc. All Rights Reserved. -
Page 28: Removing Equipment From The Palette
4. Moving this ATM machine to the installation site. PRECAUTION: MX7600DR ATM machine is very heavy equipment and can cause injuries if not handled with caution. Read the following carefully. ▪ Firmly close the vault door and lock the door by turning the knob completely. -
Page 29: System Positing
Installation Manual Chapter4. System Installation System Positing ▶ System Positing Position equipment through the opening in the wall and adjust its position © Nautilus Hyosung, Inc. All Rights Reserved. -
Page 30: Adjusting The Height
2. This ATM machine can fall if you turn the adjuster too much. Ø 65 3. Adjust the position of the machine so that the door can be opened and closed easily. 4. Use leveling tools to check if the machine is level © Nautilus Hyosung, Inc. All Rights Reserved. -
Page 31: Inserting The Collar Wing
▪ Unscrew the captive screw on the collar stop bracket inside the upper body. 2. Lift the collar wing so that the pin at the back of the bezel fits into the hole. 3. Push the collar wing in and then push it downward completely. © Nautilus Hyosung, Inc. All Rights Reserved. - Page 32 ▪ Seal both the top and the sides of the collar with silicone not to be absorbed with water. ▪ Remove excess silicone ▪ Do NOT apply silicone to the bottom of the collar for drainage. © Nautilus Hyosung, Inc. All Rights Reserved.
-
Page 33: Hole Location For Ac Cord & Lan Cable
For MX- Operating 319W Power dispensing) 7600DR with Requirements CCIM Stand-by 222W 4500.0mm AC Cord [177.16inch] Length of AC Cord 350.0mm AC Plug [13.77inch] Heat 0.35 KW = (during Heater Output 1195 BTU operation) © Nautilus Hyosung, Inc. All Rights Reserved. -
Page 34: Terminal Block Interface
MX-7600DR has system battery backup units as optional itself to grantee customer’s transaction safety when losing power status. This function will proceed the automatic safe shut down either. But we are recommending to use UPS system for power sourcing to ATM. © Nautilus Hyosung, Inc. All Rights Reserved. -
Page 35: This Is Basic Requirements Before Turn On The System
2. To avoid the risk of severe personal injury or death, use only a qualified electrical contractor to perform work on electrical circuits. © Nautilus Hyosung, Inc. All Rights Reserved. -
Page 36: Index
Installation Manual Index Index Index-1 © Nautilus Hyosung, Inc. All Rights Reserved. -
Page 37: Memo
Installation Manual Memo Memo Memo-1 © Nautilus Hyosung, Inc. All Rights Reserved.
