Response Electronics SAKP E Installation And Operating Instructions

433MHz Wirefree Remote Keypad (S KP E)
These instructions should be read in conjunction with
your System Installation and Operating Instructions
and be retained for future reference.
Introduction
The S KP E Wirefree Remote Keypad is designed for use
with Response Wirefree Intruder larm systems operating
on 433MHz only.
Transmit Low Battery
Indicator Indicator
LED LED
0
1 2 3
4 5 6
7 8 9

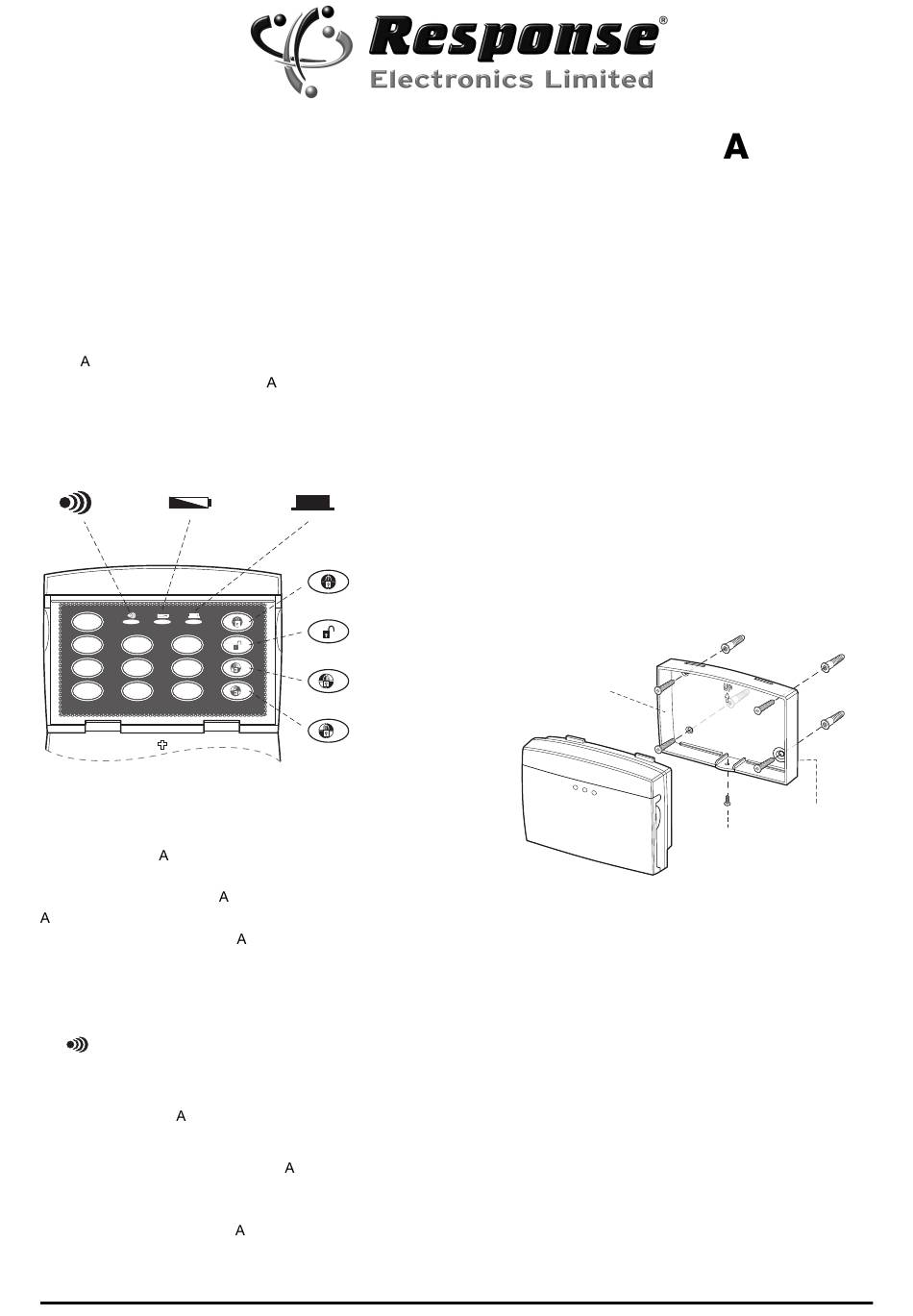

Fig. 1 Wireless Keypad Function Guide
The Wireless Keypad is used to control the system by using
a four digit User ccess Code. The Keypad incorporates
Panic and anti-tamper protection features that will
immediately initiate a Full larm condition when activated.
ny attempt to open the casing of the Keypad will
immediately initiate a Full
system is disarmed, (unless the system is in Service, Test or
Programming modes). In addition if a sequence of more
than 16 incorrect key presses is entered the Keypad will be
disabled for the next 1 minute. During this 1 minute duration
the LED will keep flashing slowly. Consecutively disabled
for 3 times, the Keypad will emit the tamper signal to the
Control Panel.
The Keypad's User ccess Code is independent from any
access codes used with a Control Panel.
The Keypad is powered by a 9V PP3 lkaline battery. Under
normal operating conditions this will provide an expected life
in excess of 1 year. When the battery level falls below an
acceptable level, the "LOW B TTERY" indicator on the front
of the Keypad will flash. When this occurs the battery should
be replaced as soon as possible
Installation and Operating Instructions
Key Pressed
Confirmation
Indicator LED
Arm
Disarm
1
Part-Arm 1
1
or Delay Arm
2
Part-Arm 2
2
or Delay Arm
larm condition even if the
.
Positioning the Keypad
The Keypad is rated IP44 and suitable for mounting
outdoors. The Keypad should be mounted in a position
close to the main entrance door so that the user access
code can be entered easily.
Ensure that the position selected for the Keypad is within
the effective range of the Siren or Control Panel.
Note: DO NOT fix the Keypad to metalwork or locate the
unit within 1m of metalwork (i.e. radiators, water pipes, etc)
as this could affect the radio range of the Keypad.
Installing and Configuring
the Keypad
If you have a system with a Control Panel, ensure it is in
Test or Programming Mode. If you have a system without a
Control Panel, ensure that the Siren is in Service mode.
Fig. 2
Wall Mounting Plate
1. Undo and remove the fixing screw from the bottom edge of
the Keypad and remove the wall mounting plate. (Fig. 2).
2. Using the mounting plate as a template, mark the
positions of the four fixing holes on the wall.
Note: To make the best use of anti-tamper protection
you must insert a wall plug and screw in the specified
hole (as illustrated).
3. Fix the mounting plate to the wall using the screws and
wall plugs provided, (a 5mm hole will be required for the
wall plugs). Do not over-tighten the fixing screws as this
may distort or damage the mounting plate.
Note: Installing the Keypad against a flat and smooth
wall is of great importance so as to avoid the tamper
switch being falsely triggered.
Note: The wall plugs supplied with the product are not
suitable for plasterboard walls, if mounting the Keypad
on to plasterboard use appropriate wall plugs.
Anti-Tamper
Protection
Fixing
Screw
