- Page 1 Installation, operation and maintenance manual GHUR intermediate cooler...

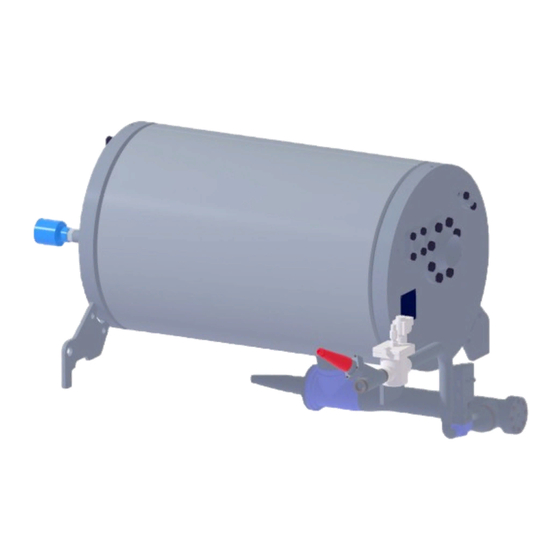

- Page 2 GHUR intermediate cooler Design GHUR is an open intermediate cooler. It is used in two-stage refrigeration plants for mixing of the discharge gas from the low-stage side and the two-phase fluid from the high-stage side. Option: for increased separator effect, a demister can be added. Function The low-pressure discharge line and the two-phase line from the high-pressure side, enter the vessel through the same end cover.
- Page 3 GHUR intermediate cooler Dimensions GHUR- Mixture Liquid type inlet inlet outlet outlet 0710 Ø703 0712 642.5 Ø703 0715 704.5 Ø703 Shipping The vessel is primed and delivered with blinded connections. The primer is not intended for outdoor storage. If the heat exchanger is not to be placed in imme- diate service, take precautions to prevent rusting or contamination.
- Page 4 GHUR intermediate cooler Make sure that no dirt or other unknown elements enter the vessel during installation. Do not remove protective plugs and covers until immediately before installation. The entire system must be clean before starting the operation. When fitting the tube connections, make sure that the load from the piping on the connections is kept small and insignificant as the vessel is not designed to be an anchor point in the piping system.
- Page 5 Johnson Controls Denmark recommends inspection to be carried out in monthly intervals during the running-in period. After a running-in period of six months, a mainte- nance plan must be made. Johnson Controls Denmark recommends inspection to be carried out every third month as a minimum.
- Page 6 GHUR intermediate cooler Environmentally correct removal The vessel does not contain environmentally damaging material such as asbestos, mercury or heavy metals. All parts of the vessel can be re-used after being scrapped. • Refrigerant and oil must be drained off before destruction •...
- Page 8 Johnson Controls Denmark ApS SABROE Factory Christian X's Vej 201 ∙ 8270 Højbjerg Denmark Phone +45 87 36 70 00 Version 2 www.sabroe.com...
