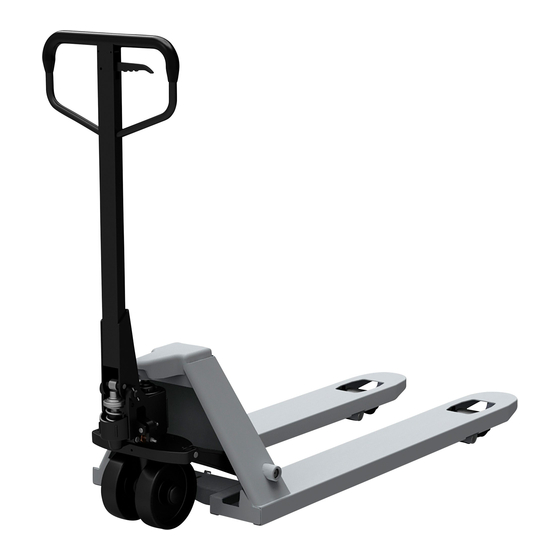

5500 lb. pallet truck
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
5500 lb. Pallet Truck
OWNER'S MANUAL
WARNING:
Carefully read and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other
basic safety precautions may result in serious personal injury.
Model # DB-5500LB
01272017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DB-5500LB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shop Tuff DB-5500LB

Summary of Contents for Shop Tuff DB-5500LB

  • Page 1 5500 lb. Pallet Truck OWNER’S MANUAL WARNING: Carefully read and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Model # DB-5500LB 01272017...

  • Page 2: Technical Specifications

    Thank you very much for choosing this product! For future reference, please complete the owner’s record below: Model: __DB-5500LB____ Purchase Date: _______________ Save the receipt, the warranty, and these instructions. It is important that you read the entire manual to become familiar with this product before you begin using it. This product is designed for certain applications only.

  • Page 3: Work Area

    WORK AREA • Keep work area clean, free of clutter, and well-lit. Cluttered and dark work areas can cause accidents. • Keep children and bystanders away while operating a pallet truck. Distractions can cause you to lose control, so visitors should remain at a safe distance from the work area. •...
  • Page 4 ASSEMBLY 1. Pull out the Spring Pin (2) and remove the Pin Shaft (1) – see Figure 1. 2. Insert the Handle Tube (3) into Position A. Connect the Handle Tube (3) and the Pump Body (5) using the Pin Shaft (1). 3.

  • Page 5: Operation

    OPERATION Check before using 1. After the assembly is complete, move the Trigger (12) into the three different positions (see below image). Be sure to check that the pallet truck operates in each position. Also trying rocking the Handle from side to side to ensure it is properly aligned and secured. 下降...

  • Page 6: Maintenance

    6. Set the forks at the lowest positions when the truck in not in use. 7. A pallet truck should not be used to carry people or animals. 8. Do not stand on the forks while the truck is stationary or moving. 9.

  • Page 7: Diagram & Parts List

    DIAGRAM & PARTS LIST B9 B45 B33 B32 B25 B24 B16 B17 B18 Part# Description Qty. Part# Description Qty. Handle Oiler 6 Big Wheel Shaft Roll Sheath Bolt M8x55 Spring Pin 5x28 Bearing 8111 Shaft 16x85 Supporting Base Shaft 20x152 Spring Pin 5x32 Spring Pin 5x35 Ring for Axle 55...
  • Page 8 DIAGRAM & PARTS LIST – Pump Assembly Part# Description Qty. Part# Description Qty. B101 Blade Spring B128 Spring 1.2x9.8x22 B102 Spring Pin 4x30 B129 Strike Pin B103 Roller B130 O-Ring 7x1.86 B104 Spring Pin 4x20 B131 Seat of Strike Pin B105 Spring Pin 6x30 B132...

  • Page 9: Warranty

    B120 Copper Washer 20 B147 Pump Plunger B121 Spring B148 Washer B122 Spindle Valve B149 Spring B123 Valve Seat B150 Dust Ring 18 B124 Ball 6.35 B151 Y-Ring 18 B125 Base B152 Piston Rod B126 Copper Washer 10 B153 Ring for Axle 8 B127 Plug M10x1 For replacement parts and technical questions, please call 1-218-943-6296.
