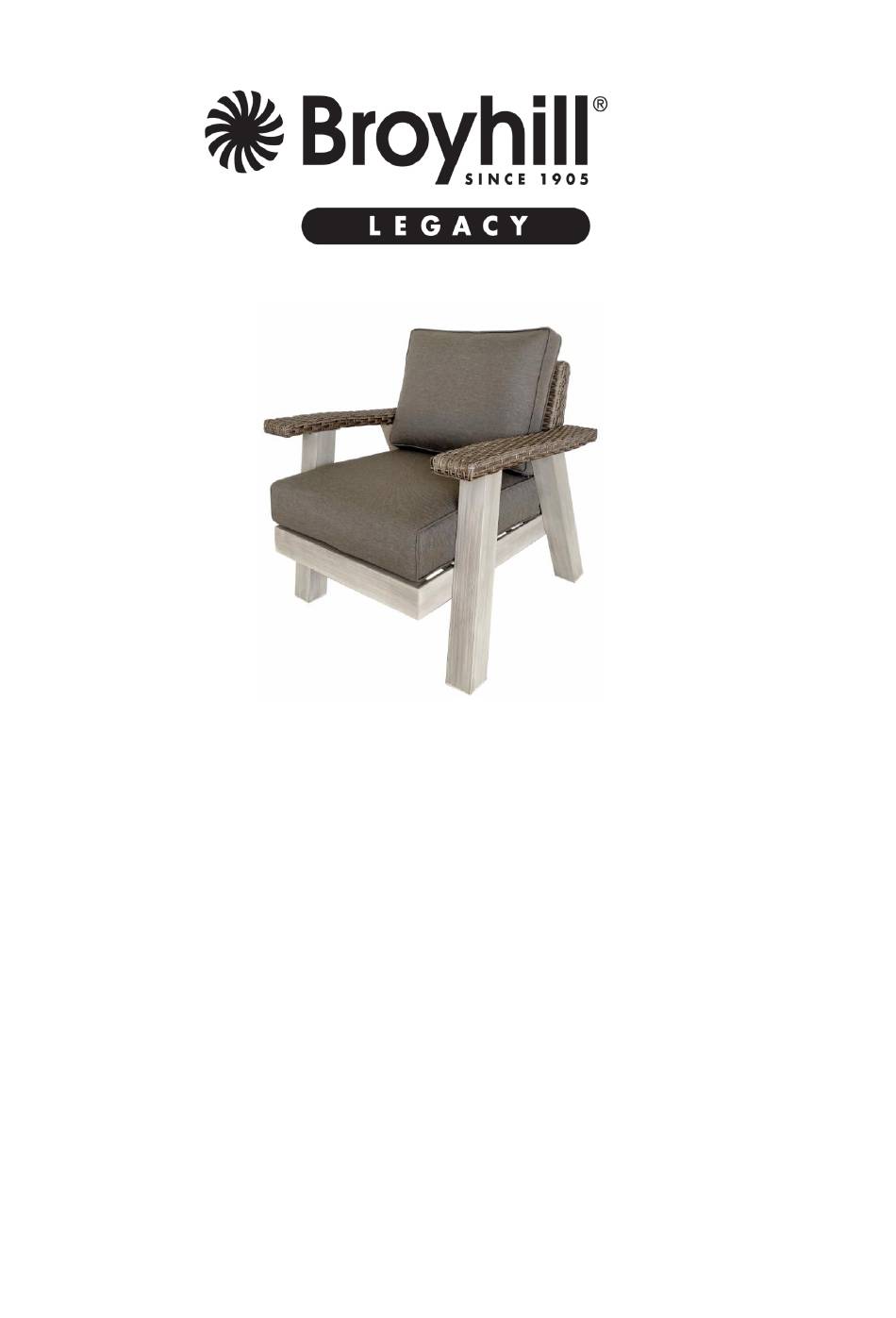

- Page 1 修改 ASSEMBLY INSTRUCTIONS ITEM# : GB21-812 SKU# : 810499639 ASHFORD AW WICKER CHAIR WITH CUSHION Need help? We are here for you! 1-888-733-8169 Toll Free Or email us at customerservice_01@yeah.net,customerservice_02@yeah.net customerservice_03@yeah.net...
-
Page 2: Maintenance
GENERAL BEST PRACTICE FOR ASSEMBLY: Read all instructions before starting Clear a flat covered space to begin assembly Always best to do it with a friend Note that hardware required is provided for every step Pay attention to orientation Helpful hints provided along the way Retain these assembly instructions for future reference. -
Page 3: Parts List
PARTS LIST: PARTS LIST Part No. Part Image Part No. Part Image Right Armrest Support Chair Back ( with two threaded hole) Seat Panel Frame Short Bolt (M6x15mm) Left Armrest Bolt (M6x28mm) Right Armrest Bolt (M6x41mm) Left Armrest Support Washer ( with one threaded hole) Right Armrest Support Back Cushion... - Page 4 STEP 1 STEP 1 PART REQUIRED: L3, R3, L4, R4, L5 & R5 Keep the bolts loose. Note: After assembled, keep all the threaded holes inwards. STEP 2 STEP 4 PART REQUIRED: 1 & 2 Keep the bolts loose.
- Page 5 STEP 3 PART REQUIRED: 1, 2, L3, R3, L4, R4, L5 & R5 Keep the bolts loose. STEP 4 PART REQUIRED: 1, 2, L3, R3, L4, R4, L5 & R5 Keep the bolts loose.
- Page 6 STEP 5 PART REQUIRED: 10 & 11 Finished! Warranty One-year limited warrantly. Proof of purchase (dated register receipt) is required for warranty claims. It remains the customer's responsibility for freight and packing charges to and from the service center.
