Acer V227Q Lifecycle Extension Manual page 8

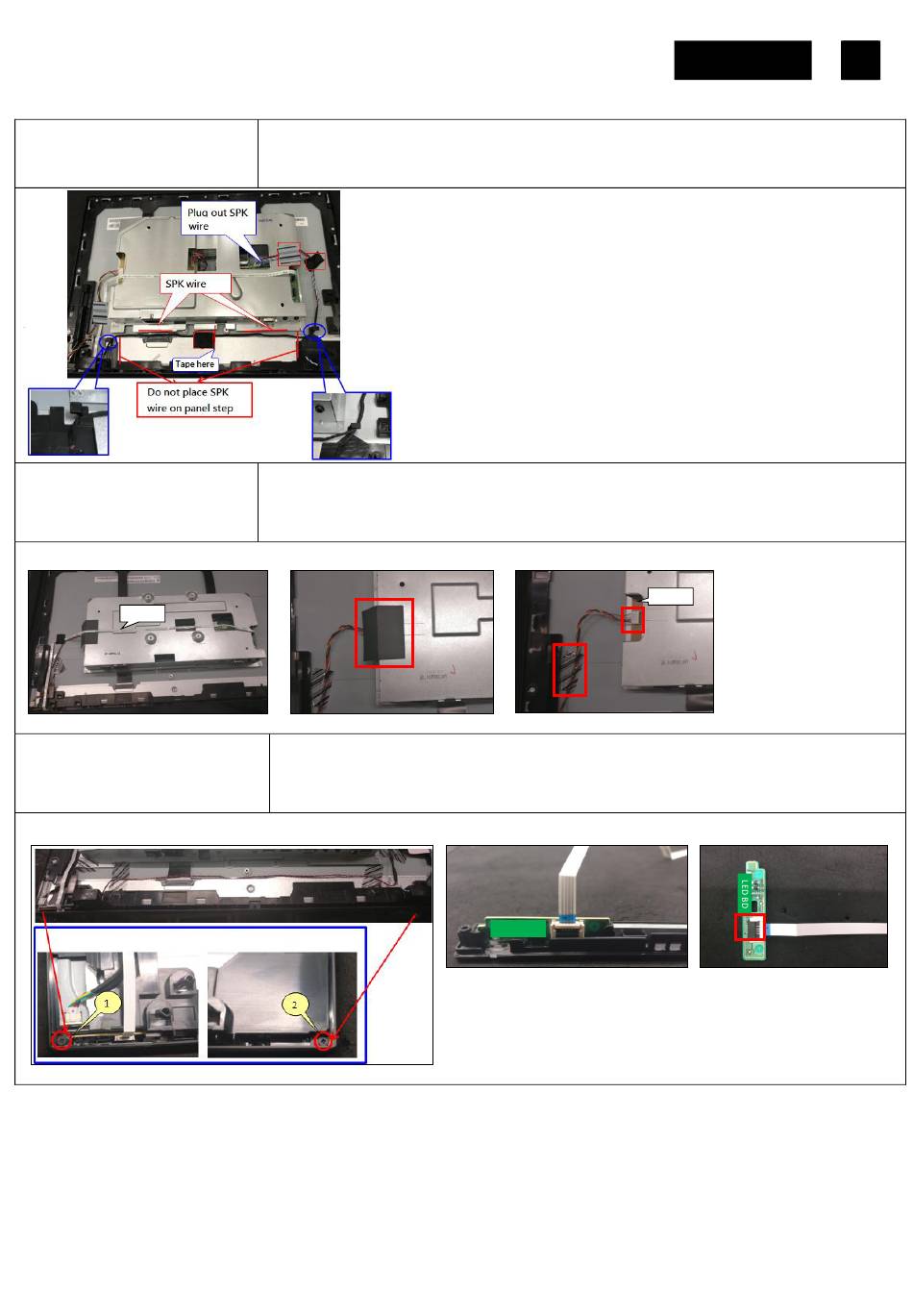

S3
Disassemble the speaker
from the MF
(Middle Frame)
S4
Disassemble the lamp wire
PICTURE 1
FFC LED
S5
Disassemble the Trim
PICTURE 1
Tear off tapes on the speaker wire.
Extract the connect of the speaker from the PCBA.
Disassemble the speaker from the MF.
Extract the FFC LED from the I/F BD. Tear off the FFC LED from the SHD as picture 1.
Tear off the Mylar on the left hole of the SHD as picture 2.
Tear off the BOPP tape on the lamp wire. Extract the big connector of the lamp wire form
the P/BD as picture 3.
PICTURE 2
Unlock two screws from the ASSY TRIM as picture 1.
Disassemble the ASSY TRIM from the MF. Disassemble the PCBA LED BD from the
ASSY TRIM as picture 2.
Disassemble FFC LED from the PCBA LED BD as picture 3
PICTURE 3
P/BD
PICTURE 2
LED BD
ACER V227Q
PICTURE 3
8
