Acer V227Q Lifecycle Extension Manual page 11

S2

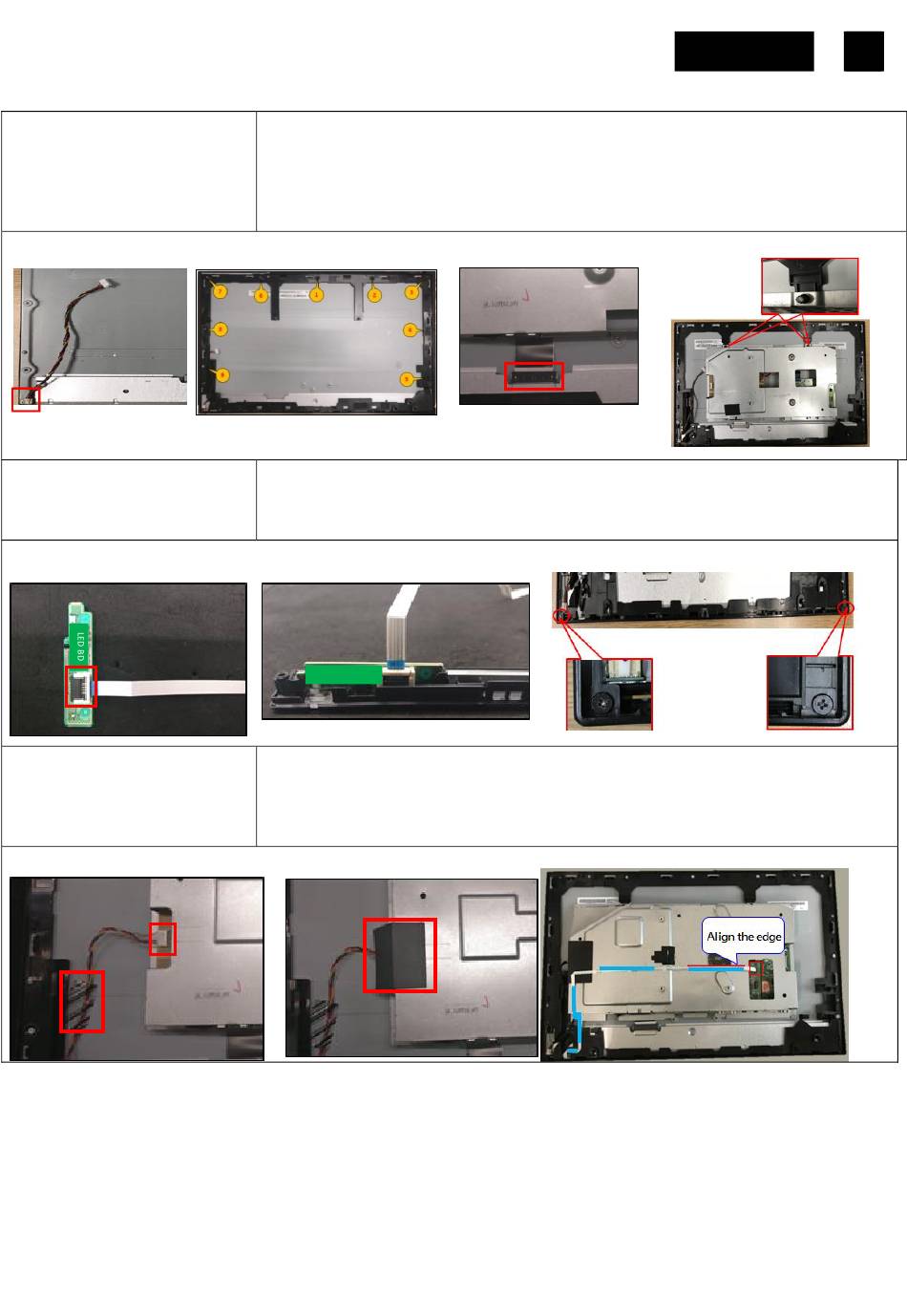

Assemble the MF and panel
PICTURE 1
S3
Assemble the ASSY TRIM
PICTURE 1
S4
Assemble the lamp wire
PICTURE 1
Take the Panel on the sponge cushion.
Insert the little connector of the lamp wire to panel as the picture 1, thread the lamp
wire out of the hole of the MF. Assemble the MF onto the panel.
Lock 9 screws to the MF as the picture as the picture 2.
Insert the FFC wire to the Panel as the picture 3.
Assemble the SHD on the MF as the picture 4.
PICTURE 2
Assemble FFC LED to the PCBA LED BD as the picture 1.
Assemble the PCBA LED BD into the ASSY TRIM.
Assemble the ASSY TRIM on the MF and lock two MD screws to the ASSY TRIM as
the picture 3
PICTURE 2
LED BD
Insert the big connector of the lamp wire to the P/BD .Stick 1 piece BOPP tape to
fasten the lamp wire as the picture 1.
Affix a Mylar on the left hole of the SHD as the picture 2. Tear off the four gums on
the FFC LED and stick the FFC LED on regular mark wire on the SHD as the picture
3. Insert the FFC LED into the I/F BD
PICTURE 2
PICTURE 3
PICTURE 3
PICTURE 3
ACER V227Q
PICTURE 4
11
