INSTRUCTION MANUAL
P305
Pedal Kit for Control Units

Advertisement

loading
Need help?

Need help?

Do you have a question about the P305 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jbc P305

Summary of Contents for jbc P305

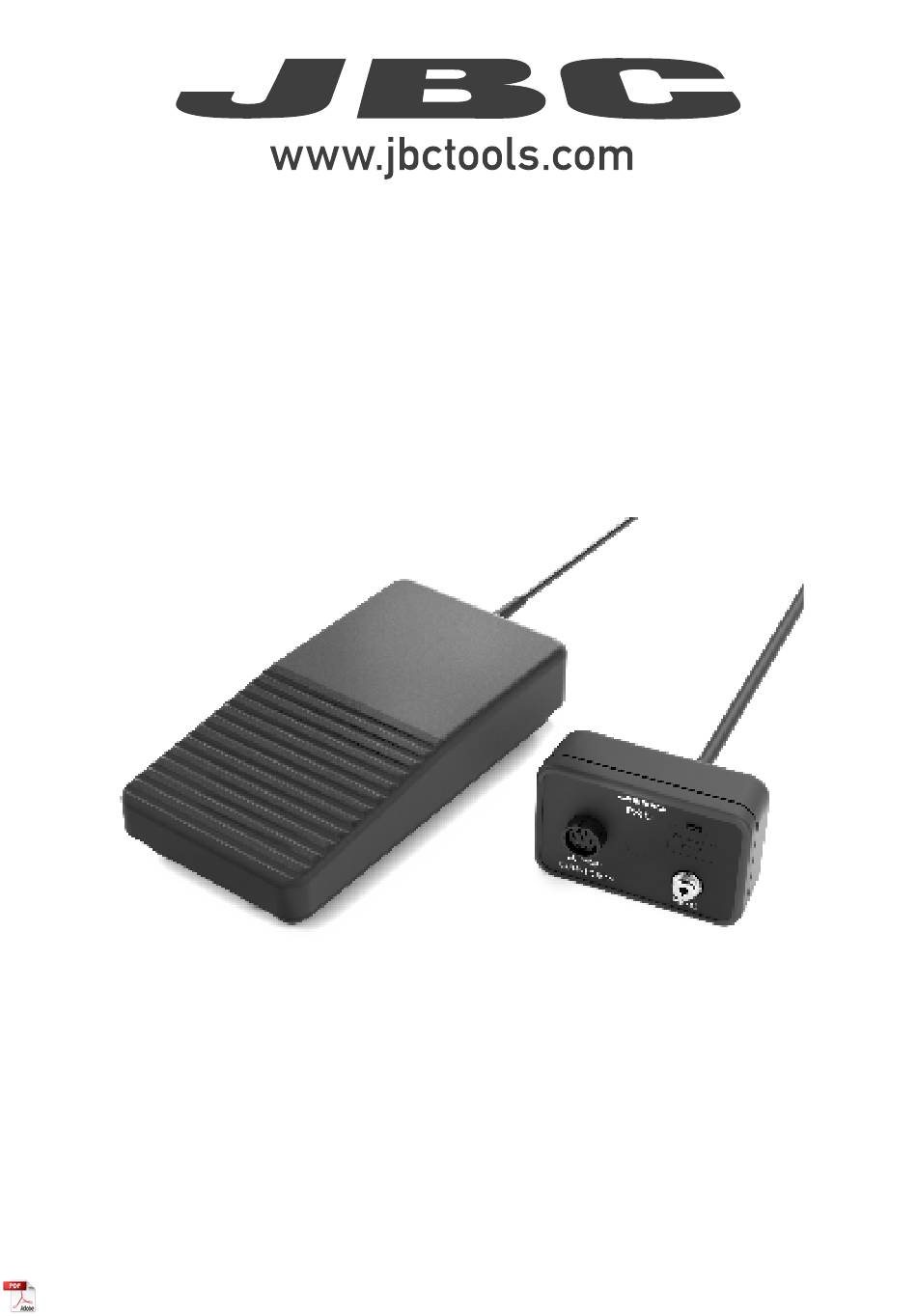

  • Page 1 INSTRUCTION MANUAL P305 Pedal Kit for Control Units...

  • Page 2: Packing List

    This manual corresponds to the following references: P-305 Packing List The following items are included: Pedal .............1 unit Adapter ............1 unit Manual ............ 1 unit Ref. 0028918...

  • Page 3: Connection Example

    To reverse the pedal functionality Adapter Switch choose: press to work > 1 2 3 Control Unit (normally open) Connectable control units: NC > release to work See connectivity table next page. (normally closed) Adapter for P305 Ref. 0028112 Tool Stand Pedal...
  • Page 4 Pedal Compatibility P305 is compatible with JBC devices as shown in the table in the highlighted column. P405* and P005* is also shown in the table below. Marked with means pedal P405/P005 cannot be connected directly to JBCs control unit. A module (MSE, MVE, MNE) must be used (See next pages “Pedal Set Up”).
  • Page 5 Pedal Set Up for - DIU (Control Unit) - WSU (Wire Stipper Station) In order for the tool not to heat up the component before the pedal is pressed, the station’s Sleep Delay and Hibernation Delay function must be set to 0 min. 1.
  • Page 6 Pedal Set Up for: - DDU, HDU (Control Units) Note: Peripheral moduls - MSE, MVE or MNE - are needed to connect the pedal to DDU y HDU. 1. Enter the Peripherals Menu and select the port which you want to join to the pedal. 19:29 Select port Port 2-PA...
  • Page 7 Pedal Set Up for DMU (Control Unit) Note: Peripheral moduls - MSE, MVE or MNE - are needed to connect the pedal to DMU. After connecting one of the mentioned moduls to the station a popup window opens. 1. To configure the module MSE/MVE/MNE press Setup in the popup window. 19:29 Peripherals Port...
  • Page 8 The Pedal is frequently used to rework components with tweezers. AN115 JBCs adjustable nano tweezers is the most effective tool for desoldering chip components but also it facilitates its rapid placement and soldering by using P405 pedal connected to JBC´s NAS station.
  • Page 9 Desoldering Iron For this operation JBC´s desoldering station DSS is needed. Solder Paste Dispensing Manual Solder Paste Dispenser Apply the solder paste amount needed to solder the new chip component. The use of JBC´s DPM solder paste dispenser is recommended.
  • Page 10 Placing Do not press the pedal. Use the tool to position the component on the previously tinned pad. Note: The inactive tool prevents the component from heating up prematurely. Soldering Once in position press and hold the pedal to activate the tool and perform the soldering.
  • Page 11 Notes...

  • Page 12: Specifications

    13.46 x 6.10 x 4.72 in / 1.73 lb Complies with CE standards ESD safe Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
