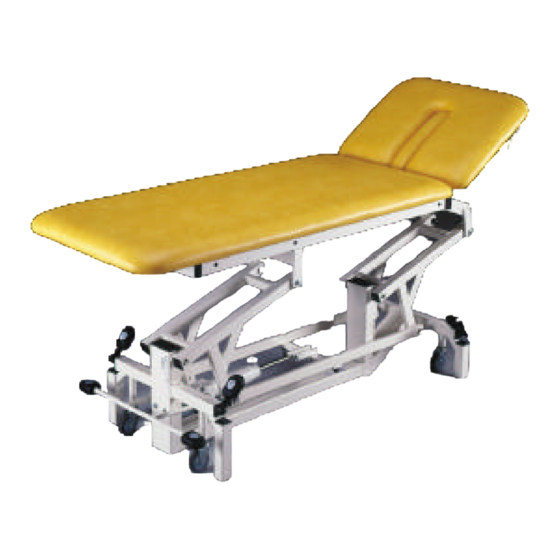

Summary of Contents for Hunleigh AKRON POPULAR 9221A

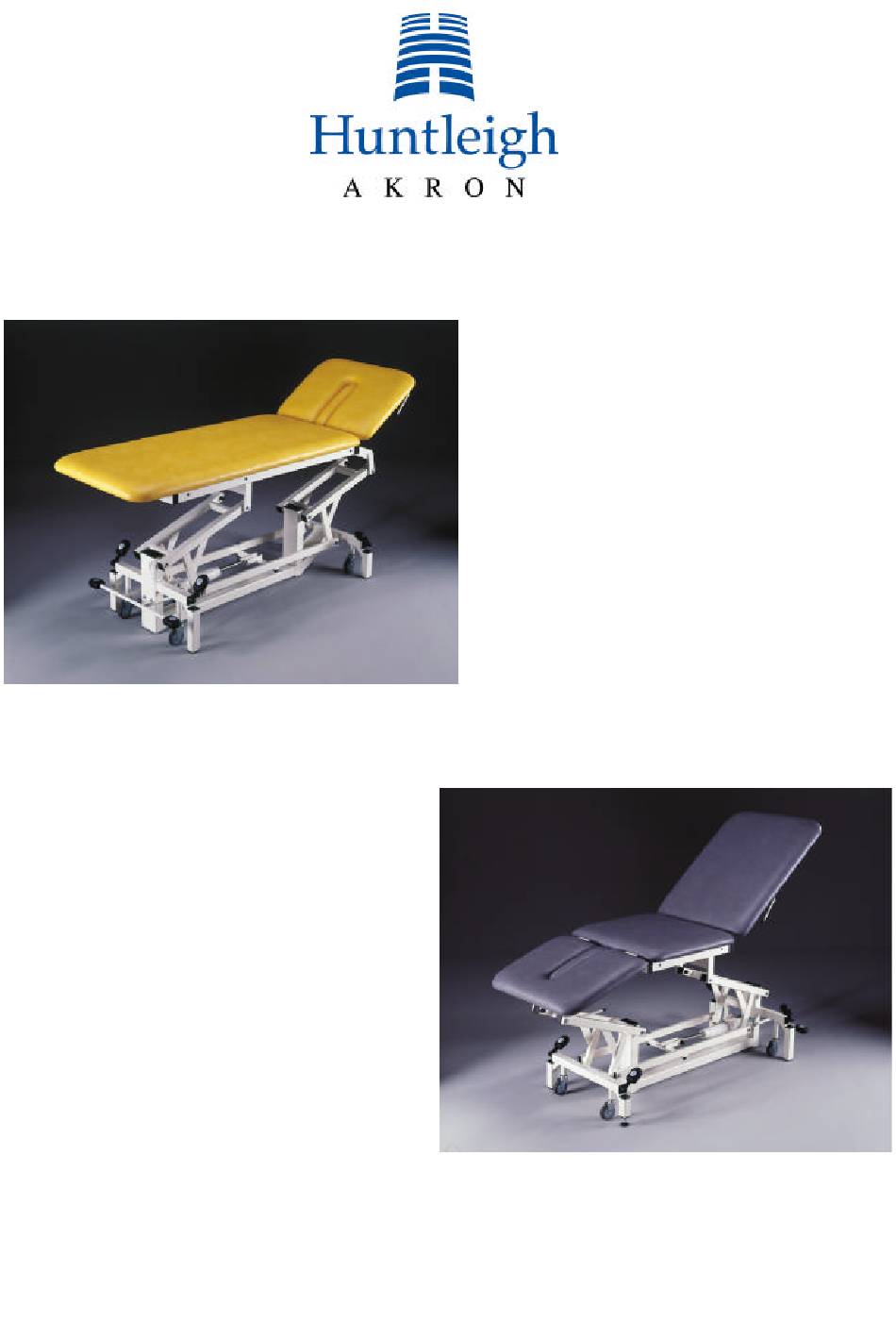

- Page 1 ® AKRON POPULAR Models 9221A, 9221B, 9221C, 9222A, 9222B, 9222C ® AKRON CONTINENTAL Models 9221A, 9221B, 9221C, 9222A, 9222B, 9222C USER MANUAL...
-
Page 3: Table Of Contents
AKRON 9221A, 9221B, 9221C, 9222A, 9222B, 9222C, 9231A, 9231B, 9231C, 9232A, 9232B, 9232C Contents Introduction Warnings, Cautions General Warnings Installation Operation Accessories – Operating Instructions Cot Sides Paper Roll Holder Gynae Stirrups Gynae Troughs Cyriax Horns Arm Support Hole & Horn Lean Back Frame Fixation Rails Cleaning and Decontamination... -
Page 4: Introduction
AKRON 9221A, 9221B, 9221C, 9222A, 9222B, 9222C, 9231A, 9231B, 9231C, 9232A, 9232B, 9232C 1. Introduction Always keep this Operating Manual available for reference. Warnings & Cautions WARNINGS Warnings identify possible hazards in procedures or conditions which, if not correctly followed, could result in death, injury or other serious adverse reactions. -
Page 5: Installation
AKRON 9221A, 9221B, 9221C, 9222A, 9222B, 9222C, 9231A, 9231B, 9231C, 9232A, 9232B, 9232C 2. Installation Adjustable Foot WARNING Lock castors before adjusting. Lock castors first. Adjust foot. Lock foot by tightening half nut. WARNING Do not insert the 2-pin mains connector directly into a 3-pin 13A mains outlet. Always use the adapter provided. -
Page 6: Operation
AKRON 9221A, 9221B, 9221C, 9222A, 9222B, 9222C, 9231A, 9231B, 9231C, 9232A, 9232B, 9232C 3. Operation Elevation Controls WARNING Safely position patient before elevating couch. Position all electrical cables away from the moving parts. Position Hand/Foot switch where accidental operation is not possible. Hydraulic Models PUMP PEDAL TO LIFT PEDAL TO... - Page 7 AKRON 9221A, 9221B, 9221C, 9222A, 9222B, 9222C, 9231A, 9231B, 9231C, 9232A, 9232B, 9232C 3. Operation Foot Bar Switch Press tube done to raise couch Lift tube up to lower couch Wheel Locking WARNING Lock couch wheels/castors prior to patient transfer or treatment. The retractable castors are not designed for transportation of patients.
- Page 8 AKRON 9221A, 9221B, 9221C, 9222A, 9222B, 9222C, 9231A, 9231B, 9231C, 9232A, 9232B, 9232C 3. Operation Head & Foot Sections CAUTION Support upholstery section while manually altering the angle. A & B Type Head Section Operating Lever Press lever UP to alter section angle. Support section when altering angle.
-
Page 9: Accessories - Operating Instructions
AKRON 9221A, 9221B, 9221C, 9222A, 9222B, 9222C, 9231A, 9231B, 9231C, 9232A, 9232B, 9232C 4. Accessories – Operating Instructions Cot Sides Raised Cot Side Lowered Cot Side To raise the cot side when in the down position, lift and rotate towards you, through 180°. Once upright, push the cot side downwards into the moulded block until located fully. -
Page 10: Gynae Troughs
AKRON 9221A, 9221B, 9221C, 9222A, 9222B, 9222C, 9231A, 9231B, 9231C, 9232A, 9232B, 9232C 4. Accessories – Operating Instructions Gynae Troughs Adjust Gynae Troughs to suit patient by :- Unlocking the locking knobs. Adjust position of trough. Tighten locking knobs. Cyriax Horns Adjust Cyriax Horns to suit patient by :- Unlocking the locking knobs. -
Page 11: Hole & Horn
AKRON 9221A, 9221B, 9221C, 9222A, 9222B, 9222C, 9231A, 9231B, 9231C, 9232A, 9232B, 9232C 4. Accessories – Operating Instructions Hole & Horn To fit Horn into Hole :- Simply locate horn into hole. Ensure horn is fully inserted prior to use. Lean Back Frame To adjust Lean Back Frame :- Remove locating pins from frame. -
Page 12: Cleaning And Decontamination
AKRON 9221A, 9221B, 9221C, 9222A, 9222B, 9222C, 9231A, 9231B, 9231C, 9232A, 9232B, 9232C 5. Cleaning and Decontamination WARNING Do not use Alkalis or other organic solvents for routine cleaning. Replace torn or damaged vinyl immediately. Always cover vinyl with fresh paper or sheet between patients. If contamination is known or suspected always decontaminate couch before use. -
Page 13: Maintenance
AKRON 9221A, 9221B, 9221C, 9222A, 9222B, 9222C, 9231A, 9231B, 9231C, 9232A, 9232B, 9232C 7. Maintenance Check couch visually before use. Carry out routine servicing every six months or more frequently if in heavy use. Routine servicing or repair must only be performed by suitably qualified person. WARNING Before commencing any maintenance activity, disconnect the couch from the electrical supply. -
Page 14: Warranty And Service
AKRON 9221A, 9221B, 9221C, 9222A, 9222B, 9222C, 9231A, 9231B, 9231C, 9232A, 9232B, 9232C 8. Warranty and Service (UK only) Huntleigh Akron’s standard terms and conditions apply to this couch. A copy is available upon request. These contain full details of warranty terms and do not limit the statutory rights of the consumer. For service or maintenance please contact: Service Department Huntleigh Healthcare... -
Page 15: Revision Status
AKRON 9221A, 9221B, 9221C, 9222A, 9222B, 9222C, 9231A, 9231B, 9231C, 9232A, 9232B, 9232C 8. Warranty and Service (UK only) Huntleigh Akron’s standard terms and conditions apply to this couch. A copy is available upon request. These contain full details of warranty terms and do not limit the statutory rights of the consumer. For service, maintenance and any questions regarding this, or any other Huntleigh Akron Product, please contact: Huntleigh Akron... -
Page 16: Technical Specification
AKRON 9221A, 9221B, 9221C, 9222A, 9222B, 9222C, 9231A, 9231B, 9231C, 9232A, 9232B, 9232C 10. Technical Specification 9221A 9222A 9221B 9222B 9221C 9222C Head Length (cm) 63±1.5 63±1.5 46±1.5 46±1.5 46±1.5 46±1.5 Foot Length (cm) 124±1.5 124±1.5 136.5±1.5 136.5±1.5 136.5±1.5 136.5±1.5 Width (cm) 63±1.5 63±1.5... - Page 17 AKRON 9221A, 9221B, 9221C, 9222A, 9222B, 9222C, 9231A, 9231B, 9231C, 9232A, 9232B, 9232C 10. Technical Specification 9231A 9232A 9231B 9232B 9231C 9232C Head Length (cm) 63±1.5 63±1.5 46±1.5 46±1.5 46±1.5 46±1.5 Mid Length (cm) 58±1.5 58±1.5 58±1.5 58±1.5 58±1.5 58±1.5 Foot Length (cm) 74±1.5 74±1.5...
- Page 18 AKRON 9221A, 9221B, 9221C, 9222A, 9222B, 9222C, 9231A, 9231B, 9231C, 9232A, 9232B, 9232C 10. Technical Specification IEC 601-1 Classification Check serial number label for classification 230v 115v 115v Double Insulated Double Insulated Class 1 Type B equipment Type B equipment Type B equipment Attention consult this Attention consult this...
- Page 20 Huntleigh Akron, 1 Farthing Road, Ipswich, Suffolk, IP1 5AP, England Tel: +44 (0) 1473 461042 Fax: +44 (0) 1473 462924 792-000-04...
Need help?
Do you have a question about the AKRON POPULAR 9221A and is the answer not in the manual?
Questions and answers

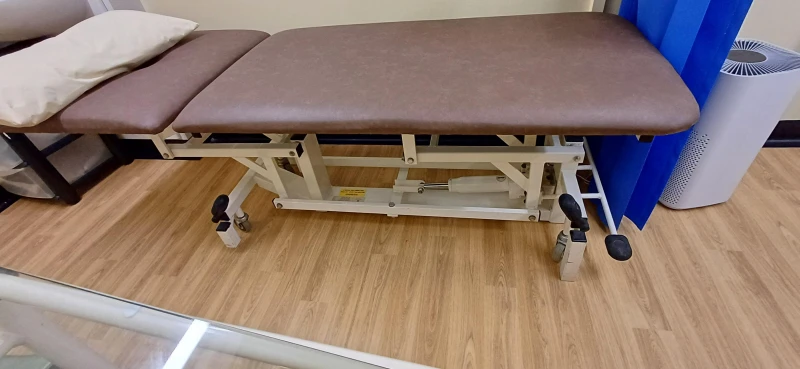

Hello, One of our clinical beds (model no 9221A) has stopped working - we are unable to adjust the height of the bed. Is this something that can be fixed? Thanks Annie
