Compak BOLT User Manual page 26

12. MAINTENANCE
12.3. GRINDING GROUP MAINTENANCE

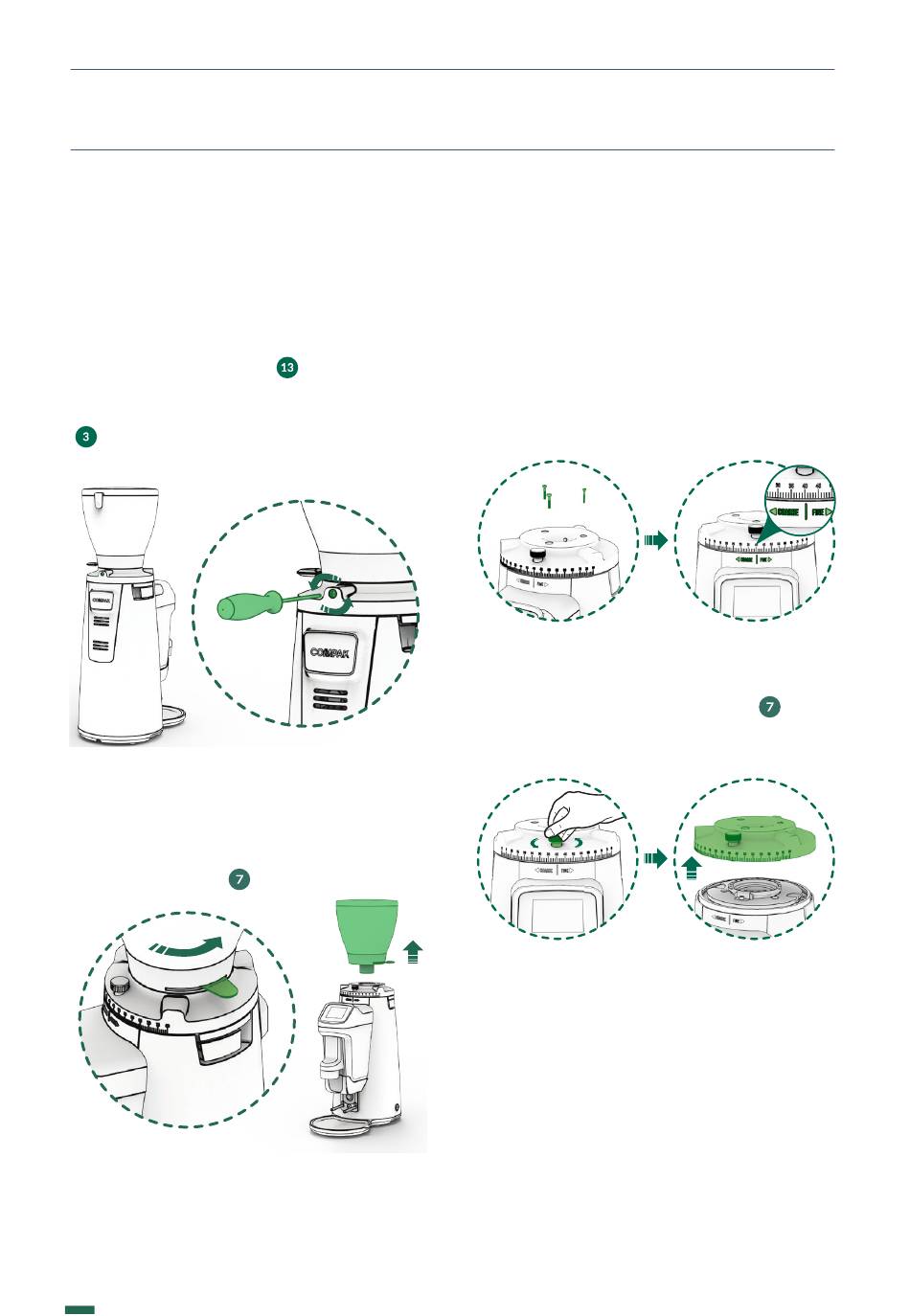

To perform grind chamber maintenance
please observe the following steps:
12.3.1. Turn off the grinder by making sure
the main power switch (
position. Disconnect the plug from the power
source. Loosen the hopper security screw
( ) using a Phillips head screw driver as
seen in (Fig. 1).
Fig. 1
12.3.2. Check that the shutter is in the closed
position before removing the hopper from
the grind regulator (
Fig. 2
26
) is on the OFF
) (Fig. 2).
From that point, if your grinder have "Lock
Load System" skip until the point 12.3.7 if
not, keep following the next the steps
12.3.3. Loosen the grinding regulator screws
using an Hex Allen screwdriver #3, according
to (Fig. 3). Before remove the regulator take
a look to the position in the scale and take a
note. (Fig. 4).
Fig. 3
12.3.4. Loosen the regulation break (
feels free from the Parallel (Fig. 5). Remove the
regulator by pulling up (Fig. 6).
Fig. 5
K09650H00 | PROC-CAL/002/03 USER MANUAL | V. 06/04/2022
Fig. 4
) until it
Fig. 6
