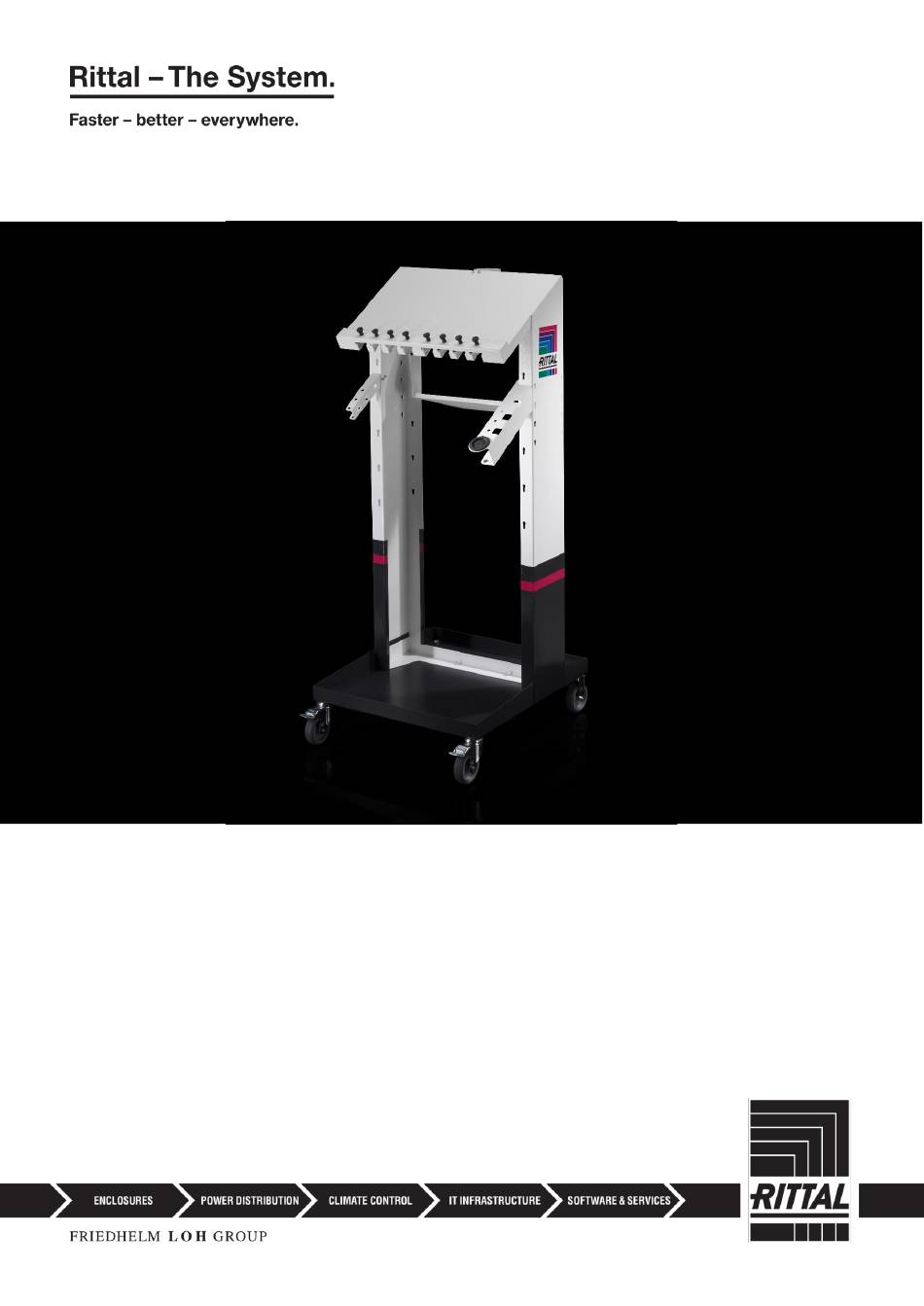

- Page 1 Wire Cart 4051.050 Assembly and operating instructions...
-
Page 2: Table Of Contents
Table of contents Table of contents Notes on documentation ............3 Retention of documents.............. 3 Symbols used in this document ........... 3 Intended use................3 Assembly ................5 Overview.................. 5 Assembly procedure ..............5 Required tools ................9 Operation ................10 Annex .................. -
Page 3: Notes On Documentation
1 Notes on documentation Notes on documentation This documentation serves mainly for the assembly of the Wire Cart. Retention of documents The assembly and operating instructions, together with all other applicable documents, are integral components of the product. They must be handed over to the persons dealing with the product and must always be available and on hand for operating and maintenance personnel. - Page 4 1 Notes on documentation Operating instructions in other languages can be found on our website: Click here! Wire Cart...
-
Page 5: Assembly
4 Assembly Assembly Note: The assembly/installation may only be carried out by appropri- ately trained specialist personnel. Overview Fig. 1: Wire Cart construction + accessory options Legend: 1. Tool holder S 2. Tool holder XL 3. Swivel castor with brake 4. - Page 6 2 Assembly Fig. 2: Removal of packaging Mounting the castors: 1. Mount the Swivel castor with brake by tightening from above with a hex- agon head screw (M10x30) and a washer (A10.5) and from below with a washer (A10.5), a spring washer (A10.7) and then a hexagon nut (M10). 2.
- Page 7 4 Assembly Tool holder S left: 1. Tighten the tool holder on the left side from the front with 2x screws (M5x12) and washer (A5.3) and from the back with 2x nuts (M5). Fig. 4: Mounting tool holder S Wire Cart...
- Page 8 2 Assembly Tool holder XL right: 1. Tighten the tool holder on the right side from the front with 2x screws (M6x16) and washers (A6.4) and from the rear with 2x washers (A6.4), 2x spring washers (A6.5) and 2x nuts (M6). Fig.
-
Page 9: Required Tools
4 Assembly Required tools Designation Size Illustration Allen wrench 1x 4mm, 1x 5mm Open-end 1x 17 mm spanner or 1x 8 mm, ring spanner 1x 10 mm Cordless screwdriver or TX20 or TX25 screwdriver Wire Cart... -
Page 10: Operation
3 Operation Operation The operation of the product is not changed by these accessories. Warning! ◼ The prescribed maximum load and the maximum load of the individual accessories according to the technical data must be observed. ◼ In order to minimise the risk of tipping, all attachments on the universal screen holder must be designed so that the centre of gravity is located as centrally as possible above the four castors. -
Page 11: Annex
4 Annex Annex Scope of delivery Item Description Qty. Figure Wire Cart frame pre-as- sembled, consisting of: rail box, jacket, tray and universal adaptor for tablets/monitors Fixed castor Swivel castor with brake Hexagon head screw Hexagon nut Washer Spring washer Tool holder S left, con- sisting of: 1x tool angle S... -
Page 12: Technical Data
4 Annex Tool holder XL right, consisting of: 1x tool angle XL 2x screws M6x16, per 1 4x washers A6.4, 2x spring washers A6.5, 2x nuts M6 Storage shelf Tab. 1: Scope of delivery Technical data Value Unit Dimensions W x H x D 640 x 700 x 1500 Weight approx. - Page 13 4 Annex 7111.900 (125 x 85 mm) Cable 7111.000 shunting ring (125 x 65 mm) 7112.000 (85 x 43 mm) Tab. 3: External mounting options Wire Cart...
-
Page 14: Warranty
5 Warranty Warranty The warranty conditions can be found in the current Rittal sales and delivery conditions on our website. Note: Any intervention by third parties during the warranty period re- leases the manufacturer from its warranty obligations. Customer service addresses ◼... - Page 15 ◾ Climate Control ◾ IT Infrastructure ◾ Software & Services You can find the contact details of all Rittal companies throughout the world here. www.rittal.com/contact RITTAL GmbH & Co. KG Auf dem Stuetzelberg · 35745 Herborn · Germany Phone +49 2772 505-0...
