INSTALLATION AND SERVICE MANUAL

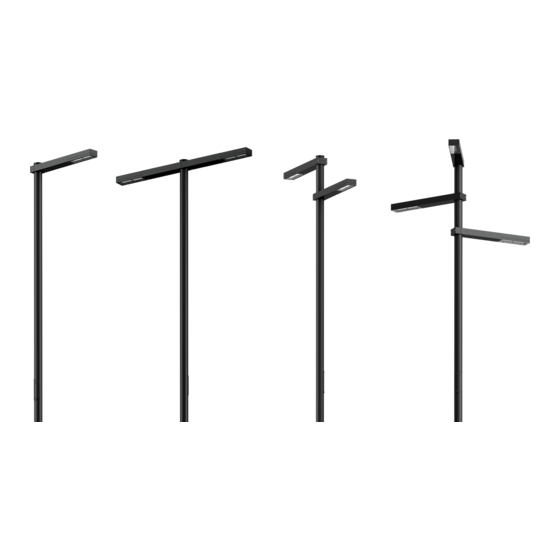

For Installation of Light linear Denver street and area lighting.
Model.DE-20001-20004, DE-20011-20014, DE-20021-20024 and DE-20031-20034.
Product drawing (dimensions)
Ø114
DE-20001-20004
■ LIGMAN standard products are supplied with the control gear 220-240V 50/60Hz.
The control gear for other voltages and frequencies is available upon request, please consult us for more details.
■ LIGMAN luminaires are designed to conform IEC 60598 2-1 standard.
Technical amendments and modifications techniques reserved.
L i g m a n L i g h t i n g
Europe Headquarters
Ligman Europe s.r.o.
VGP Park Usti nad Labem, P 2
Prestanov 113
403 17 Prestanov
Czech Republic
Tel. +420 608 740 504
sales.cz@ligman.com
|
www.ligman.com
Ø114
DE-20011-20014
Thailand Headquarters
Ligman Lighting Co., Ltd.
17/2 Moo 4, Monthong, Bangnampreaw
Chachoengsao 24150 Thailand
Tel : +66 (2) 7339140
info@ligman.com
M DE-20001/18/08/17/REV.2
Ø114
DE-20021-20024
1/2
IP65 IK07 CLASS I
Ø114
DE-20031-20034
2
TOOL
Ligman Ltd
Regus House, Victory Way
Crossways Business Park
Dartford DA2 6QD
Tel. 0800 975 0622
sales.uk@ligman.com
FM-TS-13-1/13-03-2561/REV.4
Advertisement
Related Manuals for LIGMAN DE-20001-20004
Summary of Contents for LIGMAN DE-20001-20004
- Page 1 DE-20011-20014 TOOL ■ LIGMAN standard products are supplied with the control gear 220-240V 50/60Hz. The control gear for other voltages and frequencies is available upon request, please consult us for more details. ■ LIGMAN luminaires are designed to conform IEC 60598 2-1 standard.
- Page 2 Push ² CABLE SIZE : 3x1.0mm Torque :1.3Nm. Torque :2.5Nm. MAIN CABLE Torque :4.3Nm. POWER SUPPLY Torque :0.4Nm. Torque :2.5Nm. ²- ² CABLE SIZE : 1mm M DE-20001/18/08/17/REV.2...
