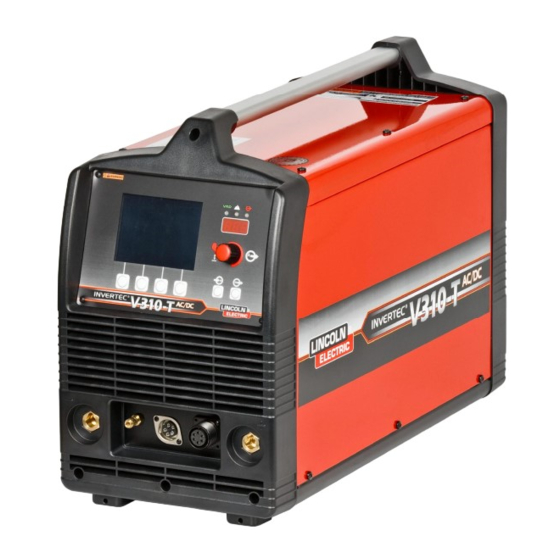

Lincoln Electric INVERTEC V310-T AC/DC Operator's Manual

Hide thumbs Also See for INVERTEC V310-T AC/DC:

Advertisement

Quick Links

Download this manual
IM2017
05/2008
Rev. 0
®
INVERTEC
V310-T AC/DC
MANUALE OPERATIVO
BEDIENUNGSANLEITUNG
MANUAL DE INSTRUCCIONES
MANUEL D'UTILISATION
BRUKSANVISNING OG DELELISTE
GEBRUIKSAANWIJZING
BRUKSANVISNING
INSTRUKCJA OBSŁUGI
KÄYTTÖOHJE
LINCOLN ELECTRIC ITALIA S.r.l
Via Fratelli Canepa 8, 16010 Serrà Riccò (GE), Italia
www.lincolnelectric.eu

Advertisement

loading
Need help?

Need help?

Do you have a question about the INVERTEC V310-T AC/DC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lincoln Electric INVERTEC V310-T AC/DC

Summary of Contents for Lincoln Electric INVERTEC V310-T AC/DC

  • Page 1 IM2017 05/2008 Rev. 0 ® INVERTEC V310-T AC/DC MANUALE OPERATIVO BEDIENUNGSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'UTILISATION BRUKSANVISNING OG DELELISTE GEBRUIKSAANWIJZING BRUKSANVISNING INSTRUKCJA OBSŁUGI KÄYTTÖOHJE LINCOLN ELECTRIC ITALIA S.r.l Via Fratelli Canepa 8, 16010 Serrà Riccò (GE), Italia www.lincolnelectric.eu...
  • Page 2 été conçu en conformité avec les normes: og er produsert og testet iht. følgende standarder: EN 60974-1, EN 60974-10 (2007) Dario Gatti European Engineering Director Machines LINCOLN ELECTRIC ITALIA S.r.l., Via Fratelli Canepa 8, 16010 Serra Riccò (GE), Italia 12/05...
  • Page 3 07/06 Do not dispose of electrical equipment together with normal waste! In observance of European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE) and its implementation in accordance with national law, electrical equipment that has reached the end of its life must be collected separately and returned to an environmentally compatible recycling facility.
  • Page 4 Per ogni futuro riferimento, compilare la tabella sottostante con le informazioni di identificazione equipaggiamento. Modello, Codice (Code) e Matricola (Serial Number) sono reperibili sulla targa dati della macchina. VIELEN DANK! Dass Sie sich für ein QUALITÄTSPRODUKT von Lincoln Electric entschieden haben. •...
  • Page 5 Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages caused by improper installation, improper care or abnormal operation.
  • Page 6 EQUIPMENT WEIGHT OVER 30kg: Move this equipment with care and with the help of another person. Lifting may be dangerous for your physical health. CYLINDER MAY EXPLODE IF DAMAGED: Use only compressed gas cylinders containing the correct shielding gas for the process used and properly operating regulators designed for the gas and pressure used.
  • Page 7 Connect the gas hose from • With "l1" in the "I"(ON) position, the welding the TIG torch to the gas machine is operational and there is voltage between connector (B) on the front of the positive (+) and negative (-) Terminals in stick the machine.
  • Page 8 Figure B.4 Figure B.4c Weld Sequence Diagram Parameter Display The Parameter Display Section shows the Mode Push Button Indicators selected parameter its display icon and preset value. To change the value, rotate the push The Weld Sequence Diagram shows the various button/rotary encoder.
  • Page 9 Push button B: Trigger Modes TIG Trigger Sequences TIG welding can be done in either the 2-step or 4-step mode. The specific sequences of operation for these two trigger modes are explained below. 2-Step TIG Sequence With the 2-step trigger mode and a TIG welding mode selected, the following welding sequence will occur.
  • Page 10 As shown here, after the Push button C: TIG Pulse Modes TIG torch trigger is Pulse On quickly pressed and Turns on pulse welding in TIG mode. released from step 3A, it Changes the sequence diagram to Pulse TIG is possible to press and and allows the adjustment of the following hold the TIG torch trigger added parameters:...
  • Page 11 Welding Parameters Rotating the encoder knob will scroll through the setup parameters shown in Table B.4. Selected parameters The following parameters are adjustable on the V310-T are changed in one of two ways: AC/DC. (See Table B.3) Parameter Range Parameter Parameter For parameters like background current (shown in Figure Symbol...
  • Page 12 Setup Menu Parameters Parameter Symbol Selection / * Default Value Parameter Number Description See Figure B.7 Set Up menu Exit • N.A. Reset All Parameters • Start Current Set Unit • • Bi-Level Current 2 Set Unit • • Pulse Background Current Units •...
  • Page 13 Lincoln Electric. Before installing the machine, the operator must check the work area for any devices that may malfunction because of electromagnetic disturbances.
  • Page 14 Technical Specifications V310-T AC/DC: INPUT Voltage Phase Frequency 208-460 Vac 1 / 3 ph 50-60 Hz RATED INPUT and OUTPUT @ 40°C Input Rated Output Current / Voltage / Duty Cycle Input Current @ Rated Output Phase Voltage (Duty Cycle: Based on a 10 min. period) 200 A / 18.0 V / 100% 13.6 A 220 A / 18.8 V / 60%...
