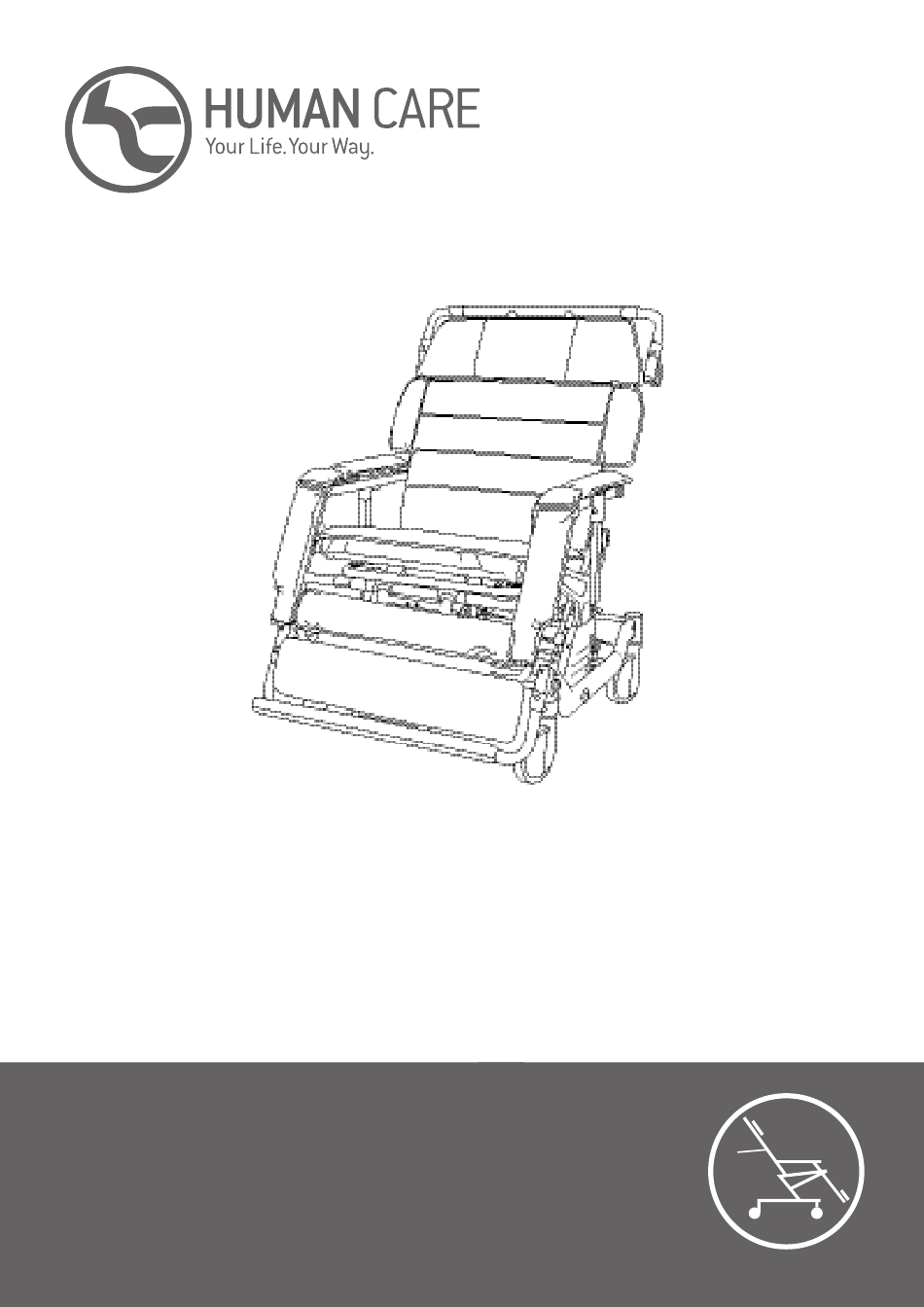

- Page 1 Service Manual Barton I Series Convertible Chair I-400 Model no. B1041-TS-GEL I-700 Model no. B1071-TS-GEL...
- Page 2 Contents Care and Maintenance Required Tools Service Checklist Maintenance Checklist Maintenance Parts Casters Frame Mechanical Cushions PTS System Inspection Checklist Replacement Parts...
- Page 3 Service Checklist The following components must be checked: Maintenance Parts Casters Use only Human Care parts for maintenance and service of 1. Caster operation this product. This guide includes a list of available parts (see: 2. Caster pedal clearance Replacement Parts). Whenever a recommended replacement is 3.
- Page 4 PTS System Cushions 1. Replacement and Adjustment There are two versions of the PTS system for the I-400 (one Ensure that all cushions are operating as intended and are not for home care use and one for hospital use) and one for the damaged or missing components.
- Page 5 Inspection Checklist Final Inspecction and Test Check Record Model I-400 Serial Number Prepared by I-700 Date Location Casters Good Unacceptable Additional Comments Checked for caster lock function Checked for caster free function Checked two front casters swivel locked at 0º and 180º Checked clearance between foot pedal and cross rail Checked brake pedal linkages Firm and secure fitting...
- Page 6 Replacement Parts Unit of Part No. Description Measure Cushions t4002-117 Back Cushion, I-400 t4007-117 Back Cushion, I-700 t4004-117 Calf Cushion, I-400 t4008-117 Calf Cushion, I-700 t4006-117 Head w/Support, I-400 t4010-117 Head w/Support, I-700 t4042-117 Footrest Assembly, I-400 t4043-117 Footrest Assembly, I-700 t4055-117 Seat Cushion, I-400 t4311-117...
- Page 7 Patient Transfer System I-400 Part No. Description Unit of Measure b1028 14” Post Bed, Standard b1031-10 Mattress Cover, Non-Slip b1056 Transfer Bar, Standard b1079 Sheet Clip, Plastic b1080 Plastic Plug, Black b1190 Extruded Bed Clamp Assembly b1073 Transfer Strap, Grey 58” Complete system : Model no.b2001c (home care use) Patient Transfer System I-400 Part No.
