PRODUCT MODEL NUMBERS
Electrical: A 115-Volt, 60-Hz., AC-only 15- or
20-amp fused, grounded electrical supply is
required. It is recommended that a separate circuit
serving only your refrigerator be provided. Use an
outlet that cannot be turned off by a switch. Do not
use an extension cord.
NOTE: Before performing any type of installation,
cleaning, or removing a light bulb, turn the control
(Thermostat, Refrigerator or Freezer control
depending on the model) to OFF and then
disconnect the refrigerator from the electrical
source. When you are finished, reconnect the
refrigerator to the electrical source and reset the
control (Thermostat, Refrigerator or Freezer
control depending on the model) to the desired
Water: A cold water supply with water pressure
between 30 and 120 psi (207 and 827 kPa) is
required for the water dispenser and ice maker.
IMPORTANT: The pressure of the water supply
coming out of a reverse osmosis system going to
the water inlet valve of the refrigerator needs to be
between 30 and 120 psi (207 and 827 kPa).
If a reverse osmosis water filtration system is
connected to your cold water supply, the water
pressure to the reverse osmosis system needs to
be a minimum of 40 to 60 psi (276 to 414 kPa).
" (1.25 cm)
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.

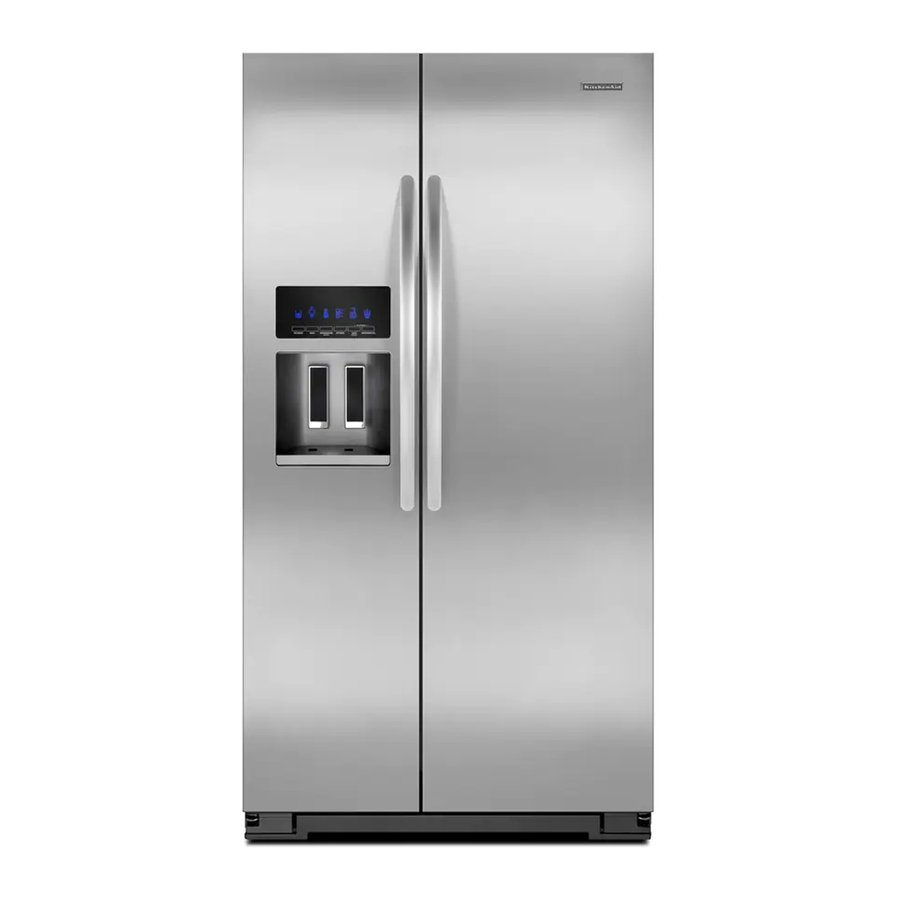

Side by Side Refrigerator
2" (5.08 cm)
Handle and door style will vary
Dimensions "C" and "D" include
To ensure proper ventilation for your refrigerator, allow for
each side and at the top. Allow for 1" (2.54 cm) of space behind the refrigerator. If
your refrigerator has an ice maker, allow extra space at the back for the water line
connections. When installing your refrigerator next to a fixed wall, leave a 2"
(5.08 cm) minimum space on each side (depending on your model) to allow the
doors to swing open.
Normal minimum cabinet cut-out width required for product installation is 36"
(91.44 cm). However, if the product is placed against an extended wall and the
ability to remove the crisper pans is desired, an additional 18" (45.72 cm) of cabinet
width is required, so a total cabinet opening width of 54" (137.16 cm) is
NOTE: Do not install the refrigerator near an oven, radiator, or other heat source, nor
in a location where the temperature will fall below 55°F (13°C).
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
" (1.9 cm).
" (1.25 cm) of space on
