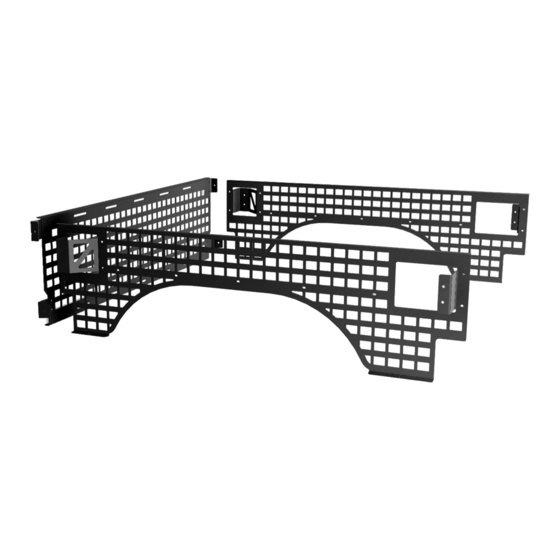

INSTRUCTION GUIDE
Congratulations on your purchase of a high quality PUTCO
you need any application or technical assistance, feel free to call us at:
Monday-Friday 8:00am - 5:00pm (Central Standard Time)
Contact your PUTCO
PLEASE READ ALL INSTRUCTIONS BEFORE INSTALLATION
AND CHECK TO SEE THAT ALL PARTS ARE INCLUDED
REQUIRED TOOLS
3/16" HEX KEY
7/32" HEX KEY
5MM WRENCH
RAM 2500/3500
1-800-247-3974
dealer for other quality accessories.
®
T30 TORX DRIVER
10MM WRENCH
CONTENT LIST
`
DESCRIPTION
Molle Side Plates
Single-Flange Side Mounting Brackets
Double-Flange Side Mounting Brackets
M6 Torx-Head Bolt
Rubber Feet
Jam Nuts
3/4" Well Nut
3/8"-16 X 1.5" Allen Head Bolt
5/16"-18 X 2 3/8" Allen Head Bolt
In-Bed Washer
Nut Plate
Flat Brackets – for 8-foot beds
product. Should
®
QT Y
2-4
2-4
2-4
1956XXI
1
2
2
2
2
2
20
3
3
2
2
2
Advertisement
Table of Contents
Related Manuals for PUTCO MOLLE PANELS RAM 2500
Summary of Contents for PUTCO MOLLE PANELS RAM 2500

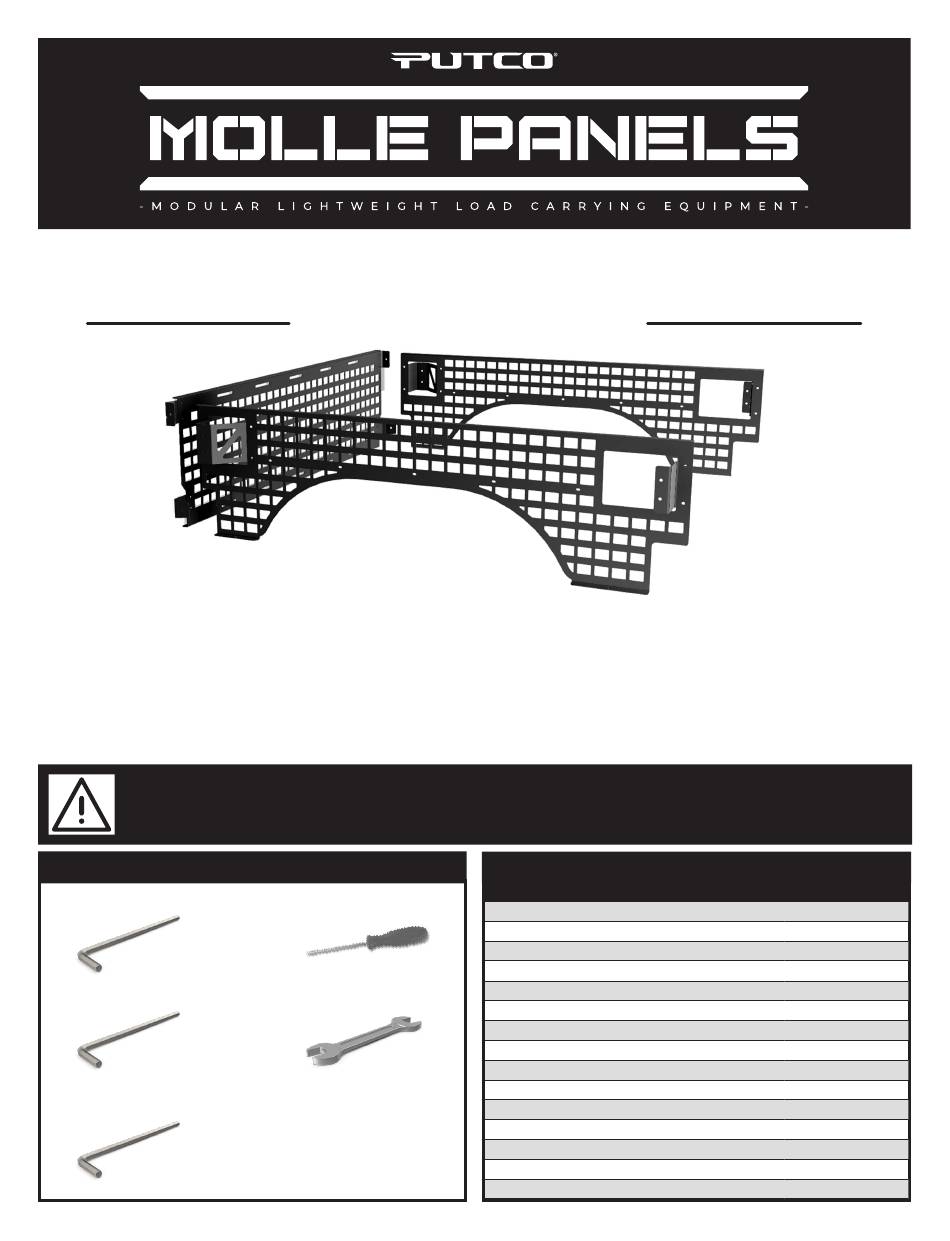

- Page 1 INSTRUCTION GUIDE RAM 2500/3500 Congratulations on your purchase of a high quality PUTCO product. Should ® you need any application or technical assistance, feel free to call us at: 1-800-247-3974 Monday-Friday 8:00am - 5:00pm (Central Standard Time) Contact your PUTCO dealer for other quality accessories.
- Page 2 MOLLE Panels Instruction Guide INSTALLATION INSTRUCTIONS Begin by gathering both of the Single-Flange Side Mounting Brackets and both of the Double- Flange Side Mounting Brackets. Single-Flange Bracket Double-Flange Bracket Your Ram 2500 / 3500 is equipped with 4 removable tie-down hooks that are fastened to the side of the bed.
- Page 3 MOLLE Panels Instruction Guide For Ram 2500 / 3500 with 8-foot beds, we’ve included a pair of additional flat brackets. These mount in the slots located above the wheel wells and are fastened in place using the same method as the Front Upper Brackets from the previous step. Next, locate the two remaining Front Lower Brackets.
- Page 4 MOLLE Panels Instruction Guide Fasten all three molle plates to their brackets using the provided Torx-head screws and a T30 Torx driver. Screw the rubber feet in the front plate down until they are snug against the bed floor, then lock the feet in place by tightening the jam nut against the front plate using a 10mm wrench.
