Summary of Contents for ATEN AP106

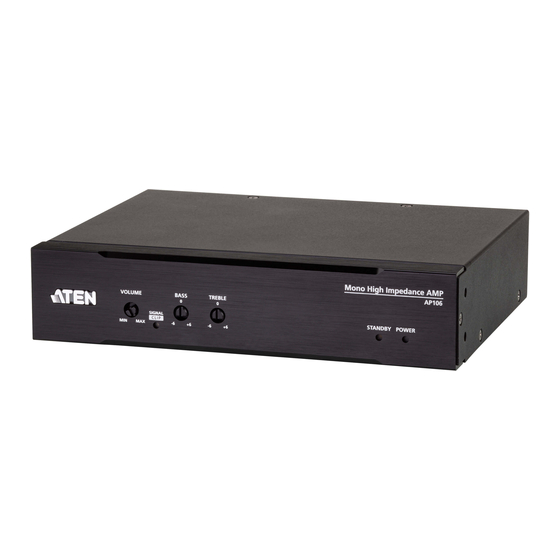

- Page 1 AP106 1 x 60W Mono Hi-Z Power User Manual...
-
Page 2: Compliance Statements
AP106 User Manual Compliance Statements FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 3 AP106 User Manual Industry Canada Statement This Class B digital apparatus complies with Canadian ICES-003. RoHS This product is RoHS compliant.
-
Page 4: User Information
AP106 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988... -
Page 5: Product Information
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... -
Page 6: Package Contents
Check to make sure that all the components are in working order. If you encounter any problem, please contact your dealer. 1 AP106 1 x 60W Mono Hi-Z Power Amplifier 1 5-pin Euroblock connector with strain relief (3.5 mm) ... -
Page 7: Table Of Contents
Connecting the AP106 Unit ........ -
Page 8: About This Manual
AP106 User Manual About this Manual This user manual is provided to help you get the most from the AP106 unit. It covers all aspects of installation, configuration, and operation. An overview of the information found in the manual is provided below. -
Page 9: Conventions
AP106 User Manual Conventions This manual uses the following conventions: Indicates text that you should key in. Monospaced Indicates keys you should press. For example, [Enter] means to press the Enter key. If keys need to be chorded, they appear together in the same bracket with a plus sign between them: [Ctrl+Alt]. - Page 10 AP106 User Manual This Page Intentionally Left Blank...
-
Page 11: Introduction
Introduction Overview The AP106 is a 60W power amplifier with Hi-Z outputs capable of driving 70 V / 100 V audio systems. The support for balanced / unbalanced line level inputs enables superior sound quality and installation flexibility. Apart from the overall volume adjustment function, the built-in 2-band shelf EQ provides ±... -
Page 12: Features
Output for high-Z via an Euroblock connector AC power on IEC receptacle for overseas operation Power Saving Mode — the AP106 shuts down when no audio input higher than -50 dBu is detectable in 30 minutes and turns back on when a source reaches -30 dBu is detected ... -
Page 13: Planning The Installation
AP106 User Manual Planning the Installation Requirements Prepare the following before installing the AP106 unit: 1 set of ceiling loudspeakers 1 or more audio source devices Components Front View 1 2 3 Rear View 10 11 No. Component... - Page 14 (2-pin Euroblock connector) reset button Press this button to reset the MCU of the unit. RS-232 serial port Connects to an ATEN controller for remote control. (3-pin Euroblock connector) audio input port Connects to an audio source. (5-pin Euroblock connector) audio input port Connects to an audio source.
-
Page 15: Led Status
AP106 User Manual LED Status You can find the unit’s LEDs on the front panel as illustrated below. See the table below for details on the LED indication. No. LED Indication Description Signal/Clip LED Lights green The audio signal strength is > -50 dBu. - Page 16 Chapter 1. Introduction This Page Intentionally Left Blank...
-
Page 17: Hardware Setup
2. Do not power on the AP106 until all the necessary hardware is connected. Connecting the AP106 Unit Follow the steps below to connect the AP106 to audio source devices, a set of loud speakers, and an ATEN controller. AP106 (Rear) - Page 18 For safety and better audio quality, AWG 16 or thicker speaker wires are highly recommended. 4. (Optional) To control the unit using an ATEN controller, connect the ATEN controller to the unit’s RS-232 serial port. 5. Connect the supplied power cord to the unit’s power socket after powering on all other audio equipment.
-
Page 19: Operation
Setting Up Audio Source with Unknown Output Level Please refer to the diagram and table below to set up unbalanced input level from a headphone output. Remember to set and keep the AP106’s volume to the max level. Volume Max. EQ Neutral... -
Page 20: 2-Band Shelf Equalizer (Eq)
LED blinks in amber. In the overheat protection mode, the wake up function is disabled. To wake up the unit from overheat protection mode, you can do one of the following: via the RS-232 command via an ATEN control system. Power on and off the unit. -
Page 21: Appendix
Appendix Safety Instructions General This product is for indoor use only. Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 22 Appendix Do not attempt to service the device yourself. Refer all servicing to qualified service personnel. If the following conditions occur, unplug the device from the wall outlet and bring it to qualified service personnel for repair. The power cord or plug has become damaged or frayed. ...
-
Page 23: Rack Mounting
AP106 User Manual Rack Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack. -
Page 24: Technical Support
Support Documentation Software Updates Telephone Support 1-888-999-ATEN ext 4988 When you contact us, please have the following information ready beforehand: Product model number, serial number, and date of purchase Your computer configuration, including operating system, revision level, expansion cards, and software ... -
Page 25: Specifications
AP106 User Manual Specifications Function AP106 System Specification Rated Power 60Wrms, 120Wpeak Distortion THD+N: <0.1%, 1 kHz, 3 dB before clipping Frequency Response 80 ~ 20 kHz, 0/-3 dB @ 70V, 1W Sensitivity Balanced: + 4 dB Unbalanced: -10 dBV (0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms) - Page 26 1/2 Rack Mount Unit 20.00 x 15.72 x 4.40 cm (7.87 x 6.19 x 1.73 in) Note: The Rack / surface mount kits are sold separately, please contact your ATEN dealer or go to ATEN website for available accessories and product information.
-
Page 27: Limited Warranty
© Copyright 2022 ATEN® International Co., Ltd. Released: 2022-09-27 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners.
