Serpent CENTAX TRUE MOTION Instruction Manual

E
1
Bag
14
E
2
TRUE MOTION CLUTCH
INSTRUCTION MANUAL
Note 1: to align the clutchgears with the 2-speed gears,
it may be needed to use shim(s) 7x13x 0.5mm
behind the cone.
This you can only see after assembly of the clutch.
Note 2: the holes in the side of the flywheel can be used
to block the flywheel (with short allen tool)
through the bottom of the chassis, when the
engine/clutch is mounted in the car.
It's easier to tighten or loosen the pre-load on
the clutch spring that way.

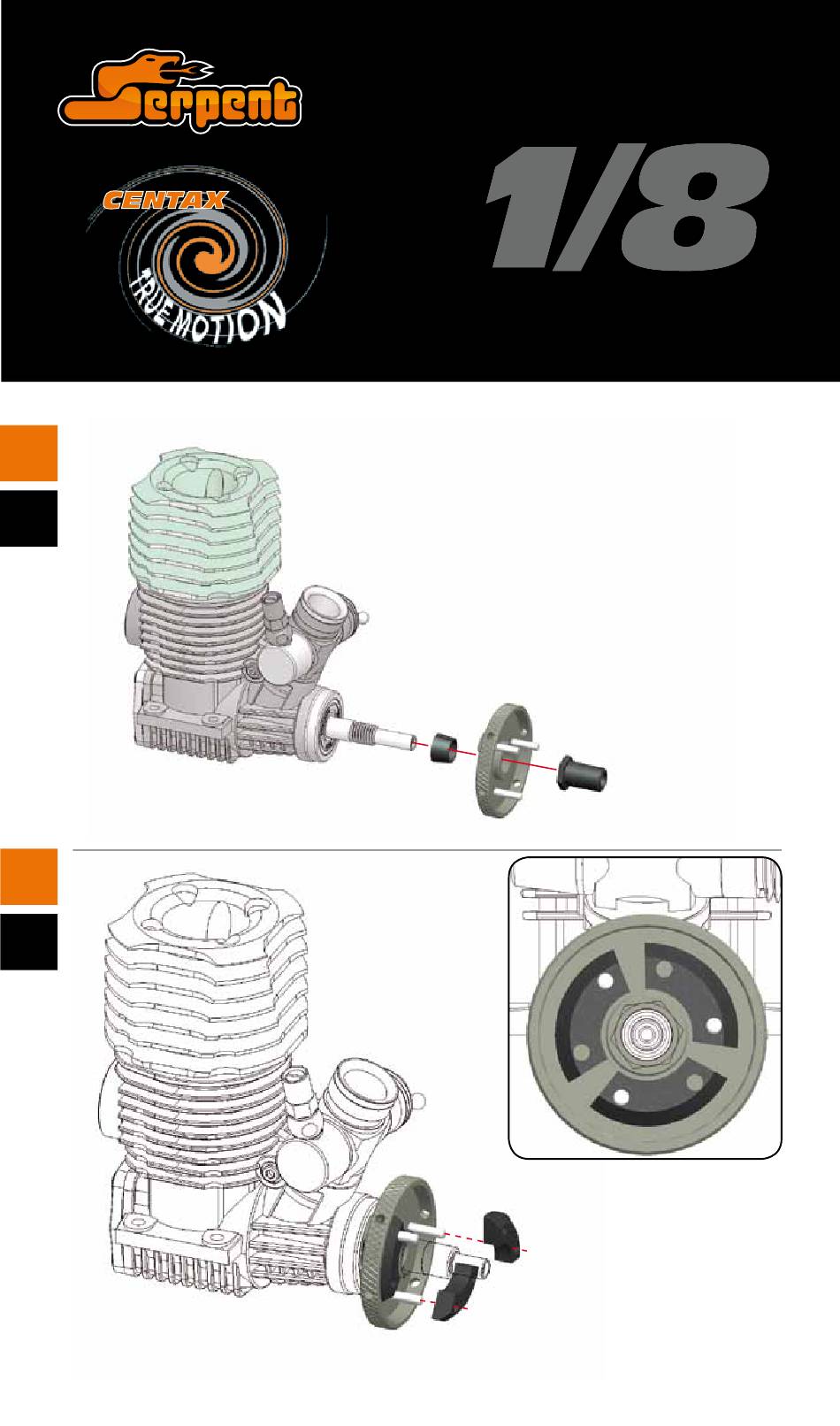

& EXPLODED VIEW
