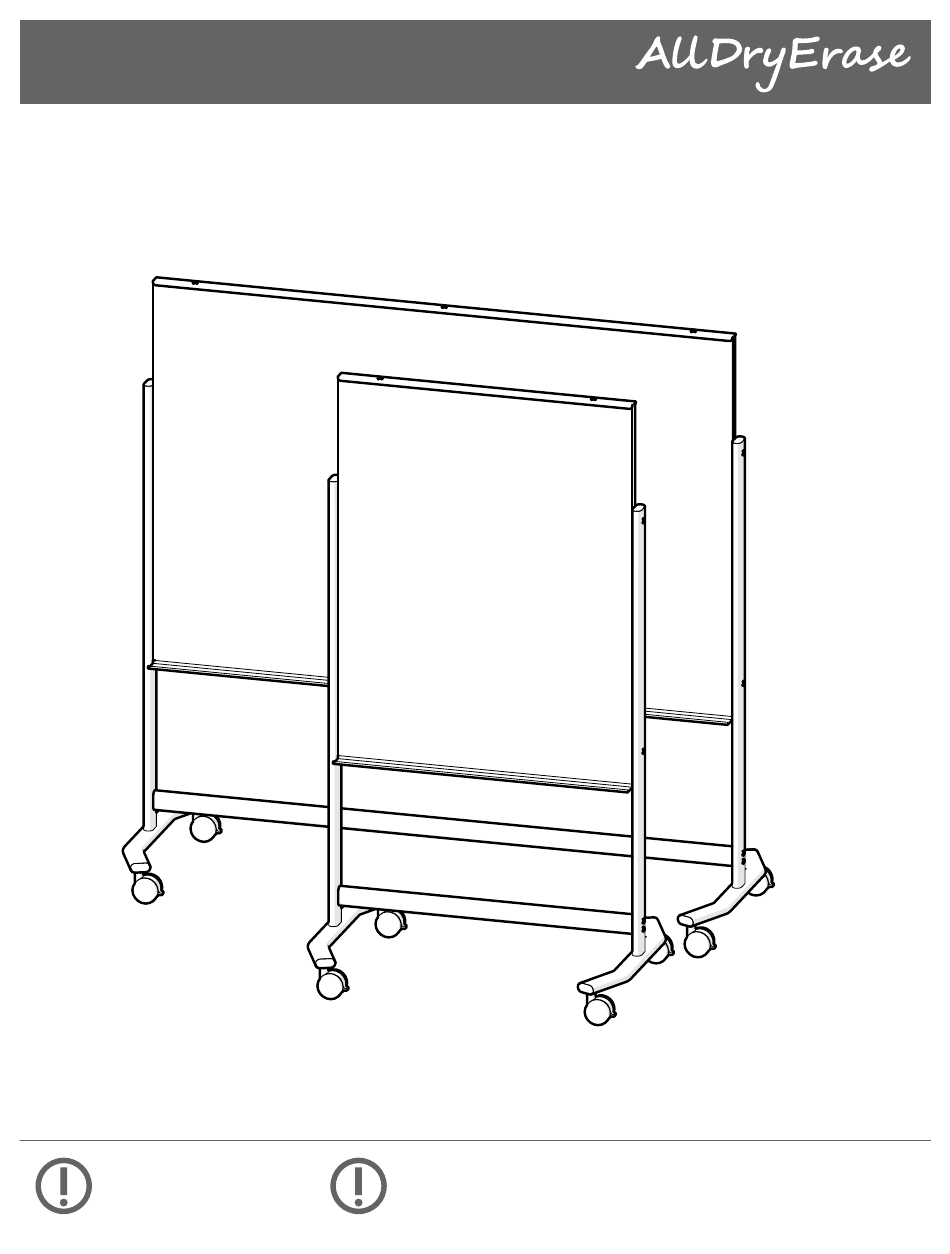

- Page 1 Visionary Move Mobile Part Numbers: 74950, 74950B, 74951, 74951B, 74965-XXXX, 74973-XXXX ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE ENSEMBLAJE INSTRUCTIONS DE MONTAGE NO LA TIRE NE PAS JETER DO NOT THROW AWAY! UPDATED AS OF: 03/02/2021 1 of 7...
- Page 2 Parts List Hardware A - 1/4” x 15mm P1 - Glass Board B - 1/4” x 50mm P2 - Leg C1 - Locking Caster P3 - Horizontal Tube C2 - Non-Locking Caster P4 - Vertical Tube D - Caster Wrench E - Allen Wrench P5 - Bottom Post F - Lock Washer...
- Page 3 WARNINGS AND DISCLAIMERS ADVERTENCIAS Y RENUNCIAS AVERTISSEMENTS Review full assembly instructions and Previo a comenzar el proceso de Avant de commencer l’ assamblage check that all parts are present before ensamblaje favor revisar veuillez consulter instructions complètes et véri昀椀er si vous avez toutes beginning assembly.
- Page 4 STEP 1 Place Lock Washer on each Caster stem then screw in Casters to Leg and tighten with Caster Wrench. Use one Locking Caster and one Non-Locking Caster per Leg. Repeat for second Leg. STEP 2 Connect Bottom Post to Legs using two screws (B) per Leg. UPDATED AS OF: 03/02/2021 4 of 7...
- Page 5 STEP 3 Connect Vertical and Horizontal Tubes as shown. Make sure the side holes on both Vertical Tubes are oriented the same way and holes on Horizontal Tubes are facing outward. Side Holes STEP 4 Position frame in between Legs and secure with two screws (B) on each side.
- Page 6 STEP 5 Attach Tray to underside of frame using three screws (A). STEP 6 Peel off adhesive cover on all four front and back pieces of double-sided tape on frame. Place Glass Boards by inserting bottom of each board in tray on both sides and holding flush against either face of frame pressing firmly into tape.
- Page 7 STEP 7 Secure boards in place by fitting Top Cap over top edge of boards and screwing into top of frame with three screws (A). THIS COMPLETES ASSEMBLY INSTRUCTION UPDATED AS OF: 03/02/2021 7 of 7...
