MDV -D71T1/N1-B Manual

High static pressure duct unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Библиотека СОК 

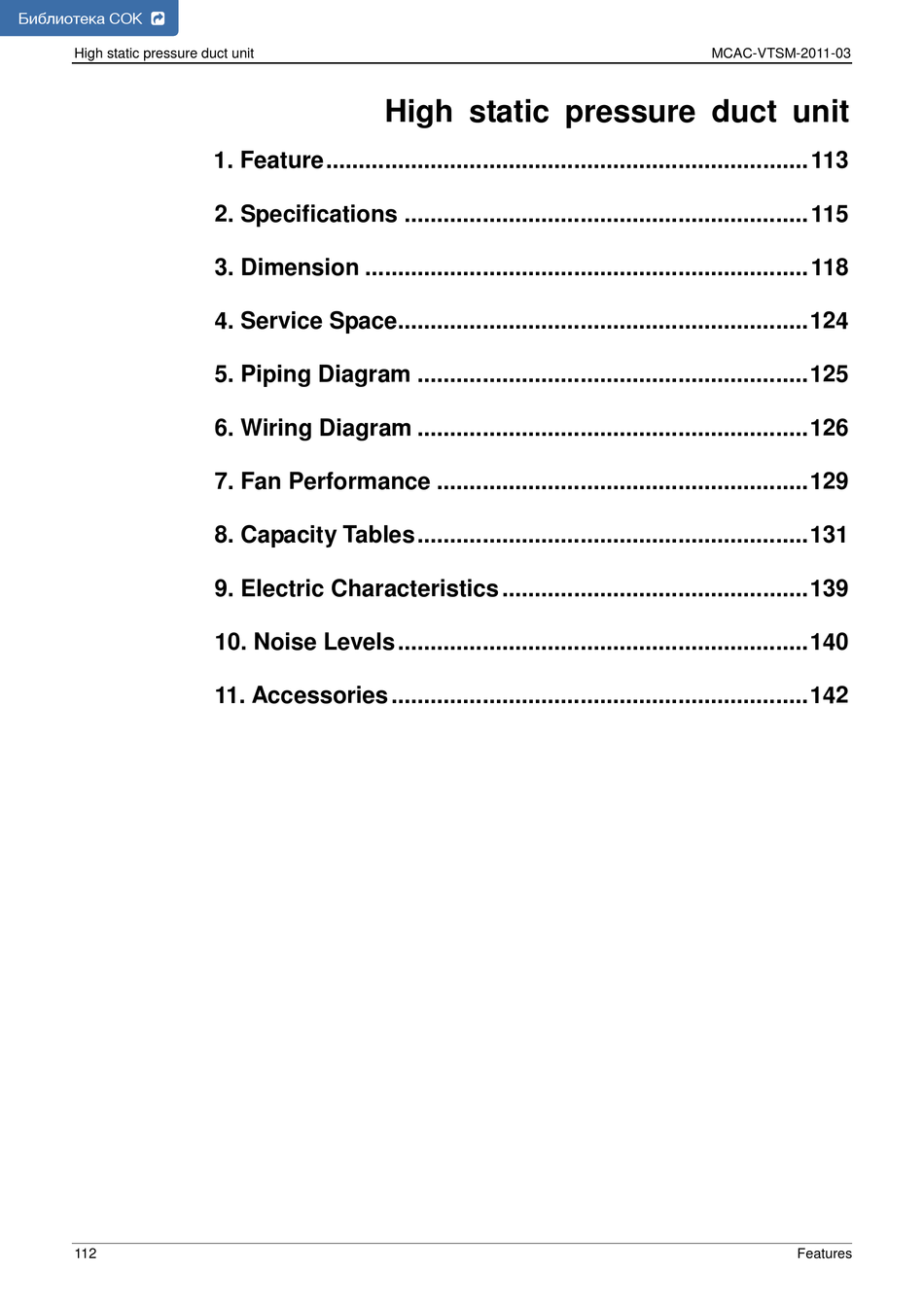

High static pressure duct unit
112
High static pressure duct unit
1. Feature .......................................................................... 113
2. Specifications .............................................................. 115
3. Dimension .................................................................... 118
4. Service Space ............................................................... 124
5. Piping Diagram ............................................................ 125
6. Wiring Diagram ............................................................ 126
7. Fan Performance ......................................................... 129
8. Capacity Tables ............................................................ 131
9. Electric Characteristics ............................................... 139
10. Noise Levels ............................................................... 140
11. Accessories ................................................................ 142
MCAC-VTSM-2011-03
Features

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MDV-D71T1/N1-B and is the answer not in the manual?

Questions and answers

Related Manuals for MDV MDV-D71T1/N1-B

Summary of Contents for MDV MDV-D71T1/N1-B

  • Page 1 Библиотека СОК  High static pressure duct unit MCAC-VTSM-2011-03 High static pressure duct unit 1. Feature ................113 2. Specifications .............. 115 3. Dimension ..............118 4. Service Space ............... 124 5. Piping Diagram ............125 6. Wiring Diagram ............126 7.
  • Page 2 MCAC-VTSM-2011-03 High static pressure duct unit 1. Feature High static pressure allows flexible duct design 1.1.1 External static pressure of Indoor Unit can be up to 196 Pa(71~160 model) (220Pa for 20kW and up), which allows extensive duct work for flexible applications. so the cool air can be delivered to every indoor corner even in a super-high ceiling.
  • Page 3 High static pressure duct unit MCAC-VTSM-2011-03 need extra connection. 1.5.2 Standard filter with aluminum frame, which is removable downward from bottom. 1.5.3.Suction chamber is included as standard equipment 1.5.4 Flange for air in/outlet duct connection is standard. 1.5.5 Optional drain pump * (for 71~160 model) Drain pump is equipped as optional accessory with 750 mm lift.

  • Page 4: Specifications

    MCAC-VTSM-2011-03 High static pressure duct unit 2. Specifications Model MDV-D71T1/N1-B MDV-D80T1/N1-B MDV-D90T1/N1-B Power supply V- Ph-Hz 220-240V~, 1Ph, 50Hz Capacity Cooling Input Rated current Capacity Heating Input Rated current Max. input consumption Max. current 1.23 1.23 YDK100-4X-2 YDK100-4X-2 YDK160-4C Model...
  • Page 5 High static pressure duct unit MCAC-VTSM-2011-03 Model MDV-D112T1/N1-B MDV-D140T1/N1-B MDV-D160T1/N1-B Power supply V- Ph-Hz 220-240V~, 1Ph, 50Hz Capacity 11.2 Cooling Input Rated current Capacity 12.5 Heating Input Rated current Max. input consumption Max. current 2.85 4.77 Model YSK200-4F-1 YSK300-4C-1 YSK400-4C-2...
  • Page 6 MCAC-VTSM-2011-03 High static pressure duct unit Model MDV-D200T1/N1-B MDV-D250T1/N1-B MDV-D280T1/N1-B Power supply V- Ph-Hz 220-240V~, 1Ph, 50Hz Capacity 20.0 25.0 28.0 Cooling Input 1516 1516 1516 Rated current Capacity 22.5 26.0 31.5 Heating Input 1516 1516 1516 Rated current Max. input consumption...
  • Page 7 High static pressure duct unit MCAC-VTSM-2011-03 3. Dimension MDV-D71T1/N1-B MDV-D80T1/N1-B MDV-D90T1/N1-B MDV-D112T1/N1-B Front view, top view and rear view: P LA S T ICC O V E R C O N T R O L E LE C T R IC A L...

  • Page 8: Left Side

    MCAC-VTSM-2011-03 High static pressure duct unit Side view:  Left side C O N N E C T IN GP O IN TO F D R A INP IP E R E F R IG E R A N T -P IP EF LA N E D C O N N E C T IO N Φ...
  • Page 9 High static pressure duct unit MCAC-VTSM-2011-03 MDV-D140T1/N1-B MDV-D160T1/N1-B Front view, top view and rear view: Dimensions...
  • Page 10 MCAC-VTSM-2011-03 High static pressure duct unit Side view:  Left side  Right side Dimensions...
  • Page 11 High static pressure duct unit MCAC-VTSM-2011-03 MDV-D200T1/N1-B MDV-D250T1/N1-B MDV-D280T1/N1-B Front view, top view and rear view: 1121 Entrances and exits for communication lines of indoor and outdoor Air outlet 4-12*25 oblong 1443 suspention bolt holes Electrical parts box 4-Φ10 hanging screw...
  • Page 12 MCAC-VTSM-2011-03 High static pressure duct unit Key points about the 200, 250, 280 model installation: There‟re two sets of EXV boxes, as well two groups of pipes (Gas/Liquid), it‟s necessary to connect the two gas pipes together with the attached branch header BY101N1, as well the liquid pipes. The branch header (1 set) already includes 1 gas and 1 liquid branch joint.

  • Page 13: Service Space

    High static pressure duct unit MCAC-VTSM-2011-03 4. Service Space  Ensure the needed spaces for installation and maintenance.  The ceiling is horizontal, and its structure can endure the weight of the indoor unit.  The outlet and the inlet are not impeded, and the influence of external air is the least. ...

  • Page 14: Piping Diagram

    MCAC-VTSM-2011-03 High static pressure duct unit 5. Piping Diagram MDV-D71T1/N1-B ， MDV-D80T1/N1-B ， MDV-D90T1/N1-B ， MDV-D112T1/N1-B ， MDV-D140T1/N1-B ， MDV-D160T1/N1-B， motor flare nut gas side heat exchanger flare nut liquid side MDV-D200T1/N1-B，MDV-D250T1/N1-B，MDV-D280T1/N1-B， motor motor flare nut flare nut gas side...

  • Page 15: Wiring Diagram

    High static pressure duct unit MCAC-VTSM-2011-03 6. Wiring Diagram MDV-D71T1/N1-B，MDV-D80T1/N1-B，MDV-D90T1/N1-B， Wiring diagram...
  • Page 16 MCAC-VTSM-2011-03 High static pressure duct unit MDV-D112T1/N1-B, MDV-D140T1/N1-B, MDV-D160T1/N1-B, Wiring diagram...
  • Page 17 High static pressure duct unit MCAC-VTSM-2011-03 MDV-D200T1/N1-B, MDV-D250T1/N1-B, MDV-D280T1/N1-B, Wiring diagram...

  • Page 18: Fan Performance

    “Hi ” air flow. Therefore in the case of 112T1 Type, the air flow is 1544 CMH , while the External Static Pressure is 90Pa at “Lo ” position. And 2117 CMH @ 90Pa, at„ Hi„ position. MDV-D71(80)T1/N1-B MDV-D90T1/N1-B MDV-D112T1/N1-B...
  • Page 19 High static pressure duct unit MCAC-VTSM-2011-03 MDV-D160T1/N1-B MDV-D200(250)T1/N1-B MDV-D280T1/N1-B  If the external static pressure is too great (due to long extension of duct, for example), the air flow volume may drop too low at each air outlet.  So there‟s a limit air flow volume line for each speed, which is the min.

  • Page 20: Capacity Tables

    MCAC-VTSM-2011-03 High static pressure duct unit 8. Capacity Tables 8.1 Cooling TC: total capacity SC: sensible capacity WB: wet-bulb temperature DB: dry-bulb temperature Indoor temperature (℃ WB/DB) Indoor Outdoor 14/20 16/23 18/26 19/27 20/28 22/30 24/32 Unit size temperature (kW) (℃...
  • Page 21 High static pressure duct unit MCAC-VTSM-2011-03 23.0 25.0 27.0 29.0 31.0 33.0 35.0 37.0 39.0 42.0 44.0 46.0 10.0 12.0 14.0 16.0 18.0 20.0 21.0 23.0 25.0 11.2 27.0 29.0 31.0 33.0 35.0 37.0 39.0 42.0 44.0 46.0 10.0 12.0 14.0 16.0 18.0...
  • Page 22 MCAC-VTSM-2011-03 High static pressure duct unit 14.0 16.0 18.0 20.0 21.0 23.0 25.0 27.0 29.0 31.0 33.0 35.0 37.0 39.0 42.0 44.0 46.0 10.0 12.0 14.0 16.0 18.0 20.0 21.0 23.0 25.0 20.0 27.0 29.0 31.0 33.0 35.0 37.0 39.0 42.0 44.0 46.0...
  • Page 23 High static pressure duct unit MCAC-VTSM-2011-03 42.0 44.0 46.0 10.0 10.5 11.2 11.9 13.3 12.0 10.5 11.2 11.9 13.3 14.0 10.5 11.2 11.9 13.3 16.0 10.5 11.2 11.9 13.3 18.0 10.5 11.2 11.9 13.3 20.0 10.5 11.2 11.9 13.3 21.0 10.5 11.2 11.9...
  • Page 24 MCAC-VTSM-2011-03 High static pressure duct unit 8.2 Heating TC: total capacity WB: wet-bulb temperature DB: dry-bulb temperature Indoor temperature (℃ DB) Outdoor temperature 16.00 18.00 20.00 21.00 22.00 24.00 Indoor Unit size (℃) (kW) -19.8 4.48 4.48 4.48 4.48 4.48 4.48 -18.8 -16.7...
  • Page 25 High static pressure duct unit MCAC-VTSM-2011-03 -7.60 -7.00 -5.60 -5.00 -3.70 -3.00 -0.70 0.00 2.20 3.00 4.10 5.00 6.00 7.00 7.90 9.00 10.3 10.3 9.80 11.00 10.6 10.6 11.80 13.00 10.8 13.70 15.00 11.3 10.8 -19.8 -18.8 -16.7 7.88 7.88 7.88 7.88 7.88...
  • Page 26 MCAC-VTSM-2011-03 High static pressure duct unit -14.7 10.08 10.08 10.08 10.08 10.08 10.08 -13.00 -12.60 10.4 10.4 10.4 10.4 10.4 10.4 -11.00 -10.50 10.9 10.9 10.9 10.9 10.9 10.9 -10.00 -9.50 11.3 11.3 11.3 11.3 11.3 11.3 -9.10 -8.50 11.6 11.6 11.6 11.6...
  • Page 27 High static pressure duct unit MCAC-VTSM-2011-03 11.80 13.00 17.1 16.7 15.5 14.3 13.70 15.00 17.5 16.7 15.5 14.3 -19.8 8.68 8.68 8.68 8.68 8.68 8.68 -18.8 -16.7 9.77 9.77 9.77 9.77 9.77 9.77 -14.7 10.08 10.08 10.08 10.08 10.08 10.08 -13.00 -12.60 10.4...

  • Page 28: Electric Characteristics

    MCAC-VTSM-2011-03 High static pressure duct unit 9. Electric Characteristics Indoor Unit Power Supply Model Voltage Min. Max. MDV-D71T1/N1-B 220-240V 198V 254V 1.23 1.17 MDV-D80T1/N1-B 220-240V 198V 254V 1.23 1.17 MDV-D90T1/N1-B 220-240V 198V 254V 1.87 0.16 1.71 MDV-D112T1/N1-B 220-240V 198V 254V 2.18...
  • Page 29 High static pressure duct unit MCAC-VTSM-2011-03 10. Noise Levels 10.1 Test condition 10.2 Test value Noise test value dB(A) Model MDV-D71T1/N1-B 44.5 44.5 MDV-D80T1/N1-B MDV-D90T1/N1-B MDV-D112T1/N1-B MDV-D140T1/N1-B MDV-D160T1/N1-B MDV-D200T1/N1-B MDV-D250T1/N1-B MDV-D280T1/N1-B MDV-D71T1/N1-B MDV-D80T1/N1-B MDV-D90T1/N1-B MDV-D112T1/N1-B Audibility limits of Audibility limits of...
  • Page 30 MCAC-VTSM-2011-03 High static pressure duct unit MDV-D140T1/N1-B MDV-D160T1/N1-B Audibility limits of Audibility limits of continuous white continuous white sound sound Octave band center frequency （ Hz ） Octave band center frequency （ Hz ） MDV-D200T1/N1-B MDV-D250T1/N1-B MDV-D280T1/N1-B Audibility limits of...

  • Page 31: Optional Accessories

    1 liquid and 1 gas branch To connect the two circuits of Code: 201609891015 indoor unit as one system. Model:CE-MDV-BY101N1(MDV-BY101N1) Wired controller The indoor unit witch at the terminal of communication Network matching wire system should connect a...
