Industrial Communication Platforms

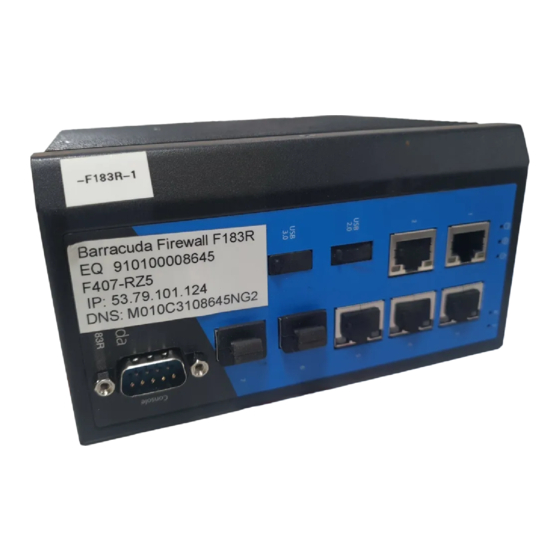

LEC-6032C
User Manual
Version: 1.8
Date of Release:2022-10-06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LEC-6032C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lanner LEC-6032C

Summary of Contents for Lanner LEC-6032C

  • Page 1 Industrial Communication Platforms LEC-6032C User Manual Version: 1.8 Date of Release:2022-10-06...
  • Page 2 - assumed to be qualified in the servicing of computer equipment, such as professional system integrators, or service personnel and technicians. The latest version of this document can be found on Lanner’s official website, available either through the product page or through the...
  • Page 3 LEC-6032C User Manual Taiwan Corporate Headquarters China Lanner Electronics Inc. Beijing L&S Lancom Platform Tech. Co., 7F, No.173, Sec.2, Datong Rd. Ltd. Xizhi District, New Taipei City 22184, Guodong LOFT 9 Layer No. 9 Huinan Road, Taiwan Huilongguan Town, Changping District, 立端科技股份有限公司...
  • Page 4 LEC-6032C User Manual This document is copyrighted © 2022 by Lanner Electronics Inc. All rights are reserved. The original manufacturer reserves the right to make improvements to the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of the original manufacturer.
  • Page 5 LEC-6032C User Manual Follow these guidelines to ensure general safety: Keep the chassis area clear and dust-free during and after installation. Do not wear loose clothing or jewelry that could get caught in the chassis. Fasten your tie or scarf and roll up your sleeves.
  • Page 6 LEC-6032C User Manual open chassis permits air leaks, which may interrupt and redirect the flow of cooling air from internal components. Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. ESD damage occurs when electronic components are improperly handled and can result in complete or intermittent failures.
  • Page 7 LEC-6032C User Manual Warning Class I Equipment. This equipment must be earthed. The power plug must be connected to a properly wired earth ground socket outlet. An improperly wired socket outlet could place hazardous voltages on accessible metal parts. “Product shall be used with Class 1 laser device modules.”...

  • Page 8: Table Of Contents

    LEC-6032C User Manual Table of Contents Ordering Information ....................9 Specifications ......................10 Mechanical Drawing ....................11 Block Diagram ......................12 Front I/Os ........................13 Side I/Os........................14 Rear I/Os ........................14 Jumpers & Connectors Locations on the Motherboard ..........15 Jumper Settings &...

  • Page 9: Ordering Information

    LEC-6032 C: 5 x RJ-45 10/100/1000 Mbps ports and 2 x SFP GbE ports LEC-6032 F: 3 x RJ-45 10/100/1000 Mbps ports and 4 x SFP GbE ports ⚫ LAN Bypass (Lanner’s Generation 3 bypass) ⚫ Display: 1 x VGA pin header ⚫...

  • Page 10: Specifications

    LEC-6032C User Manual Processor Intel® Atom™ Processor E3845 (4 Cores, 1.91 GHz) Memory 1x 204-pin SO-DIMM DDR3L, 1333 MHz, up to 8GB BIOS AMI SPI Flash BIOS Serial Port 1x DB9 RS-232 w/ 1.5 KV ESD Protection 1x USB 3.0 Type-A port USB Port 1x USB 2.0 Type-A port...

  • Page 11: Mechanical Drawing

    LEC-6032C User Manual Mechanical Drawing Unit: mm...

  • Page 12: Block Diagram

    LEC-6032C User Manual Block Diagram...

  • Page 13: Front I/Os

    LEC-6032C User Manual Front I/Os PWR/RUN/HDD LED 1 x PWR/RUN/HDD LED set for power, device and storage activity status SFP LED Blinking indicates active, and green indicates link for fiber status 5 x 10/100/1000 mbps RJ-45 LAN ports 2 x SFP GbE ports USB 2.0...

  • Page 14: Side I/Os

    LEC-6032C User Manual Side I/Os Power Input 12 - 36Vdc power input via 6-pin Phoenix Contact connector Rear I/Os The bracket on the rear is designed for DIN Rail mounting purpose.

  • Page 15: Jumpers & Connectors Locations On The Motherboard

    LEC-6032C User Manual Jumpers & Connectors Locations on the Motherboard LAN1/2 VGA1 USB2 COM1 USB1 RST2 MCU1 LPC1 SPIROM CON1...
  • Page 16 LEC-6032C User Manual Jumpers & Connectors Locations for I/O Card LANB1/2/3 SFP1/2 P12V1...
  • Page 17 LEC-6032C User Manual The Motherboard Label Description LAN1/2 2 x RJ-45 LAN ports USB1 1 x USB3.0 Type-A port USB2 1 x USB2.0 Type-A port COM1 RS-232 internal pin header VGA1 Internal VGA pin header RST2 Jumper setting for hardware/software reset...

  • Page 18: Jumper Settings & Connector Pinout

    LEC-6032C User Manual Jumper Settings & Connector Pinout (Motherboard) PWR1: Power On/Off Jumper Description Power ON/OFF system NC (Default) Normal CLR1：Clear CMOS Jumper Description Clear CMOS RAM NC (Default) Normal J1: AT mode select Jumper Description AT mode NC (Default)
  • Page 19 LEC-6032C User Manual Connector Pin Assignment VGA1: VGA pin header Description VGA_R VGA_G VGA_B VGA_HSYNC VGA_VSYNC Ground DD_DATA DD_CLK LPC1: LPC pin header (For debug purpose) Pin No. Description Pin No. Description LPC_CLK_1 LPC_AD1 PLTRST_P80_N LPC_AD0 LPC_FRAME_N P3V3 LPC_AD3 LPC_AD2...
  • Page 20 LEC-6032C User Manual COM1: serial COM pin header with RS-232 signal Pin No. Description Pin No. Description COM1_RXD COM1_TXD COM1_GND SPIROM1: SPI ROM Connector (For debug purpose) Description Description SPI_HD1_N PCH_SPI_CS1_N PCH_SPI_CS0_N V_3P3_SPI_R PCH_SPI_MISO SPI_HD0_N PCH_SPI_CLK PCH_SPI_MOSI MCU1: LPC1114 Burn Connector...
  • Page 21 LEC-6032C User Manual J2: SATA connector for SATA 2.5” HDD/SSD Pin signal SATA_TX1_C_DP SATA_TX1_C_DN SATA_RX1_C_DN SATA_RX1_C_CP CON1: SATA power connector supplying the power needed for a storage drive Pin signal P12V USB1: USB 3.0 Connector Description Description P5V_USB_L USB3_SS_RX_DN USB_P1_L_DN...
  • Page 22 LEC-6032C User Manual LAN1: LAN1 RJ-45 Connector Description Description P1_MDXP0 P1_MDXP3 P1_MDXN0 P1_MDXN3 P1_MDXP1 P3V3S P1_MDXP2 P1_LED_LINK_N P1_MDXN2 P1_LINK1000 P1_MDXN1 P1_LINK100 LAN2: LAN2 RJ-45 Connector Description Description P2_MDXP0 P2_MDXP3 P2_MDXN0 P2_MDXN3 P2_MDXP1 P3V3S P2_MDXP2 P2_LED_LINK_N P2_MDXN2 P2_LINK1000 P2_MDXN1 P2_LINK100 JP1: Board to Board Power Connector...
  • Page 23 LEC-6032C User Manual USB_P3_DN P5VS PCIE_TX2_C_ COM2_RTS# USB_P3_DP P5VS PCIE_TX2_C_ COM2_TXD# P5VS P1_RT_1 LATCH_EN_GPH P5VS PCIE_RX3_DN COM2_RXD# LATCH_DIS_GPL WDTO_OUT# PCIE_RX3_DP COM3_RTS# P3V3S COM3_TXD# SMB_CLK_RESU P3V3S PCIE_TX3_C_ P1_S0_1 ME_IO SMB_DATA_RES P3V3S PCIE_TX3_C_ COM3_RXD# UME_IO P3V3S COM4_RTS# USB_OC_N23 P3V3S CLK_MULTI_I COM4_TXD# O_DN...
  • Page 24 ⚫ Please wear ESD protected gloves before conducting the following steps. ⚫ Do NOT pile items on top of the system to prevent damages due to this improper use. Lanner is not liable for damages caused by improper use of the product.
  • Page 25 LEC-6032C User Manual 3. Open the bottom and the side compartments as shown below.

  • Page 26: Installing So-Dimm Memory

    LEC-6032C User Manual Installing SO-DIMM Memory The system is designed with a SO-DIMM socket supporting up to 4GB DDR3L SDRAM. Please follow the steps below for proper installations. 1. Locate the SO-DIMM socket on the motherboard. 2. Remove the heat sink by removing the two screws circled in the image below.

  • Page 27: Installing A Disk Drive

    LEC-6032C User Manual Installing a Disk Drive The system can accommodate one 2.5” SATA disk drive. Please follow the steps below. 1. Locate the SATA drive tray on the inner side of the bottom compartment. 2. Take the 2.5” drive tray out by removing the 4 screws that fix the tray.
  • Page 28 LEC-6032C User Manual 3. Place the SATA disk drive and apply 4 screws as circled below. SATA connector 4. Place the disk drive tray back to its original place and fix it with 4 screws. 5. Connect the supplied SATA cable. Plug the 7-pin and the 4-pin SATA signal and power pair into its corresponding SATA signal and power connectors on the motherboard.

  • Page 29: Mounting Lec-6032 By Din Rail

    LEC-6032C User Manual Mounting LEC-6032 by DIN Rail All models of the LEC-6032 series are designed with a DIN Rail mounting bracket at the rear of the product. Hang the device onto a rail and push inwards until it firmly attaches.
  • Page 30 LEC-6032C User Manual To remove the system from the DIN Rail, simply use a flathead screwdriver to poke the hole circled in the mounting clip image below. Apply force and poke this hole...
  • Page 31 LEC-6032C User Manual To enter the BIOS setup utility, simply follow the steps below: 1. Boot up the system. 2. Press <Delete> during the boot-up. Your system should be running POST (Power-On-Self- Test) upon booting up. 3. Then you will be directed to the BIOS main screen.

  • Page 32: Main

    LEC-6032C User Manual Main The [Main] is the first setup screen when you enter BIOS. The [Main] displays general system and BIOS information and you may configure “System Date”, and “System Time”. BIOS Information BIOS Vendor Core Version Compliancy Project Version: displays version information Build Date and Time: displays the date and time the BIOS was built.

  • Page 33: Advanced

    LEC-6032C User Manual Advanced Use [<--] / [-->] to select [Advanced] setup screen. Under this screen, you may use [↑] [↓] to select an item you wish to configure. F81865 Super IO Configuration Press “Enter” to access configuration sub-menu for super IO chip parameters. You may access...
  • Page 34 LEC-6032C User Manual Once you have entered “Serial Port 1 Configuration”, you may choose to enable or disable the serial port. Hardware Monitor This option allows you to view hardware health status. you may use [↑] [↓] to select ‘‘Hardware...
  • Page 35 LEC-6032C User Manual Serial Port Console Redirection This option allows you to configure parameters about serial port console redirection. Press “Enter” to access the submenu. Console Redirection: select “Enabled” or “Disable” for an available COM port to set up the console redirection.
  • Page 36 LEC-6032C User Manual COM Console Redirection Settings Terminal Type: the emulation configuration. Select “VT100”, “VT100+”, “VT-UTF8” or “ANSI”. VT100: ASCII character set VT100+: extends VT100 to support color function keys VT-UTF8: uses UTF8 encoding to map Unicode characters onto 1 or more...
  • Page 37 LEC-6032C User Manual Bits per second: select “9600”, “19200”, “38400”, “57600”, or “115200” for bits per second. The Bps will determine serial port transmission speed. The speed must be matched on the other side. Long or noisy lines may require lower speeds...
  • Page 38 LEC-6032C User Manual Data Bits: select the value for data bits. In this case, “7” or “8”. Parity Bits: a parity bit can be sent with the data bits to detect some transmission errors. Select “None”, “Even”, “Odd”, “Mark” or “Space”.
  • Page 39 LEC-6032C User Manual Stop Bits: stop bits indicate the end of a serial data packet. The standard is 1 stop bit. Communication with slow devices may require more than Flow Control: flow control can prevent data loss from buffer overflow. When sending data, if the receiving buffers are full, a “stop”...
  • Page 40 LEC-6032C User Manual VT-UTF8 Combo Key Support: this option enables/disables VT-UTF8 combination key support for ANSI/VT100 terminals. Recorder Mode: on this mode, when “Enabled”, only text will be sent. This is to capture terminal data.
  • Page 41 LEC-6032C User Manual Resolution 100 x 31: select “Enabled” or “Disabled” for extended terminal resolution. Legacy OS Redirection Resolution: select “80x24” or “80x25”. The default for this case is “80x24”.
  • Page 42 LEC-6032C User Manual Putty KeyPad: select Function Key and Key Pad on Putty. You may select “VT100”, “LINUX”, “XTERMR6”, “SCO”, “ESCN”, or VT400”. Redirection After BIOS POST: The settings specify if BootLoader is selected than Legacy console redirection is disabled before booting to Legacy OS. Default value is “Always Enable” which means...
  • Page 43 LEC-6032C User Manual CPU Configurations This option allows you to configure CPU parameters. Socket 0 CPU Information: enter to check socket specific CPU info. Limit CPUID Maximum: When “Enabled”, the CPU will limit its maximum CPUID input value to 3 when the processor is queried.
  • Page 44 LEC-6032C User Manual...
  • Page 45 LEC-6032C User Manual...
  • Page 46 LEC-6032C User Manual IDE Configuration Press Enter to access items for SATA devices and settings. Serial-ATA (SATA): enable or disable SATA function SATA Speed Support: select SATA speed based on the generations defined by SATA specifications. SATA Mode: the selection to determine the SATA mode for your storage devices. You may select “IDE”...
  • Page 47 LEC-6032C User Manual...
  • Page 48 LEC-6032C User Manual...
  • Page 49 LEC-6032C User Manual...
  • Page 50 LEC-6032C User Manual USB Configuration This option allows you to configure USB device Settings. USB Module Version: displays information about USB module version USB Devices: displays USB devices Legacy USB Support: this function enables or disables legacy USB support. Auto option disables legacy support if no USB devices are connected.
  • Page 51 LEC-6032C User Manual...
  • Page 52 LEC-6032C User Manual...
  • Page 53 LEC-6032C User Manual...
  • Page 54 LEC-6032C User Manual LAN Boot Configuration Select onboard LAN for enabled PXE Boot.

  • Page 55: Chipset

    LEC-6032C User Manual Chipset Use [<--] / [-->] to select [Chipset] setup screen. Under this screen, you may use [↑] [↓] to select ‘‘North Bridge’’ or ‘‘South Bridge’’ to configure the parameters. North Bridge Memory Information Total Memory: displays total memory...
  • Page 56 LEC-6032C User Manual South Bridge Once entered South Bridge setting, you may configure USB, and high precision timer.
  • Page 57 LEC-6032C User Manual USB Configuration XHCI Mode: select the mode of XHCI controller. USB 2.0 (EHCI) Support: control the USB EHCI (USB2.0) functions. One EHCI controller must always be enabled.
  • Page 58 LEC-6032C User Manual...

  • Page 59: Security

    LEC-6032C User Manual Security Use [<--] / [-->] to select [Security] setup screen. Under this screen, you may use [↑] [↓] to select an item you want to configure. Administrator Password: set administrator password. Once set, then this only limits access to Setup and is only asked for when entering Setup.

  • Page 60: Boot

    LEC-6032C User Manual Boot Use [<--] / [-->] to select [Boot] setup screen. Under this screen, you may use [↑] [↓] to select an item you want to configure. Setup Prompt Timeout: set the number of seconds to wait for setup activation key. 65535 (0xFFFF) means indefinite waiting.
  • Page 61 LEC-6032C User Manual...

  • Page 62: Save & Exit

    LEC-6032C User Manual Save & Exit Use [<--] / [-->] to select [Save & Exit] setup screen. Under this screen, you may use [↑] [↓] to select an item you want to configure. Save Changes and Exit: exit system setup after saving the configuration changes...
  • Page 63 LEC-6032C User Manual...
  • Page 64 LEC-6032C User Manual...
  • Page 65 LEC-6032C User Manual...
  • Page 66 LEC-6032C User Manual...
  • Page 67 LEC-6032C User Manual A watchdog timer is a piece of hardware that can be used to automatically detect system anomalies and reset the processor in case there are any problems. Generally speaking, a watchdog timer is based on a counter that counts down from an initial value to zero. The software selects the counter’s initial value and periodically restarts it.
  • Page 68 LEC-6032C User Manual Lanner Bypass has evolved to Generation 3 which has much advancement over the previous two generations. It offers more flexibility and richer configuration of bypass setting by adopting the uController. With the uController and its onboard Non-volatile random-access memory (NVRAM), it can store the configuration of the bypass settings as well as manage the bypass status accurately regardless of the system’s operating state.
  • Page 69 Fail relay will be triggered when the system’s power fails. As LEC-6032C comes with dual power and P-fail relay features, the P-Fail relay will have the signaling device triggered as the power supply fails. LEC-6032C’s relay circuit is set to be Open by default and Closed when either or neither of the powers is detected;...
  • Page 70 LEC-6032C User Manual Connecting the Alarm Device Connect the device to the system through Pin3 and Pin4 on the 6-pin terminal block and make sure the voltage rating of the external power supply that energizes the signaling device is compatible with the relay output. For details on this relay (AXICOM IM02GR)’s specifications, please...
  • Page 71 LEC-6032C User Manual Status LED SFP Port Status LED LAN Port Status LED LAN Port Status LED The status explanations of LED indicators on Front Panel are as follows: HDD/RUN/Power HDD Activity Status Blinking Amber Data access activities No data access activities RUN(System Status) This LED indicator is programmable.
  • Page 72 LEC-6032C User Manual SFP Port Status F1/F2 Solid Green Link has been established and there is no activity on this port Blinking Green Link has been established and there is activity on this port No link has been established LAN Port Status (LAN1~LAN5)
