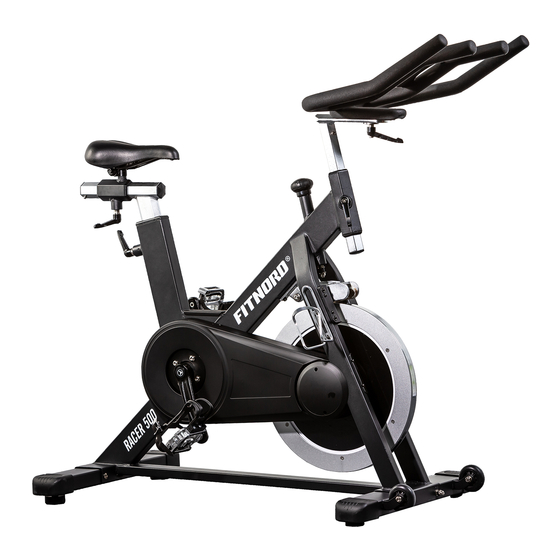

- Page 1 SPINNING BIKE USER MANUAL IMPORTANT! Please retain this manual for maintenance and adjustment instructions. Your satisfaction is very important to us.
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION Thank you for choosing our product. To ensure your safety and health, use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions. -
Page 3: Exploded Diagram

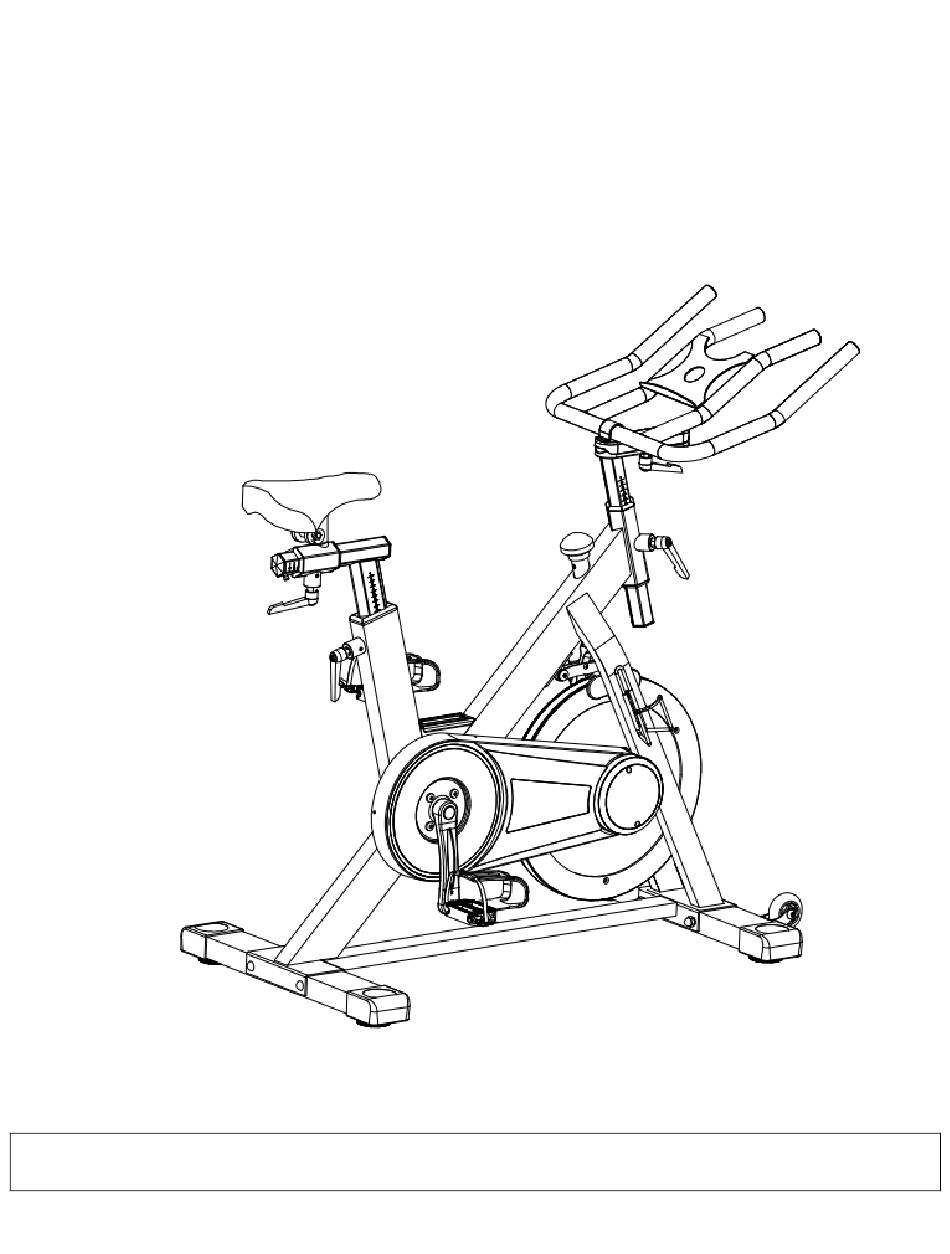

EXPLODED DIAGRAM... -
Page 4: Parts List
PARTS LIST Description Qty. Description Qty. Main Frame Tube Plug Front Stabilizer Sleeve Front End Cap V-Shaped Block Rear End Cap Hex Stopper Screw Foot Pad Hex Socket Cap Screw Carriage Bolt Handlebar Post Flat Washer Handlebar Spring Washer L-Shaped Knob Acorn Nut Seat Nylon Nut... - Page 5 ASSEMBLY INSTRUCTIONS STEP 1: 1. Remove the preassembled 4 Carriage Bolts (6), 4 Flat Washers (7), 4 Spring Washers (8), 4 Acorn Nuts (9) and 2 Shipping Tubes (A), from the Main Frame (1) with the Spanner . 2. Attach the Front & Rear Stabilizer (2 & 12) to the Main Frame (1) using 4 (6), Carriage Bolts 4 Flat Washers (7), 4 Spring Washers (8) and 4 Acorn Nuts (9) that were just removed.
- Page 6 STEP 2: 1. Insert the L Shaped Knob (16) into the front tube of the Main Frame (1). Tighten clockwise. Then turn counter-clockwise to loosen the L Shaped Knob (16) enough to insert the Handlebar Post (25). 2. Insert the Handlebar Post (25) to the front tube of Main Frame (1), adjust to the proper height, and insert and tighten L Shaped Knob (16) to secure.
- Page 7 STEP 3: IMPORTANT! Read instructions carefully, failure to do so may cause permanent damage to your bike. 1. Make sure you have the Left Pedal (15L) in hand. Align the Left Pedal (15L) with the Left Crank (29L) at 90°and gently insert the Left Pedal (15L) into the Left Crank (29L). 2.
- Page 8 ADJUSTMENTS GUIDE ADJUSTING THE BALANCE In order to achieve a smooth and comfortable ride, you must ensure that the stability of the bike is secured. If you notice that the bike is unbalanced during use, you should adjust the foot levelers located beneath the front and rear stabilizers. To do so, use Spanner to loosen Hex Screw (33) by turning it clockwise (direction A).
-
Page 9: Adjusting The Handlebar
ADJUSTING THE HANDLEBAR Loosen the L Shaped Knob (16) to raise or lower the handlebar to the desired position. Make sure the L Shaped Knob (16) settles into the desired hole and secure it firmly by turning clockwise. See Figure A. Loosen the L Shaped Knob (27) to move the handlebar forward or backward to the desired position. -
Page 10: Maintenance Instructions
MAINTENANCE INSTRUCTIONS This is general information for daily, weekly and monthly maintenance to be performed on your bike. DAILY MAINTENANCE MONTHLY MAINTENANCE After each exercise session, wipe down all 1. Check that hardware is secure, such as: the equipment: seat, frame and handlebars. water bottle holder, flywheel nuts, Pay special attention to the seat post, belt/chainguard bolts, brake caliper lock nuts...
