Summary of Contents for Freund FE-W826-WD
-
Page 1: Fe-W826-Wd

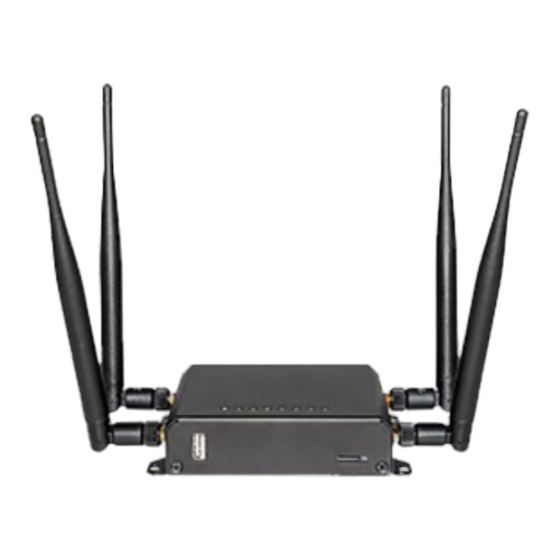

FREUND USER MANUAL FE-W826-WD User Manual FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Hercegovina www.ip-integra.com info@ip-integra.com Tel. +387 33 922 890... -
Page 2: Table Of Contents
FREUND USER MANUAL Contents FE-W826-WD ..................... 1 Connecting the device .................. 4 Authorization and Login page ................ 4 Interface ..................... 6 3.1 Status ....................... 6 3.1.1 Overview ..................... 7 3.1.2 Routes ....................7 3.1.3 Logging .................... - Page 3 FREUND USER MANUAL 3.4.5 TTL Settings ..................20 3.4.6 Diagnostics ..................21 3.4.7 Firewall ..................... 21 3.4.8 Quality of Service ................22 3.4.9 Load Balancing .................. 22 3.5 Logout ....................23...
-
Page 4: Connecting The Device
Computer you are using to set up the device. 2. Authorization and Login page In order to access the FE-W826-WD 4G router and configure it, you first need to open your web browser and type the default management address: ‘192.168.1.1’. - Page 5 FREUND USER MANUAL A following screen will be displayed: The default username is ‘root’ and default password is ‘admin’. After successfully typing in the credentials and clicking ‘LOGIN’, following screen will be shown.
-
Page 6: Interface
FREUND USER MANUAL 3. Interface After successful login to device, on the left side of the interface we can see the menu that includes: Status, System, Services, Network, Logout 3.1 Status If we click on Status, we can see submenu containing:... -
Page 7: Overview
FREUND USER MANUAL 3.1.1 Overview Under Overview submenu, following information can be found: Hostname, Firmware version, Kernel Version, Local time, Uptime, and Average Load. Overview 3.1.2 Routes Under Routes submenu, we can see information about Active IPv4 and IPv6 Routes. -
Page 8: Logging
FREUND USER MANUAL 3.1.3 Logging Under Logging submenu, we can see two additional submenus: System Log and Kernel Log. System Log... -
Page 9: Realtime Graphs
FREUND USER MANUAL 3.1.4 Realtime Graphs Under Realtime Graphs, we can see Load as well as Traffic, Wireless and Connections submenus. • Load submenu gives information about Peak and Average load in 1 minute, 5 minute and 15 minute load(and 3 minute window Graph with 3 seconds interval). -
Page 10: Load Balancing
FREUND USER MANUAL 3.1.5 Load Balancing Under Load Balancing submenu, we can see which interface is online (4G and WAN). Clicking on Detail will show additional information (connected networks, active rules). Diagnostics tab gives us several options: •... -
Page 11: System
FREUND USER MANUAL 3.2 System If we click on System, we can see submenu containing: System, Administration, Web CMD, Backup/Flash Firmware, Reboot 3.2.1 System System submenu offers options to change Time and Time Zone, Hostname, Language and Theme. -
Page 12: Administration
FREUND USER MANUAL 3.2.2 Administration Administration submenu allows us to change the password of the device. Administration 3.2.3 Web CMD Web CMD submenu allows usage of the CMD by entering commands into the shell. -
Page 13: Backup / Flash Firmware
FREUND USER MANUAL 3.2.4 Backup / Flash Firmware Under Actions tab, it allows backing up and download of the current config files as well as restoring backed up configuration. It is also possible to upgrade the Firmware version of the device from the same tab. -
Page 14: Services
FREUND USER MANUAL 3.3 Services If we click on Services, we can see submenu containing: Wifidog Settings, Dynamic DNS, Scheduled Reboot, Cloud Service, Watch Dog, OpenVPN, Network shares 3.3.1 WiFiDog WiFiDog Settings submenu allows enabling the Wifidog, Setting up the gateway ID, Domain name or IP Address. -
Page 15: Dynamic Dns
FREUND USER MANUAL 3.3.2 Dynamic DNS Dynamic DNS allows you to access your devices from the internet via a simple to remember domain name while still having a dynamically changing IP address. Dynamic DNS 3.3.3 Scheduled Reboot... -
Page 16: Cloud Service
FREUND USER MANUAL 3.3.4 Cloud Service It is possible to log in to the device remotely. To turn it on, you need to click on the Services button, and then Cloud Service. Following screen will show. -
Page 17: Openvpn
FREUND USER MANUAL 3.3.6 OpenVPN Allows accessing the list of configured OpenVPN instances. Also allows configuration through a template. You can upload an OpenVPN configuration file by clicking on the Browse button and selecting the wanted file in the File Browser and submit by clicking the Upload button. -
Page 18: Network
FREUND USER MANUAL 3.4 Network If we click on Network, we can see submenu containing: Interfaces, Wireless, Switch, DHCP, Custom TTL, Diagnostics, Firewall, QoS, Load Balancing 3.4.1 Interfaces On this page you can configure the network interfaces. You can bridge several interfaces by ticking the "bridge interfaces"... -
Page 19: Wireless
FREUND USER MANUAL 3.4.2 Wireless Under Wireless, you have overview of your device Controller. Clicking on ‘Edit’ button, Device Configuration page will open. The Device Configuration section covers physical settings of the radio... -
Page 20: Dhcp
FREUND USER MANUAL 3.4.4 DHCP Dnsmasq is a combined DHCP-Server and DNS-Forwarder for NAT firewalls. DHCP and DNS 3.4.5 TTL Settings Time to live (TTL) or hop limit is a mechanism which limits the lifespan or lifetime of data in a computer or network. -
Page 21: Diagnostics
FREUND USER MANUAL 3.4.6 Diagnostics Diagnostics 3.4.7 Firewall Under Firewall submenu, there are following tabs: General Settings - The firewall creates zones over network interfaces to control network traffic flow. Port Forwarding - Allows remote computers on the Internet to connect to a specific computer or service within the private LAN. -
Page 22: Quality Of Service
FREUND USER MANUAL 3.4.8 Quality of Service With QoS you can prioritize network traffic selected by addresses, ports or services. Quality of Service 3.4.9 Load Balancing With load balancing, traffic is distributed across a number of connections. -
Page 23: Logout
FREUND USER MANUAL MWAN3 uses normal Linux policy routing to balance outgoing traffic over multiple WAN connections. Linux outgoing network traffic load-balancing is performed on a per-IP connection basis – it is not channel-bonding, where a single connection (e.g. a single download) will use multiple WAN connections simultaneously. - Page 24 FREUND USER MANUAL Freund Elektronik A/S, in cooperation with our sister company Freund Elektronika D.O.O. Sarajevo, is developing an IP-Based Intercoms, Audio Systems, Access Control and Smart Home solutions. As a developer, manufacturer, and reseller, we have been self-improving and perfecting ourselves for over 30 years.
