ASSEMBLY INSTRUCTION
E180D-30 CHOP COCKTAIL TABLE
A
Stretcher
2pcs
E
Connector Tube
12pcs
I
Glass Pad
20mm
4pcs
B
Stretcher
4pcs
F
Glass Top
1pc
J
Open Wrench
10mm
1pc
C
Stretcher
2pcs
G
Long Bolt w/ Stopper
424mm
4pcs
K
Plastic Cap
3/8"
4pcs
This page lists all the contents included in the box.
Please take the time to identify the hardware as
well as the individual components to this product.
As you unpack and prepare for assembly, place
the contents on a carpeted or padded area to
protect them from damage.
1
D
Stretcher
4pcs
H
Nut
1/4"
4pcs
Advertisement
Table of Contents
Related Manuals for ROOMS TO GO E180D-30
Summary of Contents for ROOMS TO GO E180D-30

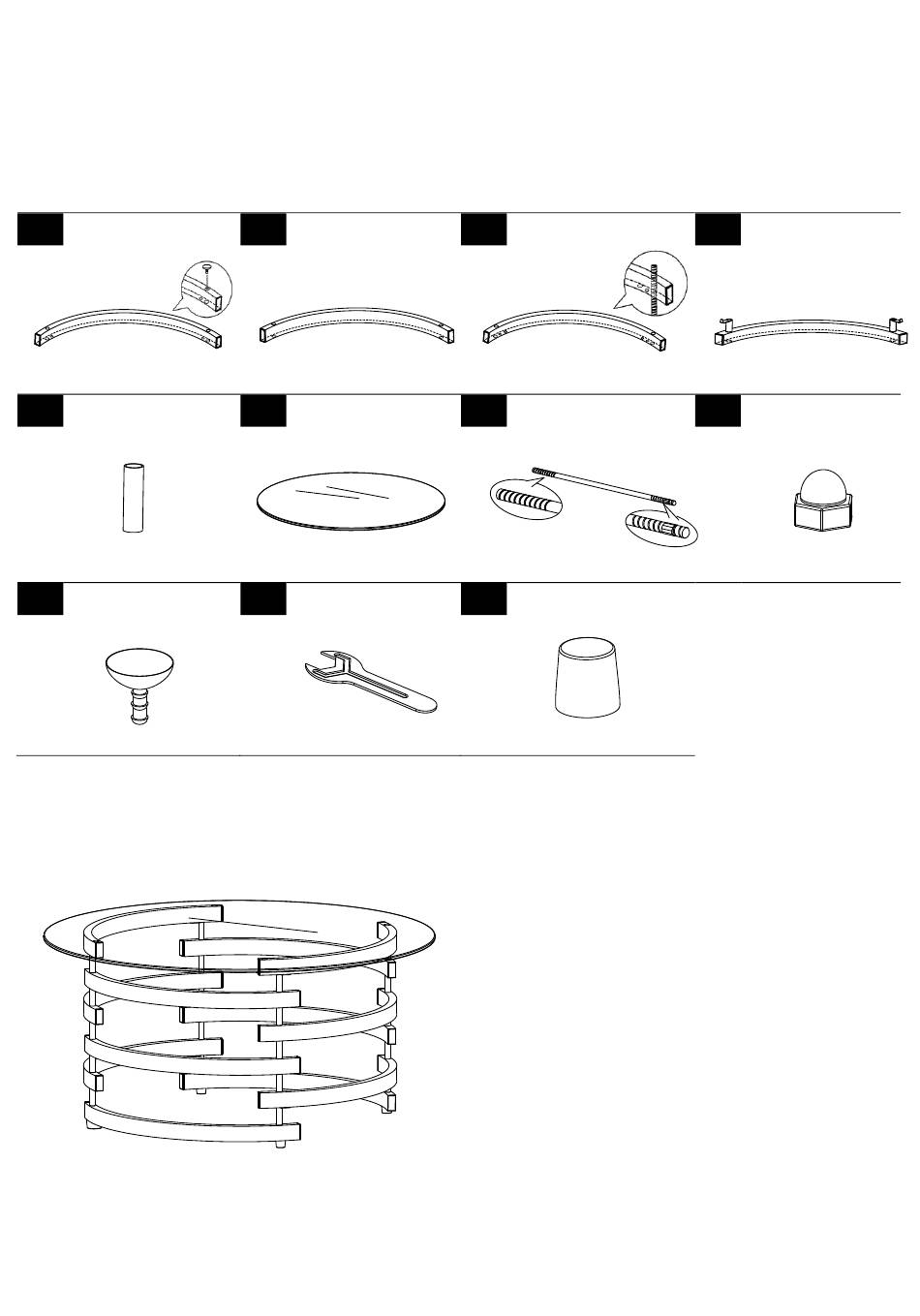

- Page 1 ASSEMBLY INSTRUCTION E180D-30 CHOP COCKTAIL TABLE Stretcher Stretcher Stretcher Stretcher 2pcs 4pcs 2pcs 4pcs Connector Tube Glass Top Long Bolt w/ Stopper 424mm 1/4” 12pcs 4pcs 4pcs Glass Pad Open Wrench Plastic Cap 20mm 10mm 3/8” 4pcs 4pcs This page lists all the contents included in the box.
- Page 2 *** Do not tighten screws & bolts until the entire unit is completely assembled. Screw Long Bolts (G) into corresponding holes on the bottom of Stretchers (A) as shown and tighten. Insert attached Long Bolts (G) through the corresponding holes on Stretchers (D). Secure Stretchers (D) to Stretchers (A), then follow with Connector Tubes (E) as shown.
- Page 3 Attach Connector Tubes (E) to each Long Bolt (G) and follow with Stretchers (B) as shown. Repeat step to add another level of Stretchers (B). Attach Connector Tubes (E) to each Long Bolt (G) and add Stretchers (C) as shown.
- Page 4 Attach Stretchers (D) to the Stretcher (C) as shown. Tighten Nuts (H) to fix the frame by Open Wrench (J). Then, put Plastic Caps (K) on Nuts (H) as shown. Turn the assemble frame upright and insert Glass Pads (I) into Stretchers (A) as shown, then place Glass Top (F).
