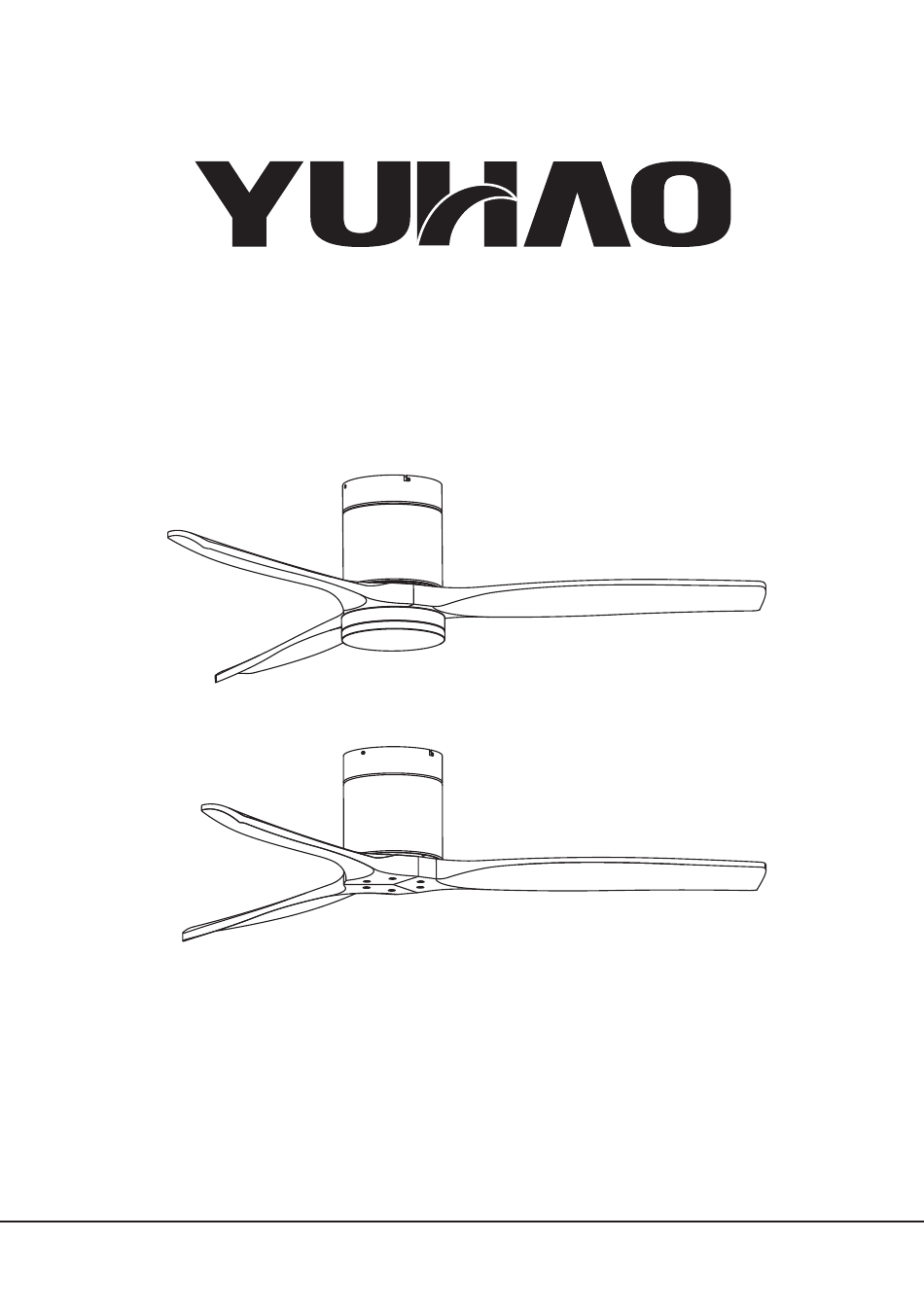

Model No.: 1073L
/1073N
Ceiling Fan
Installation Instructions
THANK YOU
We appreciate the trust and confidence you have placed in YUHAO through the
purchase of this ceiling fan.We strive to continually
create quality products designed to enhance your home.Vis sit us online to see our
full line of products available for your home
improvement needs.Thank you for choosing YUHAO!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for YUHAO 1073L
Summary of Contents for YUHAO 1073L
- Page 1 Ceiling Fan Installation Instructions THANK YOU We appreciate the trust and confidence you have placed in YUHAO through the purchase of this ceiling fan.We strive to continually create quality products designed to enhance your home.Vis sit us online to see our full line of products available for your home improvement needs.Thank you for choosing YUHAO!
-
Page 2: Table Of Contents
Table of contents Table of contents Safety Precautions Warranty Pre-Installation Tools needed Installation kit Blade balancing kit Specification Installation Step 1 (Ceiling bracket installation ) Step 2 (Receiver and wiring installation) Step 3 (Light kit installation) Step 5(Switch on and ceiling fan works) Remote Control ( Emitter ) Operation TroubleShooting Balancing... -
Page 3: Safety Precautions
Safety Precautions The information contained in the following pages has been prepared to ensure your maximum enjoyment of your fan Please remove the fuse or turn off the circuit breaker to cut off the power before installing the fan. Ensure all electrical connections are in compliance with local laws, regulations and national eletrical codes. -
Page 4: Warranty
Warranty The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any glass), to be free from defects in workmanship and material at the time of shipment from the factory for a period of three years after the date of purchase by the original purchaser. -
Page 5: Installation Kit
Pre-Installation Installation kit Part Description Quantity Blade attachment screw with lock washer Wire nut Screws A Screws B Blade balancing kit for further assistance. Visit www.pmwfan.com... -
Page 6: Specification
Pre-Installation Specification (1073-3 N) (1073-3 L) AAA 1.5V Part Description Quantity Bracket Body/motor Light kit Light cover Blades Receptor Remote control Battery for further assistance. Visit www.pmwfan.com... -
Page 7: Installation
Installation Step 1 (Ceiling bracket installation and fan into the installed Bracket.) ① Turn off the fan power supply at the circuit breaker box and the wall switch. Choose the following installation methods according to the actual situation of the roof. ②... -
Page 8: Step 2 (Receiver And Wiring Installation)
Installation Step 2 (Wiring and fan into the installed Bracket.) ① Connect the wires according to the polarity (the color of the House power cord may be different if the color is the same). House power wire Intput wire For light To motor Output Wire Remove two separated pre-lock... - Page 9 Installation ④ Remove the body from the Bracket hook, lift and rotate the it to make the seven-character slot of the body is hung on the two nails on the Bracket ⑤ Tighten the screws for further assistance. Visit www.pmwfan.com...
-
Page 10: Step 3 (Light Kit Installation)
Installation Step 3 (Blades and Light kit installation) ① Align the connected blade with the mounting hole, and then fix it with screws. ② Remove the pre-installed screws. Connect the light kit cable, and then lock the light kit.(1073-3 N invalid) Lighting kit Insert for further assistance. -
Page 11: Step 5(Switch On And Ceiling Fan Works)
Installation Installation of light cover ③ (1073-3 N invalid) Step 4(Switch on and ceiling fan works) .10. for further assistance. Visit www.pmwfan.com... -
Page 12: Remote Control ( Emitter ) Operation
Remote Control ( Emitter ) Operation If emitter can not control the fan ① ② 1. Please check whether the battery is ③ installed correctly and whether it is charged. If necessary, replace the remote control battery. 2. Please check if there are similar remote control products... -
Page 13: Troubleshooting
TroubleShooting WARNING: Make sure the power is off at the electrical panel box before you attempt any repairs. Refer to step 7 “Making the electrical connections” on page 13. Problem Solution □ Check the main and branch circuit fuses or breakers. □... -
Page 14: Balancing
Balancing – Wobbling problems during fan operation If the fan body wobbles during its operation, this is not a sign of malfunctioning (even if it wobbles a few centimeters). To reduce wobbling, you can turn off the fan,and: 1.Check that all blades are properly fastened by tightening their screws. 2.Check the distance between each blade and the ceiling. - Page 16 Questions, problems, missing parts? Before returning to the store, visit www.pmwfan.com for further assistance. Retain this manual for future use. 22-07...
