ASSEMBLY INSTRUCTION

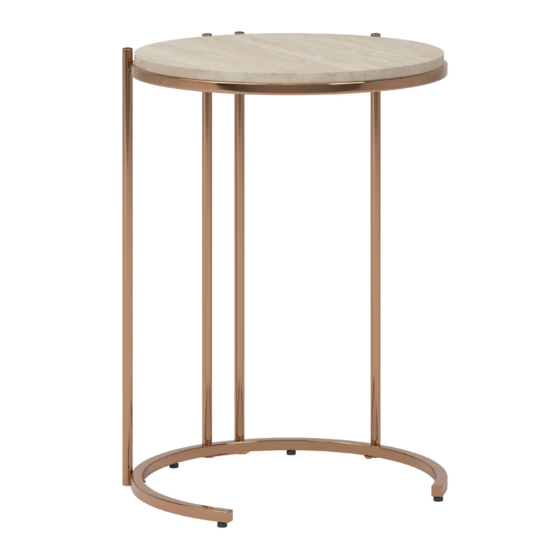

E816A SIDE TABLE
A
Wood Top
1pc
D
Metal Bar
2pcs
G
Allen Wrench
1/4"
1pc
B
Base
1pc
E
Bolt
1/4" x 1/2"
8pcs
This page lists all the contents included in the box.
Please take the time to identify the hardware as
well as the individual components to this product.
As you unpack and prepare for assembly, place the
contents on a carpeted or padded area to protect
them from damage.
1
C
Side Panel
1pc
F
Leveler
12mm
2pcs
Advertisement
Table of Contents
Related Manuals for ROOMS TO GO E816A
Summary of Contents for ROOMS TO GO E816A
- Page 1 ASSEMBLY INSTRUCTION E816A SIDE TABLE Wood Top Base Side Panel Metal Bar Bolt Leveler 1/4” x 1/2” 12mm 2pcs 8pcs 2pcs Allen Wrench 1/4” This page lists all the contents included in the box. Please take the time to identify the hardware as well as the individual components to this product.
- Page 2 *** Do not tighten screws & bolts until the entire unit is completely assembled. Attach Side Panel (C) and Metal Bar (D) to Wood Top (A) by Bolt (E) and Allen Wrench (G) as shown. Attach Base (B) to Side Panel (C) and Metal Bar (D) by Bolt (E) and Allen Wrench (G). Then attach Leveler (F) to Base (B) as shown.
