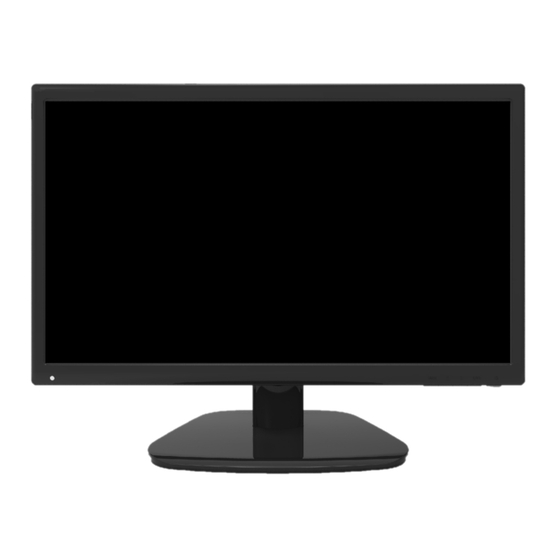

Tyco ADLCD20GBHD User Manual

American dynamics monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
American Dynamics Monitor
User Guide
LCD Monitors:
ADLCD20GBHD, ADLCD22GBHD
ADLCD24GBHD, ADLCD32GBHD
8200-1914-02 A0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADLCD20GBHD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tyco ADLCD20GBHD

Summary of Contents for Tyco ADLCD20GBHD

  • Page 1 American Dynamics Monitor User Guide LCD Monitors: ADLCD20GBHD, ADLCD22GBHD ADLCD24GBHD, ADLCD32GBHD 8200-1914-02 A0...
  • Page 2 Tyco International Ltd. will aggressively enforce its intellectual property rights to the fullest extent of the law, including pursuit of criminal prosecution wherever necessary. All trademarks not owned by Tyco International Ltd. are the property of their respective owners, and are used with permission or allowed under applicable laws.

  • Page 3: Table Of Contents

    4. Operation & Adjustment ................... 5 Control Panel (ADLCD20GBHD, ADLCD22GBHD, ADLCD24GBHD) ........... 5 Control Panel (ADLCD32GBHD) ......................5 Key Process ............................. 6 Hot keys (ADLCD20GBHD, ADLCD22GBHD, ADLCD24GBHD model) ..........6 Hot keys (ADLCD32GBHD model) ......................6 Adjustment procedure ..........................7 5. OSD Function ......................8 COLOR ..............................

  • Page 4: Introduction

    1. Introduction 1.1 Packing This manual explains how to correctly install, operate and get the best performance from your monitor. Please read this installation manual carefully before installing your monitor, then keep it near your monitor for quick reference. First, please check that the contents of the box corresponds with the following checklist: •...

  • Page 5: Assembling The Monitor Stand

    1. Put a smooth pad or cloth on a level surface. Place the monitor on the surface facing downwards. 2. ADLCD20GBHD, ADLCD24GBHD only: Insert the arm of the monitor stand into the slot on the back of the monitor as shown below.

  • Page 6: Adlcd20Gbhd

    ADLCD20GBHD ADLCD22GBHD ADLCD24GBHD ADLCD32GBHD...

  • Page 7: Connections

    3. Connections ADLCD20GBHD 1. HDMI Input 2. VGA Input 3. AC Input ADLCD24GBHD 1. AC Input 2. HDMI Input 3. VGA Input 4. Stereo Input ADLCD22GBHD, ADLCD32GBHD 1. HDMI Input 2. VGA Input 3. Stereo Input 4. AC Input...

  • Page 8: Operation & Adjustment

    4. Operation & Adjustment Control Panel (ADLCD20GBHD, ADLCD22GBHD, ADLCD24GBHD) 1. MENU (*) Opens the ON SCREEN DISPLAY (OSD). 2. ◀ (*) In the OSD window and decrease the value of any selected menu. 3. ▶ (*) In the OSD window and increase the value of any selected menu.

  • Page 9: Key Process

    3. Use MENU button to select sub menus. 4. Press UP-DOWN buttons (ADLCD32GBHD models) you can make adjustments as necessary. 5. Press LEFT-RIGHT buttons (ADLCD20GBHD, ADLCD22GBHD, ADLCD24GBHD models) you can make adjustments as necessary. 6. To exit OSD, press AUTO (ADLCD20GBHD, ADLCD22GBHD, ADLCD24GBHD, ADLCD32GBHD).

  • Page 10: Adjustment Procedure

    Adjustment procedure Perform the Auto tracking Adjust the Is the H.Size Clock control. proper? Perform the H - V Position. Is the noise displayed on the screen? Adjust the Phase until the screen is cleared. Is the noise displayed on the screen yet?

  • Page 11: Osd Function

    5. OSD Function COLOR Contrast Brightness Color Temp. 9300 6500 5500 USER Auto Adjust Color Adjust 60Hz 1280x1024 Contrast  Adjust the contrast of image, the difference between light and dark areas on the screen. Brightness  Adjust the brightness of image. Color Temp.

  • Page 12: Picture

    PICTURE H-Position V-Position Clcok Phase 1280x1024 60Hz H-Position  Adjust the position of the display horizontally V-Position  Adjust the position of the display vertically Clock  Adjust the width (horizontal size) of the screen image. Phase  Remove any horizontal noise and clear or sharpen the image.

  • Page 13: Osd Menu

    OSD MENU Language OSD H-Pos. OSD V-Pos OSD Timer Transparency 1280x1024 60Hz Language  Select language for OSD. OSD H-Position  Adjust the OSD position of the display horizontally (left or right). OSD V-Position  Adjust the OSD position of the display vertically (up or down). OSD Timer ...

  • Page 14: System

    SYSTEM Mode PC Game Movie Audio Volume Signal Source Aspect Ratio 16:9 1280x1024 60Hz Mode  Select the picture mode. (PC/Game/Movie) Audio Volume  Adjust the audio volume Signal Source  Select the signal source (VGA/DVI) or (VGA/HDMI). Aspect Ratio ...

  • Page 15: Reset

    RESET Reset 1280x1024 60Hz Reset  Reset the screen to the Factory Preset Display Settings.

  • Page 16: Preset Display Modes

    Preset Display Modes Pixel Format Vertical Freq. (Hz) Remark 640 x 480 60.000 all models 640 x 480 67.000 all models 640 x 480 70.000 VGA Only 640 x 480 72.000 all models 640 x 480 75.000 all models 720 x 400 70.000 all models 800 x 600...

  • Page 17: Self-Diagnosis

    Self-diagnosis If there is no image, the Self-Diagnosis screen will be displayed. Self-Diagnosis function checks if a signal is present No Input Signal No Signal screen is displayed when the D- Sub signal connector is connected but the status of the monitor is on DPMS mode or when the Analog signal cable is disconnected.

  • Page 18: Specifications

    6. Specifications Items ADLCD20GBHD ADLCD22GBHD Screen Size 19.53” 21.5” Pixel Pitch 0.2265x0.221mm 0.24825x0.24825mm Viewing Angle 178º/178º 170º/160º Panel Contrast Ratio 3000:1 (Typ.) 1000:1 (Typ.) Response Time 26ms Brightness 250cd/m2 (Typ.) 300cd/m2 (Typ.) Recommend Resolution 1920x1080@60Hz 1920x1080@60Hz Speaker Power 2Wx2 Audio...
  • Page 19 Items ADLCD24GBHD ADLCD32GBHD Screen Size 23.8” 32” Pixel Pitch 0.2745 x 0.2745mm 0.12125x0.36375mm Viewing Angle 178º/178º 178º/178º Panel Contrast Ratio 1000:1 1000:1 (Typ.) Response Time 14ms Brightness 250cd/m2 (Typ.) 300cd/m2 (Typ.) Recommend Resolution 1920x1080@60Hz 1920x1080@60Hz Speaker Power 2Wx2 2Wx2 Audio Speakers Built-in Built-in...

  • Page 20: Removing The Monitor Stand

    2. Place a cushion or a soft cloth on the floor and place the monitor on top of it with the monitor screen facing the floor. 3. ADLCD20GBHD, ADLCD24GBHD only: Using a screwdriver or a similar object with a sharp end, carefully detach the supporting arm by pressing the groove on the back of the supporting arm (note that the fixation point can be broken if too much force is applied).

  • Page 21: Adlcd24Gbhd

    ADLCD24GBHD ADLCD32GBHD...

  • Page 22: Attaching The Vesa Arm

    Tighten the screws at the locations indicated by the arrows shown in the following illustration. The monitor's installation surface is compatible with other types of VESA standard stands. VESA mount specifications: Model Specifications ADLCD20GBHD VESA standard: 100 x 100mm (3.94 x 3.94inch) ADLCD22GBHD Screw thread: M4 screw ADLCD24GBHD Length: 8 ~ 10.0 mm...

  • Page 23: Troubleshooting

    9. Troubleshooting Symptom Check Adjust Clock to set the screen position and adjust Clock value Picture is jittery carefully until a noise is no longer displayed. Check if the power switch and computer power switch are in the On position Check if the signal cable is correctly connected to the video card.
