Installation

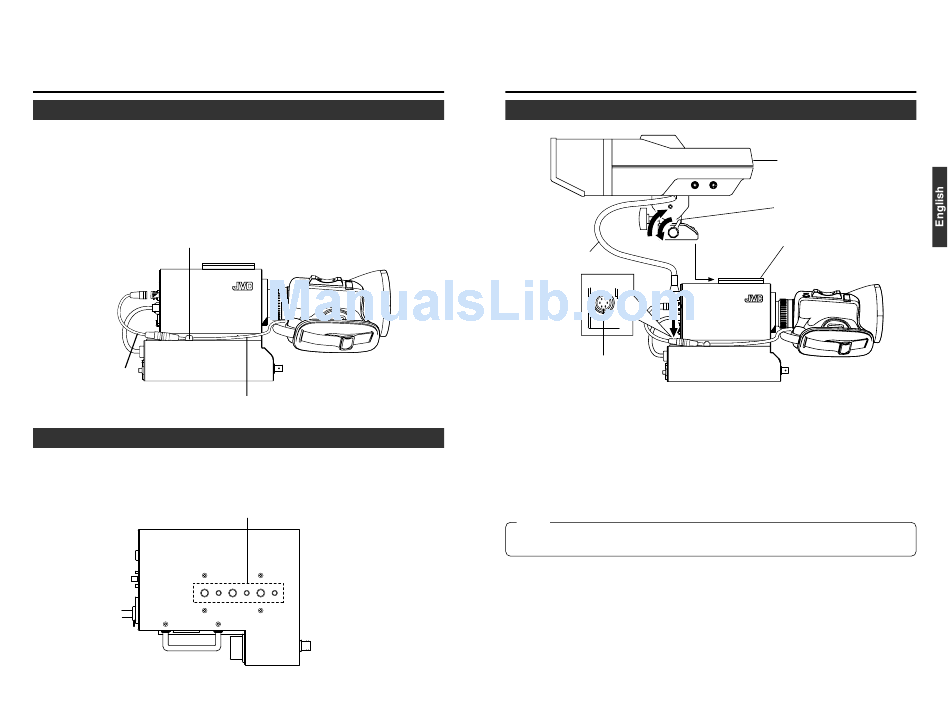

Mounting the Lens onto the Camera

Please refer to KY-F560 instruction manual on mounting the lens.
● When using the under-mentioned types of lens, lens cable ECE-R22 which is sold sepa-
rately must be used. (Please consult your local JVC authorized service agent for details of
the cable to be used.)
S17 x 6.6 BRM(FUJINON)
YH16 x 7K12U(CANON)
● Use the cable clamp to secure the lens cable to this unit.
Cable clamp
ECE-R22
Lens cable

Mounting this Unit onto the Tripod

Mount and fix this unit onto the tripod using the mulitple screw holes provided beneath it. Use
the appropriate screw holes for mounting this unit such that it could be balanced properly on
top of the tripod.
16
Lens cable
Screw holes

Mounting VF-P400 4-inch Viewfinder on this Unit

3.
1.
Viewfinder Cable
4.
Viewfinder terminal
1.
Loosen the viewfinder lock lever by turning it anti-clockwise.
2.
Slide the viewfinder forward along the viewfinder holder guide on top of this unit.
3.
Turn the viewfinder lock lever clockwise to lock it.
4.
Plug the viewfinder cable connector into this unit's viewfinder terminal.
Note
When "ASPECT RATIO" item under the "SYSTEM" menu screen of KY-F560 is set to
"16:9", images will appear vertically elongated in the View Finder VF-P400.
VF-P400 4-inch
Viewfinder
Lock lever
Viewfinder holder
2.
17
