TECHNICAL SPECIFICATIONS
LED Type
LED Power
Power Connection
Colour Temp, CRI
& Lumens Opt. 2
Colour Temp, CRI
& Lumens Opt. 3
Lens Options
LED Life
Operating Environment
Min. Ambient Temperature
Max. Ambient Temperature
Material
Max Fitting Cable Length
(28AWG)
Notes:
Maximum cable length is defined by no discernable reduction
in light output.
*500mA variant not for use in USA or Canada
Problem
Probable Causes
Mains supply off
Loose mains plugs
Loose DC output wire or
connection
Splitter LED channel not
terminated
Single failed LED
Constant Current System
System is dead - no light
More than one failed LED
output from LED's
Driver failed
Cable between driver and
splitter failed
Short circuit - damages cable
Constant Current System
between LED and splitter
Some LED's not working
LED short circuit
Faulty or wrong connection at driver
or dimmer control box
Constant Current System
LED's on full illumination
Faulty dimmer potentiometer or
damaged dimmer control cable
- not dimming
Failed driver
Oslon Square
1W @ 350mA
1.5W @ 500mA*
2 pin Molex
3000K, 51 lm/w
>96 CRI
4000K, 54 lm/w
>95 CRI
16° / 23° / 36° / 61°
>50,000h
Indoor / dry
10°C
+40°C
Aluminium
10m (32.8')
Test & Remedy
Check supply and reinstate.
Check plugs.
Check all connections.
Check all splitter channels have LED
fittings plugged in or have continuity
jumpers fitted. Plug in LED's and/or jumpers
With power ON, carry out one of tests
detailed in fault finding guide. Replace
faulty LED.
Gradually replace LED plugs with
continuity jumpers until LED's light. Do
not reduce the number of LED's plugged
into the splitter below the driver minimum
Check output with DVM. With power ON
and no LED's lit, DC voltage output to
LED's should be at maximum
With power ON and splitter cover
removed, put DVM across input to splitter.
DC voltage input to splitter (allowing for
volt drop in cable) should be at
maximum. If no voltage fault find and/or
replace cable.
Repair or replace.
Replace LED and cable.
Check driver and dimmer connections.
Replace/repair as necessary.
Remove dimmer control cable from
dimmer. Check continuity of cable and
dimmer pot. Replace/repair as necessary.
Replace driver.

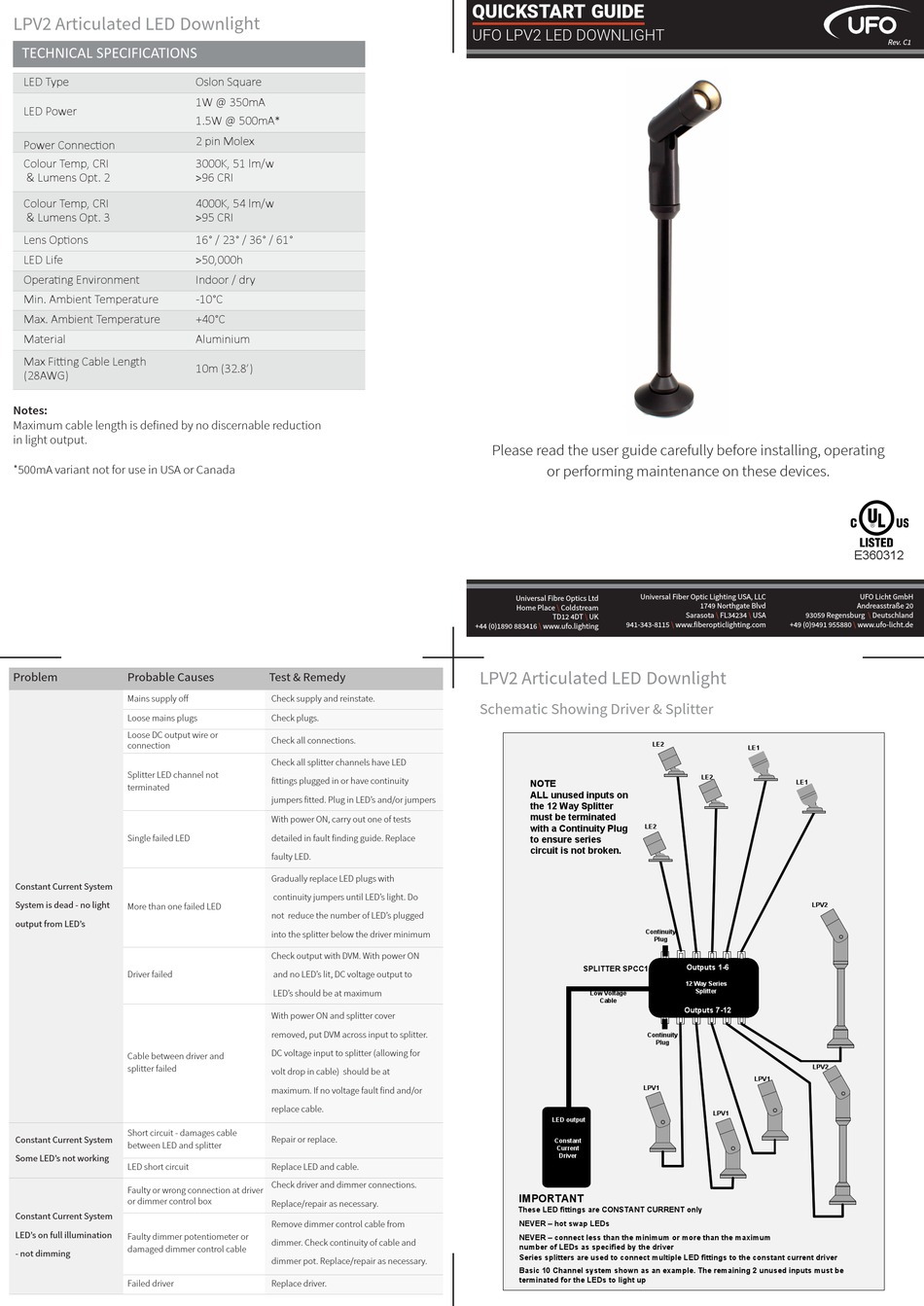

QUICKSTART GUIDE
UFO LPV2 LED DOWNLIGHT
Please read the user guide carefully before installing, operating
or performing maintenance on these devices.
Universal Fiber Optic Lighting USA, LLC
Universal Fibre Optics Ltd
Home Place
\
Coldstream
TD12 4DT
\
UK
941-343-8115
+44 (0)1890 883416
\
www.ufo.lighting
LPV2 Articulated LED Downlight
Schematic Showing Driver & Splitter
NOTE
ALL unused inputs on
the 12 Way Splitter
must be terminated
LE2
with a Continuity Plug
to ensure series
circuit is not broken.
Continuity
SPLITTER SPCC1
Low Voltage
Cable
LPV1
LED output
Constant
Current
Driver
IMPORTANT
These LED fittings are CONSTANT CURRENT only
NEVER – hot swap LEDs
NEVER – connect less than the minimum or more than the maximum
number of LEDs as specified by the driver
Series splitters are used to connect multiple LED fittings to the constant current driver
Basic 10 Channel system shown as an example. The remaining 2 unused inputs must be
terminated for the LEDs to light up
