Page 1
Spray Height Controller Case 44 Series Main Lift Option Installation Manual (3-bolt) Improving the competitiveness of Industry and Agriculture through Precision Measurement...
Page 2
Reorder P/N: UC4+CS4-3B-INST Rev A (Case 44 Series Main Lift Kit – 44952D) NOTICE NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and without the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information contained...

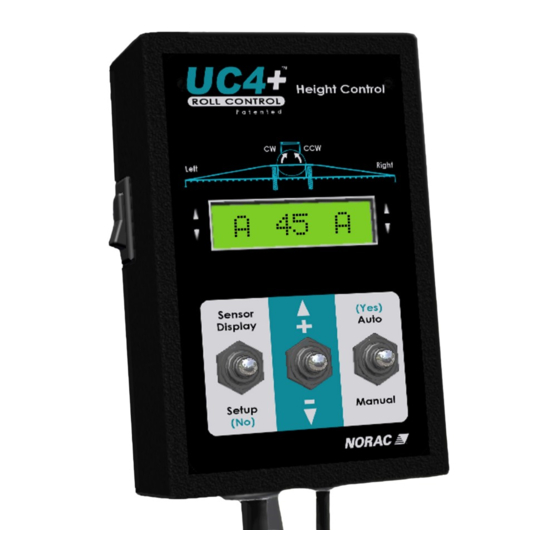

INTRODUCTION Congratulations on your purchase of the NORAC UC4+ Spray Height Controller. This system is manufactured with top quality components and is engineered using the latest technology to provide operating features and reliability unmatched for years to come. When properly used the system can provide protection from sprayer boom damage, improve sprayer efficiency, and ensure chemicals are applied correctly.
CABLE VALVE DT ROLL WITH PIGTAIL 44865-48 HYDRAULICS FITTING KIT - CS4 44863-38 HOSE ASSEMBLY 122R2-06 156 IN L 6FORX 6FORX90 UC4+CS4-3B-INST MANUAL INSTALLATION UC4+ CASE 44 SERIES MAIN LIFT KIT - 44952D 44952D VALVE ASSEMBLY SINGLE STATION EXPANSION PROPORTIONAL...
Page 6
FACE P - PIPE The use of dielectric grease is not recommended on any NORAC electrical connections. To ensure all stainless steel hardware does not gall or seize apply a light coating of the supplied Permatex Anti-seize grease to all threaded parts upon installation. Permatex Anti-seize lubricant is...
6. Thread the 4.5” studs into the UC4+ block. 2. On a clean surface remove all plastic plugs from the NORAC expansion valve block (V01). 3. Install the 6MB 6MOR fitting (F04) into the A and B ports of the expansion block (Figure 2).
Page 9
Case 6MORT (Figure 8. Tighten the nuts on the studs to 31 ft-lbs Torque. 12. Connect the NORAC hose (H02) that is connected to the B port on the NORAC expansion block to the tee fitting F03.
MAIN LIFT VALVE INSTALLATION If the sprayer was built prior to model year 2007 then the main lift valve may have to be replaced with a part from your local Case Dealership. If the booms will go up, but not down; the valve will need to be replaced.
ELECTRICAL INSTALLATION Figure 8 – Cable Connections 5. Connect cable C01 to the three pin Cable C01 and C02 are the only shroud on cable C02. cables included in the kit. 6. Connect the 2-pin connector on cable 1. Locate the end of the previously C01 marked ROLL CW to the coil on installed valve extension cable.
COMPLETING THE INSTALLATION You can now continue to install the remainder of your UC4+ Spray Height Control System. If the system is fully installed then refer to the UC4+ Operators Manual to run an Automatic Install with the CS4 type selected.
7.2 I C02: 44658-46D – C ABLE VALVE WITH PIGTAIL...
Page 15
Canada NORAC Systems International Inc. CALL TOLL FREE: 1-800-667-3921 (306)664-6711 SHIPPING ADDRESS: 3702 Kinnear Place Saskatoon, SK S7P 0A6 United States Norac, Inc. CALL TOLL FREE: 1-866-306-6722 (763)786-3080 SHIPPING ADDRESS: 1290 Osborne Rd NE, Suite F Fridley, MN 55432-2892...
