Summary of Contents for DS18 ZXI-44

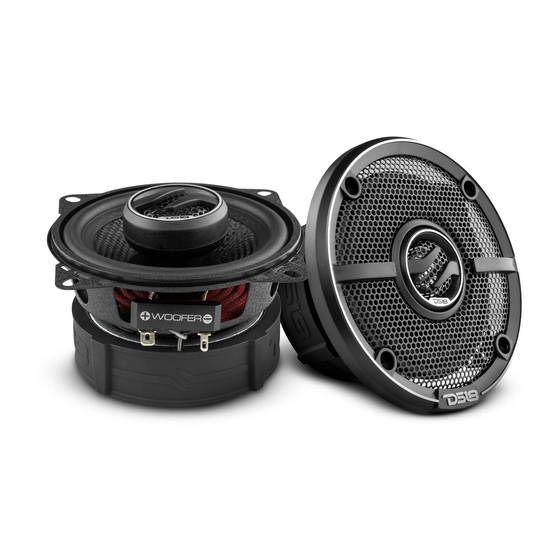

- Page 1 OWNER'S MANUAL COAXIAL SPEAKERS ZXI-44 ZXI-62C ZXI-354 ZXI-464 ZXI-654 ZXI-694 ZXI-5254...
- Page 2 OWNER'S MANUAL COAXIAL SPEAKERS SPECIFICATIONS ZXI-44 ZXI-354 ZXI-464 Nominal Diameter 4” 3.5” 4x6” Nominal Impedance 4 ohm 4 ohm 4 ohm RMS Power Handling 50 Watts 60 Watts MAX Power Handling 150 Watts 120W 180 Watts Sensitivity (1w/1m) 88dB 86dB...
- Page 3 SPECIFICATIONS ZXI-654 ZXI-694 ZXI-5254 Nominal Diameter 6.5” 6X9” 5.25” Nominal Impedance 4 ohm 4 ohm 4 ohm RMS Power Handling 80 Watts 120 Watts 60 Watts MAX Power Handling 240 Watts 360 Watts 180 Watts Sensitivity (1w/1m) 89dB 92dB 89dB Frequency Response 40Hz-20KHz 31.5Hz-20KHz...
- Page 4 OWNER'S MANUAL COAXIAL SPEAKERS ZXI-62C GENERAL 6.5” / 165mm Nominal Diameter 4 ohm Nominal Impedance RMS Power Handing 240W MAX Power Handing 88dB Sensitivity (1w/1m) 40Hz-20Khz Frequency Response 60Hz Recommended HI Pass Crossover 2-Way Speaker Type WOOFER 1” / 25.5mm Voice Coil Diameter Voice Coil Former Material EISV...
- Page 5 ZXI-44 3.31" / 84mm 3.66" / 93mm...
- Page 6 OWNER'S MANUAL COAXIAL SPEAKERS ZXI-354 2.36" / 60mm 2.80" / 71mm...
- Page 7 ZXI-464 5.94" / 151mm 4.84" / 123mm 3.31" / 84mm 3.46X5.51" / 87.8X140mm...
- Page 8 OWNER'S MANUAL COAXIAL SPEAKERS ZXI-654 3.70" / 94mm 5.55" / 141mm...
- Page 9 ZXI-694 6.61" / 168mm 9.25" / 235mm 4.09" / 104mm 5.94X8.70" / 151X221mm...
- Page 10 OWNER'S MANUAL COAXIAL SPEAKERS ZXI-5254 3.31" / 84mm 4.45" / 113mm...
- Page 11 ZXI-62C WOOFER 3.70" / 94mm 5.55" / 141mm Woofer Measurements Overall Diameter ........6.50” / 165mm Overall Depth......... 2.61” / 66.3mm Front Mount Baffle Cutout..... 5.55” / 141mm Mouting Depth........2.36” / 60mm Motor Diameter........3.70” / 94mm...
- Page 12 OWNER'S MANUAL COAXIAL SPEAKERS ZXI-62C TWEETER Tweeter Measurements Overall Diameter ........2.12" / 54mm Overall Depth......... 1.19" / 30.2mm Front Mount Baffle Cutout..... 1.89" / 48mm Mouting Depth........0.79" / 20mm...
- Page 13 ZXI-62C CROSSOVER Crossover Measurements Overall Length ........2.56" / 65mm Overall Depth........5.04" / 128mm Overall Height........1.4" / 35.8mm...
- Page 14 OWNER'S MANUAL COAXIAL SPEAKERS ZXI-62C INSTALLATION...
- Page 15 FOR MORE INFORMATION PLEASE VISIT DS18.COM We LIKE IT LOUD...
