Summary of Contents for Rheem XpressHot

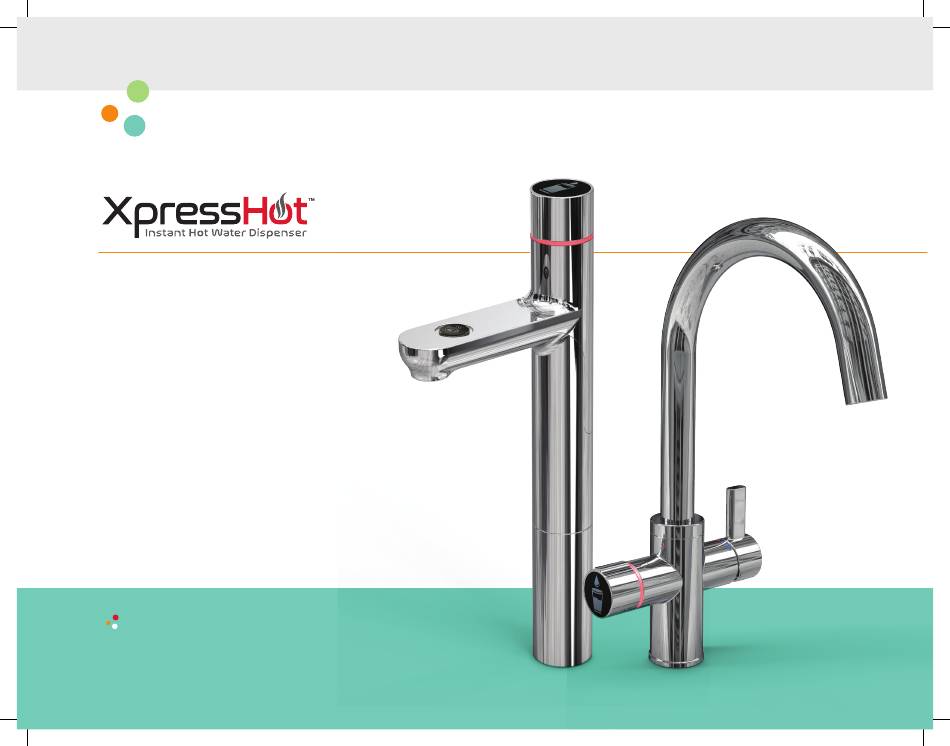

- Page 1 Getting Started Guide RheemLabs ™ INNOVATIVE DESIGN THAT MAKES YOUR LIFE EASIER.
- Page 2 Simplify Your Daily Routine...
- Page 3 • A standard 110V grounded outlet is required under the sink to supply electrical power • The XpressHot requires a wall outlet with a continuous power supply • The selected outlet must be fused and should not be controlled by the same wall switch that operates the disposal •...
-
Page 4: How To Use This Guide
Cold Important safety messages and notes that require your attention. These are indicated by caution icons or “WARNING” or “NOTE” language. FAUCE T NOTE: The ring flashes to indicate whether XpressHot is dispensing cold or hot water. - Page 5 H O W T O U S E T H I S G U I D E OVERVIEW COMPONENTS OF INSTALLED PRODUCT IN THIS PACKAGE Faucet or Dispenser Plastic Locking Clips Base Unit Hose Clamps (2 Dispenser, 1 Faucet) Filters Mounting Bracket &...
- Page 6 G E T TING STA RTE D GU ID E | Faucet & Dispenser Installation Steps...
- Page 7 FAU C E T A N D D I S P E N S E R I N S TA L L AT I O N S T E P S STEP 1 PREPARATION ENSURE REQUIRED MINIMUM CLEARANCE PREPARE THE INSTALL LOCATION •...
-
Page 8: Installation
G E T TING STA RTE D GU ID E | STEP 2 INSTALLATION PREPARE FAUCET OR DISPENSER ABOVE THE SINK • If the clear tubing isn’t connected to the dispenser or faucet, slide it onto the copper pipe that has the chamfered end, secure it with the included hose clamp and tug gently to ensure the connection is tight. - Page 9 FAU C E T A N D D I S P E N S E R I N S TA L L AT I O N S T E P S PREPARE PARTS UNDER THE SINK • If you’re installing the faucet into a stainless steel sink and your current faucet has a stabilization plate, you may be able to reuse it.
- Page 10 G E T TING STA RTE D GU ID E | STEP 3 CONNECTION ATTACH FAUCET OR DISPENSER TO THE BASE UNIT • Remove (and keep) the blue safety clip, then depress the cold-water connector while pulling up on the plug to remove it before attempting to insert the hose.
- Page 11 FAUCET ONLY: Use the included braided hose to connect your home’s cold-water supply outlet to the tee-connector on the base unit. Then connect the XpressHot faucet’s braided cold-water hose to the tee- connector. Next, connect the faucet’s braided hot-water hose to the hot- water supply outlet.
- Page 12 To turn on your XpressHot: • Press the power button on the base unit, and give your XpressHot time to heat the water, usually about 30 minutes. If you see any error codes, check the troubleshooting guide on page 14.
-
Page 13: Operating The Dispenser
Filters set to 98 (max.) will have a life of about 2,500 gallons (10,000 liters). • Tap the ECO button to set your XpressHot in energy-saving mode. ECO mode uses a heating algorithm that saves energy consumption but can potentially reduce the hot water available marginally at the set temperature. -
Page 14: Troubleshooting Guide
G E T TING STA RTE D GU ID E | TROUBLESHOOTING GUIDE Error Code / Solution Possible Cause Concern EXPERIENCING PROBLEMS WITH YOUR XPRESSHOT? • Purge the system by following • Not enough water in the tank. the steps to dispense hot water. -
Page 15: Important Notes
XpressHot until a technician can inspect it. As with any appliance, after many years of use, the XpressHot will NOTICE: If XpressHot is installed at high altitudes, water will boil at lower temperatures eventually start to fail. To mitigate possible personal injury or property damage, the unit should be periodically checked for any signs of leaks and/or corrosion and replaced as necessary. - Page 16 XpressHot product with which this limited warranty is provided. Rheem warrants to customer that your product will be free from defects in materials and workmanship, under normal use and service from the date of installation, provided that the...
