Summary of Contents for Julian Bowen Limited CAPRI

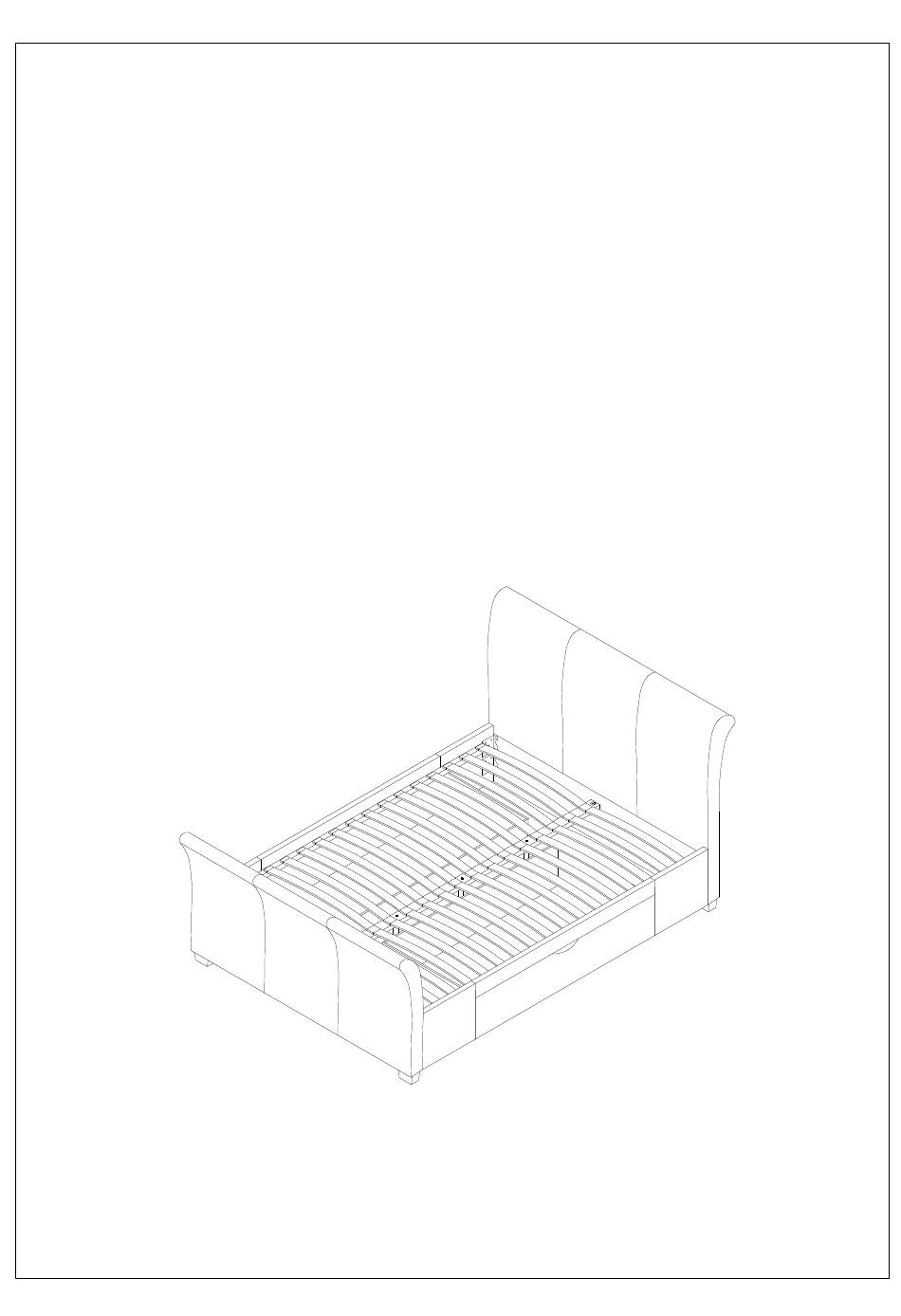

- Page 1 Julian Bowen Limited CAPRI FABRIC BED WITH DRAWERS 135CM Assembly Instructions VERSION: 160111...
- Page 3 Hardware Already inserted into Head & Foot Ends Bolt M8 X 40mm +Flat Washer Bolt Screw M5 x 50mm Adjustable Foot Allen Key (M5) M8 x 30mm Bolt - 12 X - 4 X - 1 X - 16 X - 3 X Bolt M8 X 45mm Screw M5 x 50mm...
- Page 5 STEP 1 A & B STEP 2 Please note that the Bolt (1) x 16 are prefixed into parts A & B STEP 3...
- Page 6 STEP 4 Slot into bracket behind fabric PULL STEP 5 ARROWS ON LABELS POINT TO EACH OTHER STEP 6 STEP 7 PUSH PUSH PUSH...
- Page 7 STEP 8 Drawer Assembly Important: Make sure when you fit the nuts that the hole is in the correct alignment. STEP 9 STEP 10 FOLLOW LINE ON BACK OF DRAWER FACE PANEL STEP 11...
- Page 8 When correctly adjusted the center support legs on this product should sit 5mm above the floor with the added weight of the mattress and bedding. If the bed is to be moved, carefully lift the product rather then dragging to ensure that the centre legs do not become twisted and buckle.
